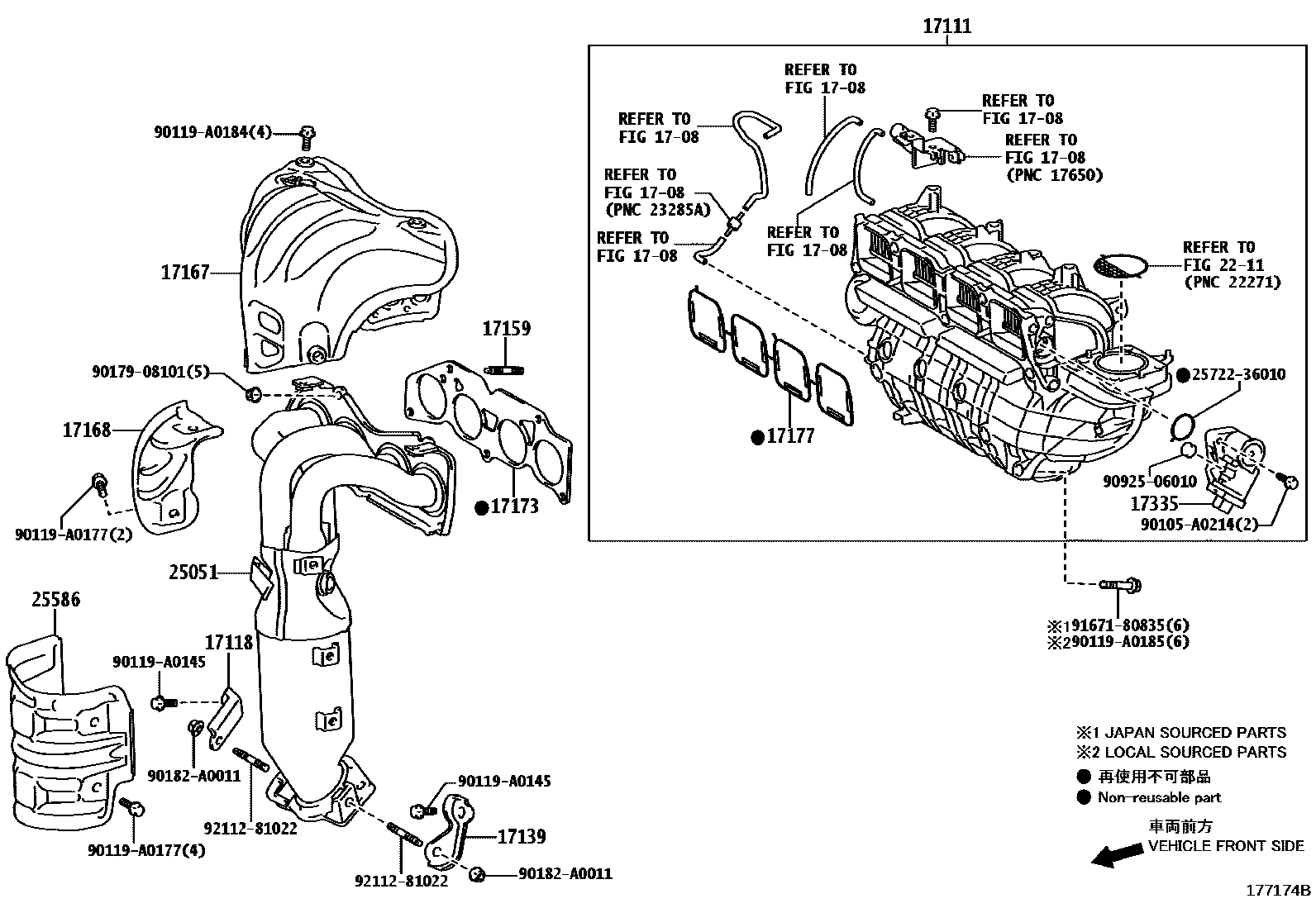

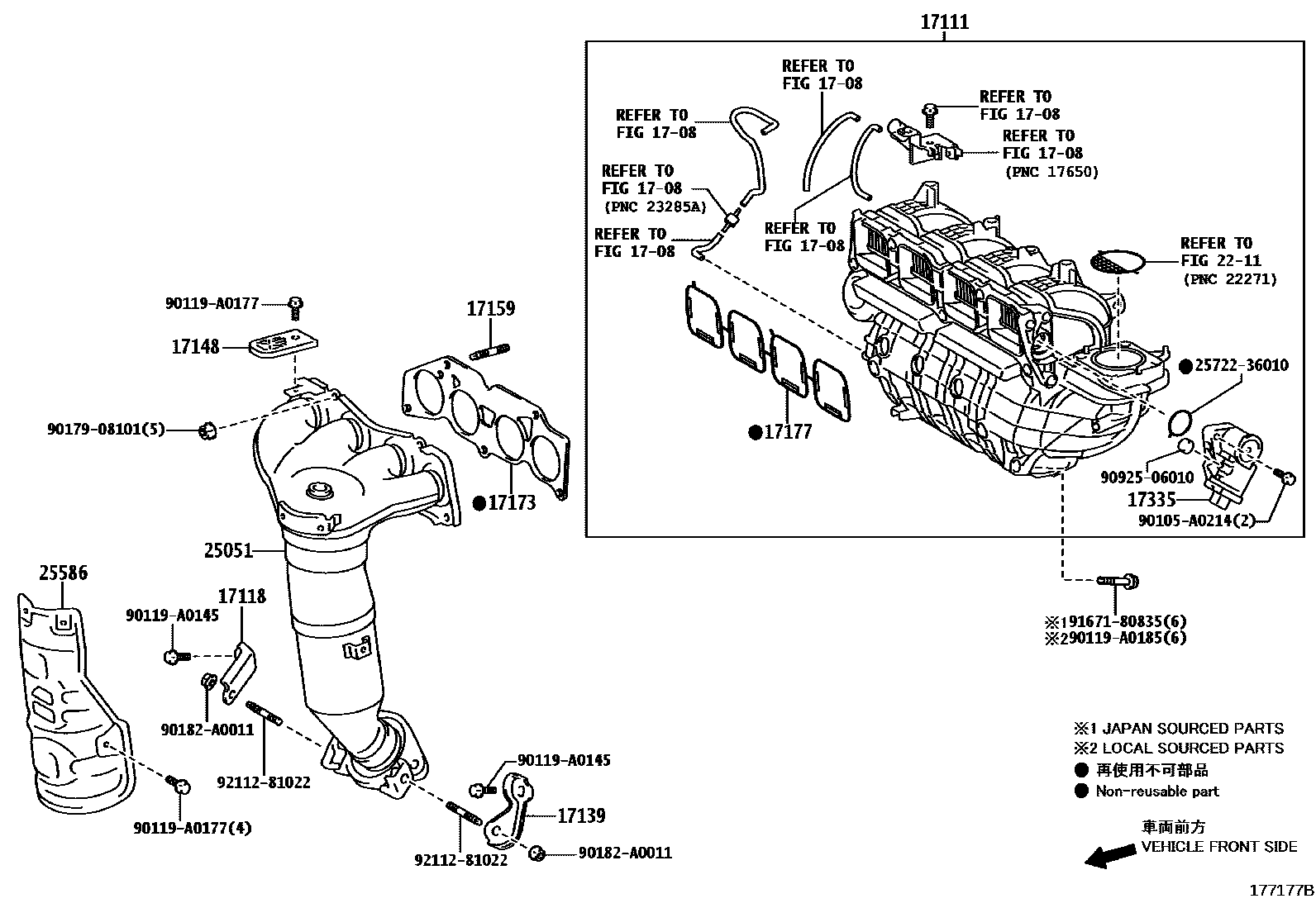

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-0V010 · 17120-0V020 |
| 17118 | Manifold stays | 17118-0V010 · 17118-36010 |
| 17139 | No. 2 manifold stay | 17139-0V050 · 17139-36020 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-36010 |
| 17159 | Studs (for manifold to cylinder head) | 90126-A0007 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0V030 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0V010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0V010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0V010 |
| 17335 | Intake control valve actuator | 17335-0V010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0V030 · 25051-0V040 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0V010 · 25586-0V020 |
