Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

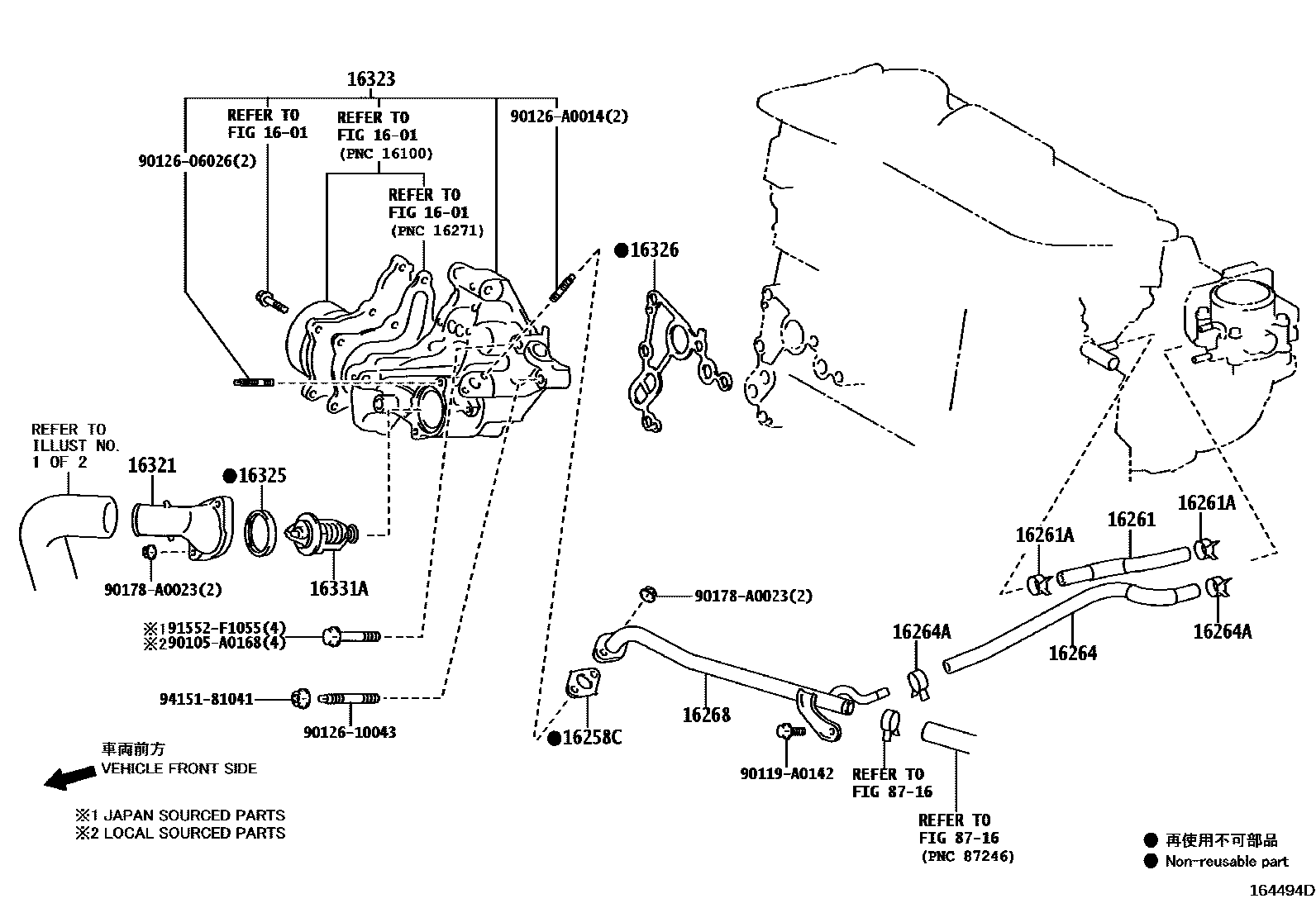

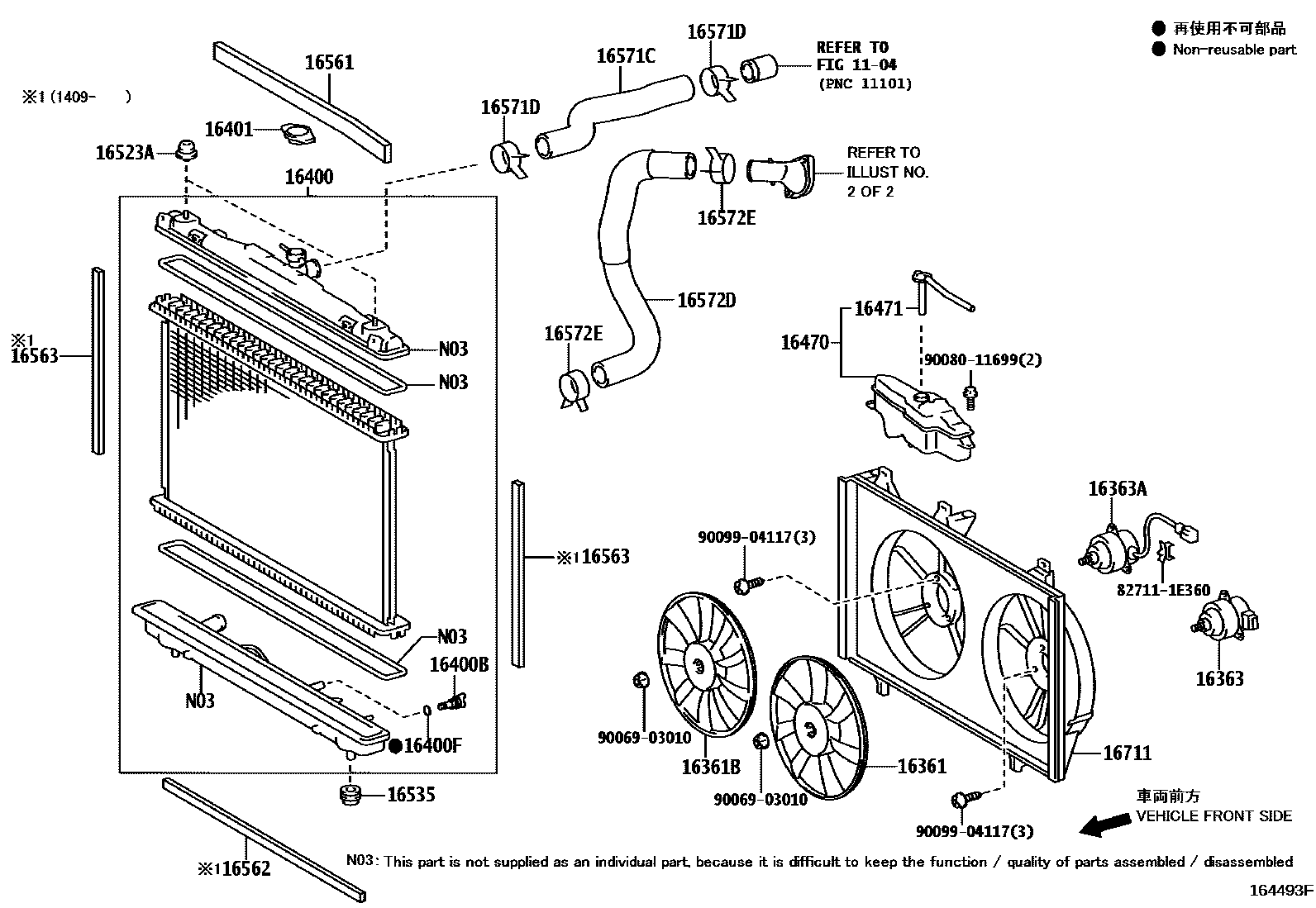

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258C | Gasket (for water bypass pipe) | 16258-0H010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0V020 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0V020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V070 · 16268-36050 |
| 16321 | water inlet | 16321-0V010 |
| 16323 | HOUSING, WATER INLET | 16032-0V011 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-36010 |
| 16331A | thermostat | 90916-03129 · 90916-A3003 |
| 16361 | Fan | 16361-0V090 · 16361-0V420 |
| 16361B | Fan No. 2 | 16361-0V100 · 16361-0V430 |
| 16363 | cooling fan motor | 16363-0H010 |
| 16363A | Cooling fan motor No. 2 | 16363-0V130 |
| 16400 | Radiator assembly | 16400-0V110 |
| 16400B | Radiator drain switch screw plug | 16417-0C180 · 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 · 16401-31520 |
| 16470 | Radiator reservoir assembly | 16470-0V020 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0V060 |
| 16523A | Radiator bracket cushion | 16523-AD010 |
| 16535 | Radiator lower support | 16535-36010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H010 · 16561-0V080 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0V040 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-0V070 |
| 16571C | Radiator hose No. 1 | 16571-0V070 |
| 16571D | No. 1 radiator hose clip | 90466-A0020 |
| 16572D | Radiator hose No. 2 | 16572-0V060 |
| 16572E | No. 2 radiator hose clip | 90466-A0020 |
| 16711 | fan cover | 16711-0V100 |
