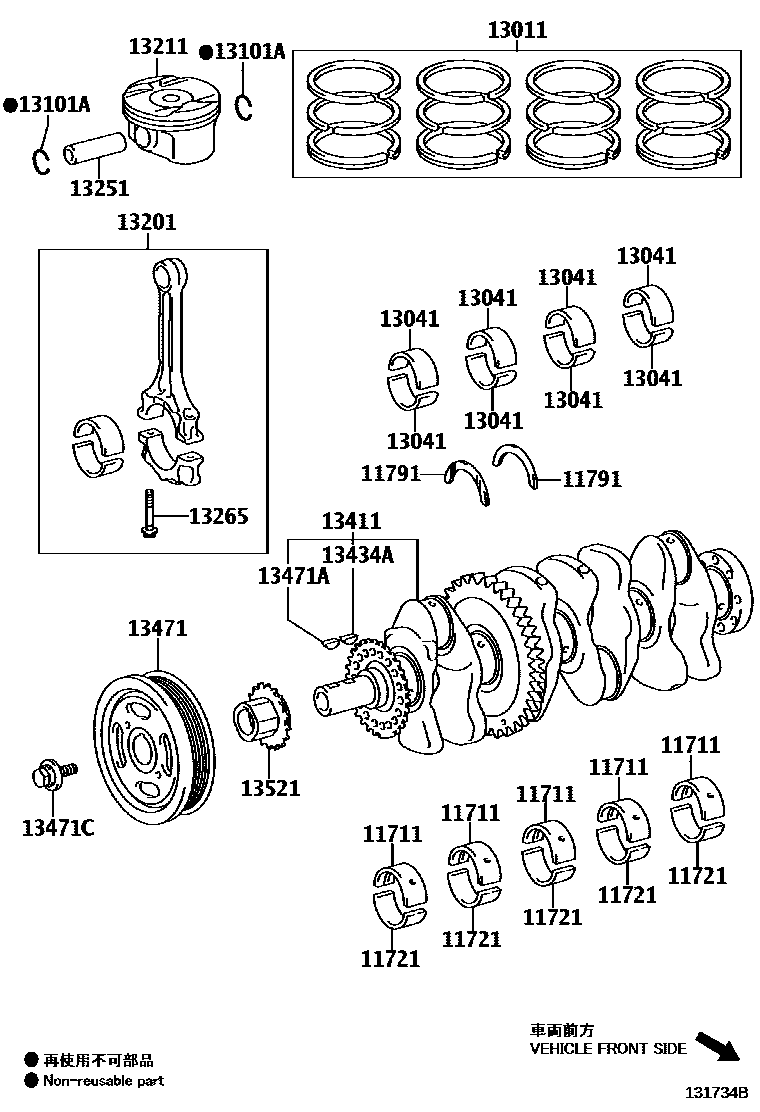

Toyota CAMRY Crankshaft & Piston — Figure 1301
Toyota CAMRY EPC diagram 1301, Crankshaft & Piston, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0V010 |
| 13011 | Piston ring assembly | 13011-0V010 |
| 13101A | Bore snap ring (for piston pin) | 90520-A0004 |
| 13265 | Connecting rod bolts | 13265-31020 |
| 13411 | crankshaft | 13401-0V010 · 13401-0V011 |
| 13434A | Key (for oil pump active spline) | 95161-30516 |
| 13471 | crankshaft pulley | 13470-0V020 · 13470-36010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16020 · 90119-A0265 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0V010 · 13521-36010 |
