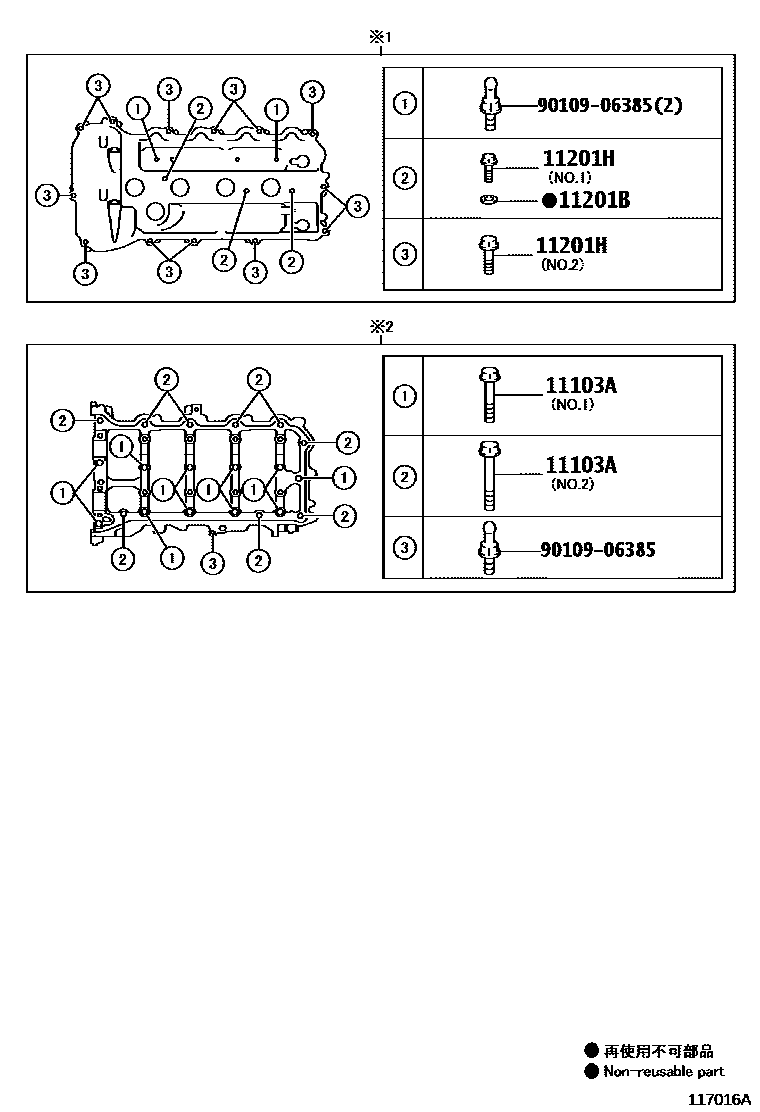

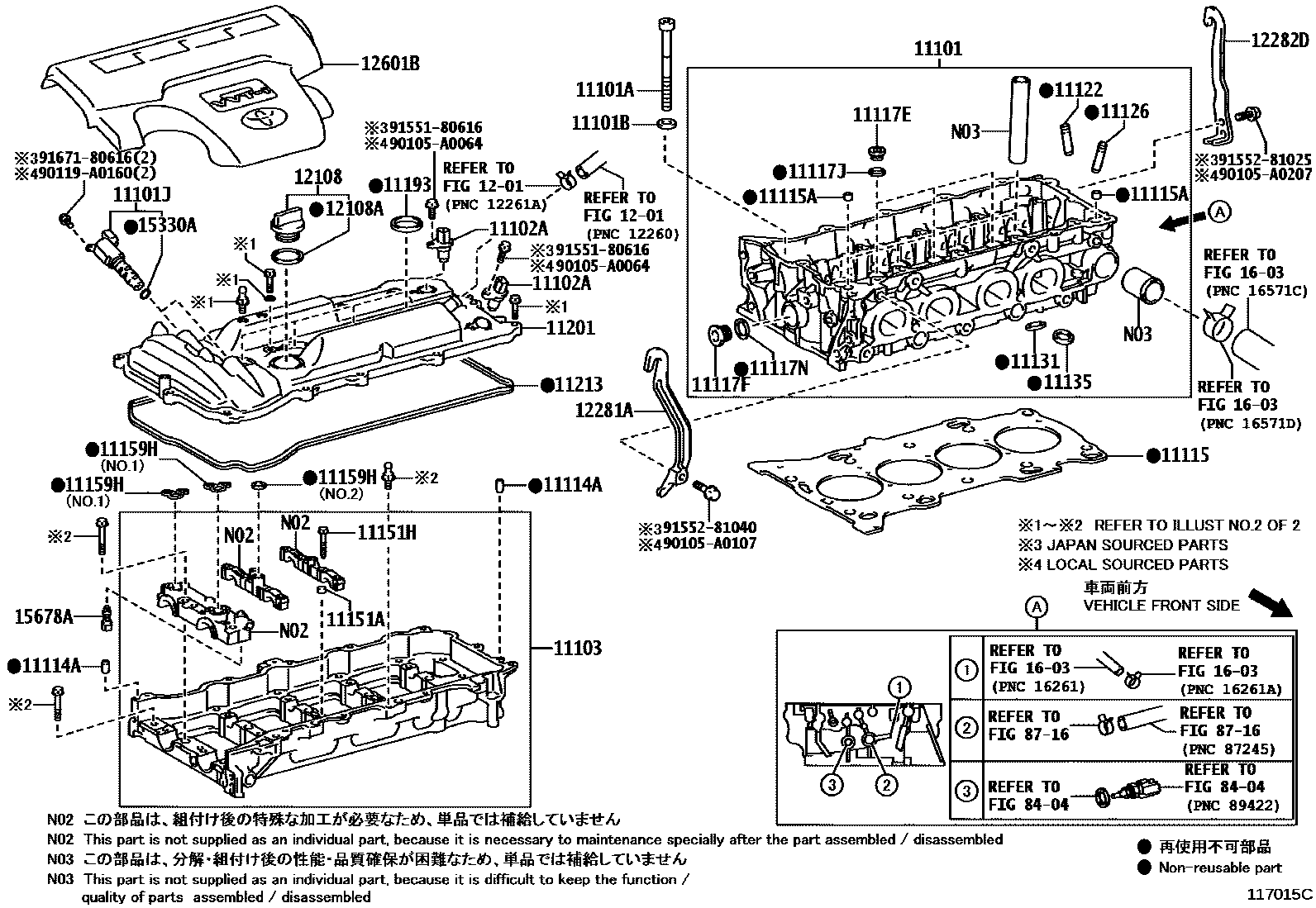

Toyota CAMRY Cylinder Head — Figure 1104
Toyota CAMRY EPC diagram 1104, Cylinder Head, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09345 · 11101-09346 · 11101-39776 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-A2009 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T010 |
| 11102A | Camshaft position sensor | 90919-05060 |
| 11103 | Camshaft housing sub-assembly | 11103-0V010 · 11103-0V011 · 11103-36011 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-A0149 · 90105-A0165 |
| 11114A | direct selling | 90250-06003 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0V010 · 11115-0V011 |
| 11115A | PIN, RING | 90253-12002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-20002 |
| 11117F | No. 2 headed straight thread plug | 90341-24011 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-20004 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-24246 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31090 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-31040 · 11127-31040 |
| 11131 | intake valve seat | 11131-0V010 · 11132-0V010 |
| 11135 | Exhaust valve seat | 11135-0V010 · 11136-0V010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-A0302 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0V011 · 90430-A0001 |
| 11193 | spark plug bushing gasket | 11193-0V010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0V010 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 |
| 11201H | Bolts (for cylinder head cover) | 90105-A0103 · 90105-A0214 · 91551-80625 · 91551-80635 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-36020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0P021 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43025 |
| 12281A | Engine No. 1 hanger | 12281-36020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-36021 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0V050 · 12601-36060 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90068-14030 |
| 15678A | Oil control valve filter | 15678-0V010 · 15678-37010 |
