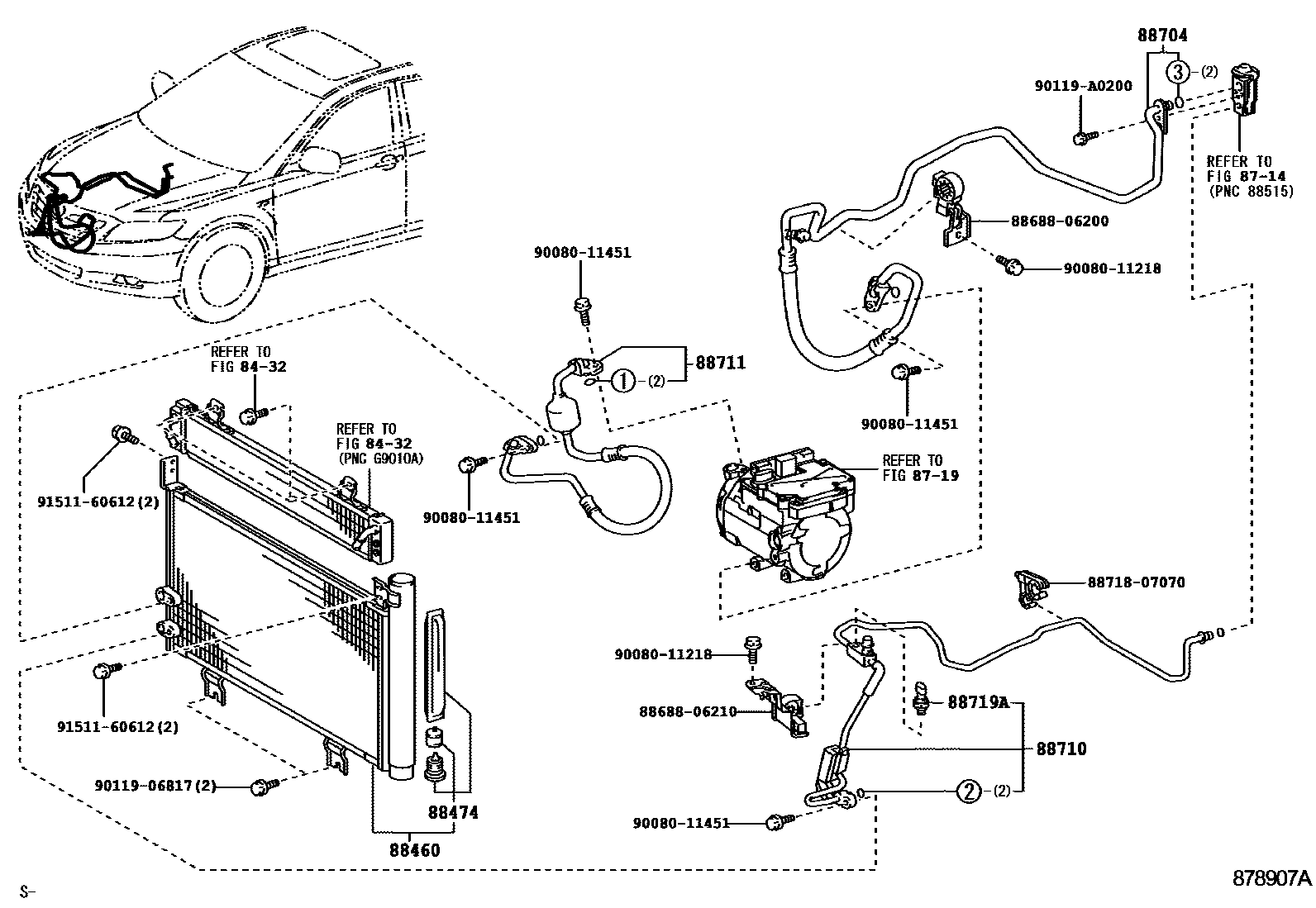

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-33090 |
| 88474 | cooler dryer | 88474-47020 |
| 88704 | Oil suction hose sub-assembly | 88704-06400 |
| 88710 | Air conditioning pipe assembly | 88710-06280 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06350 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
