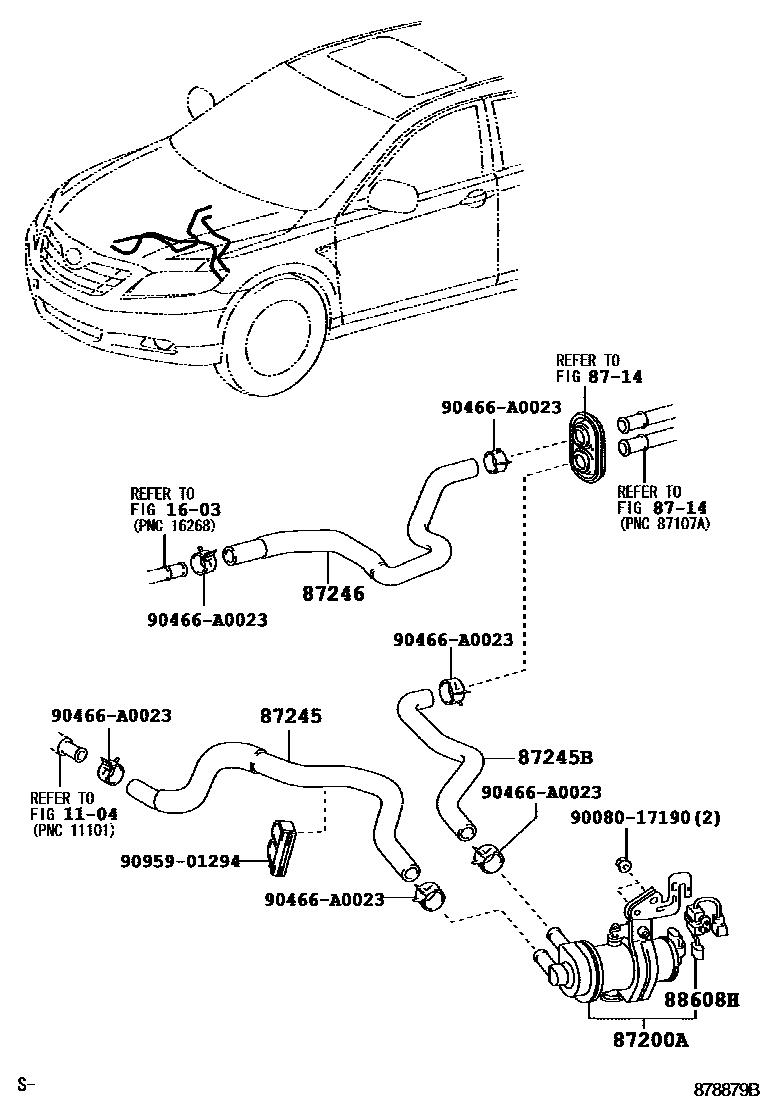

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87200A | Water pump assembly (for heater) | 87200-33010 |
| 87245 | Heater water inlet hose | 87245-06640 |
| 87245B | Heater water inlet hose B | 87245-06650 |
| 87246 | Heater outlet hose | 87245-06660 |
| 88608H | Air indicator No. 2 wiring harness sub-assembly | 88608-33010 |
