Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

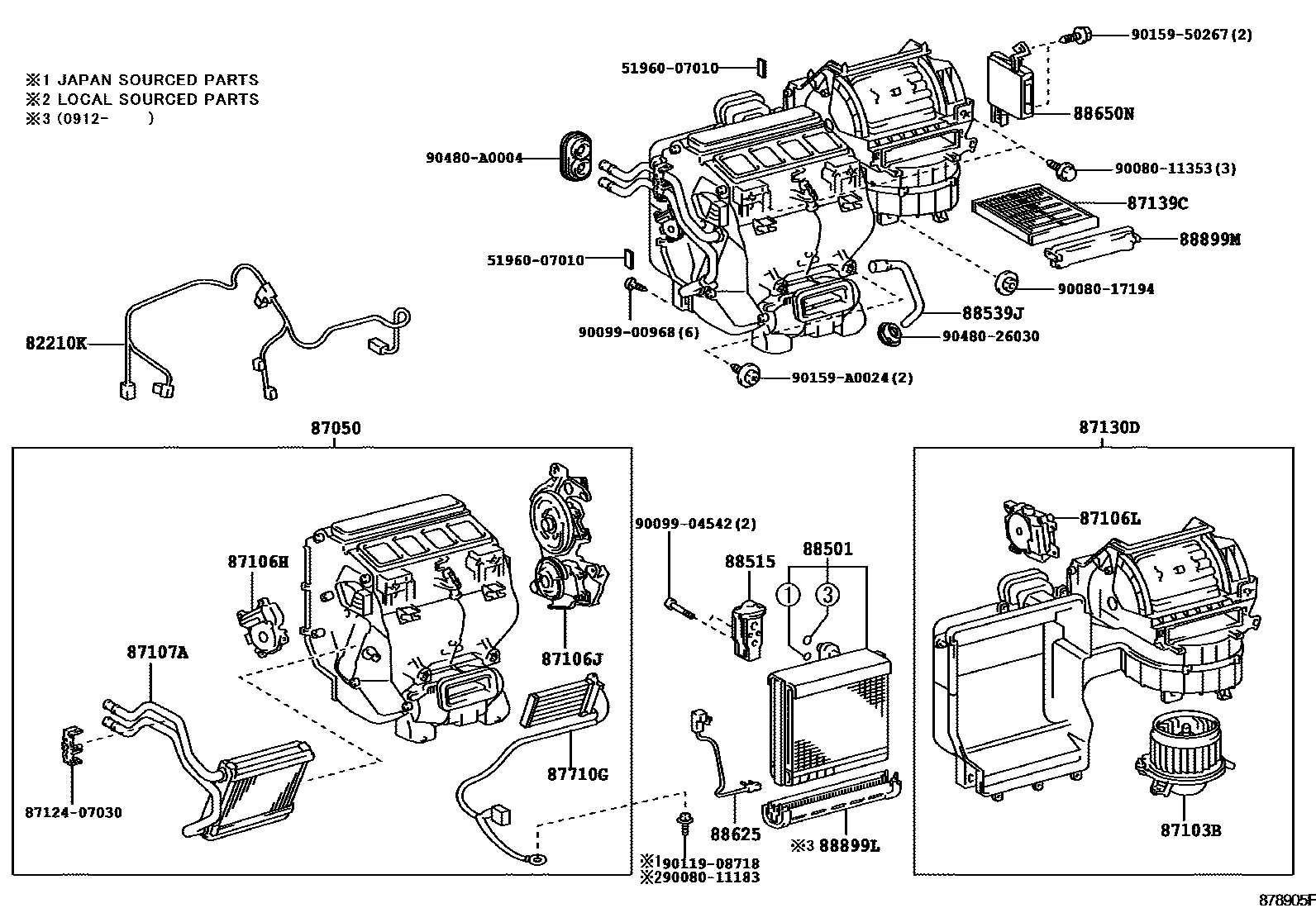

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06121 · 82212-07010 |
| 87050 | Air conditioning radiator assembly | 87050-06520 · 87050-06521 |
| 87103B | Blower motor sub-assembly with fan | 87103-07040 · 87103-0E040 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-07120 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06250 · 87106-07110 |
| 87106L | Damper servo mechanism sub-assembly | 87106-07140 |
| 87107A | Heater radiator device sub-assembly | 87107-07030 |
| 87130D | Blower assembly | 87130-07071 |
| 87139C | air purification filter | 87139-07010 · 87139-50060 |
| 87710G | Rapid heater assembly | 87710-06010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06102 · 88501-06103 · 88501-28410 · 88501-48301 |
| 88515 | Cooler expansion valve | 88515-07030 |
| 88539J | Cooler drain hose | 88539-06121 |
| 88625 | Cooler No. 1 Thermistor | 88620-06020 · 88625-41030 |
| 88650N | Air conditioning amplifier assembly | 88650-06260 · 88650-06261 · 88650-06350 |
| 88899L | Cooling unit parts | 88899-06100 |
| 88899M | cover (for air cleaner) | 88899-07010 |
