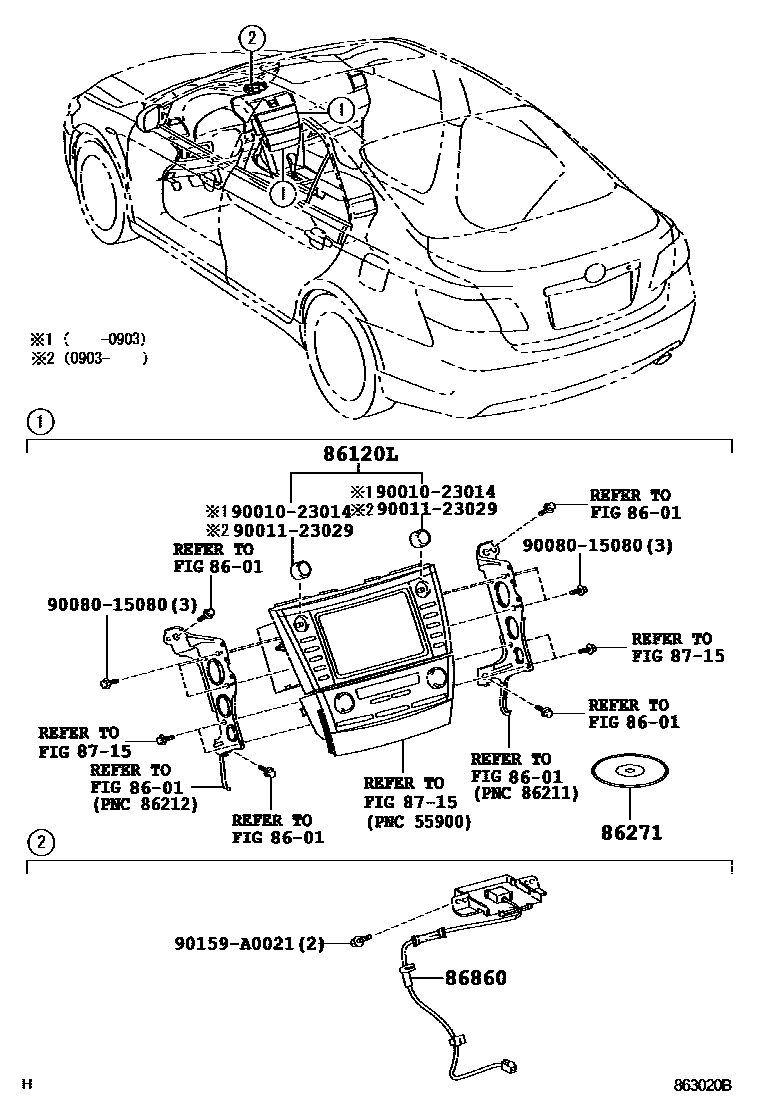

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-06460 · 86120-06510 |
| 86271 | CD | 86271-53021 · 86271-53022 · 86271-53023 · 86271-73010 · 86271-73011 · 86271-73012 |
| 86860 | Navigation antenna assembly | 86860-33110 |
