Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

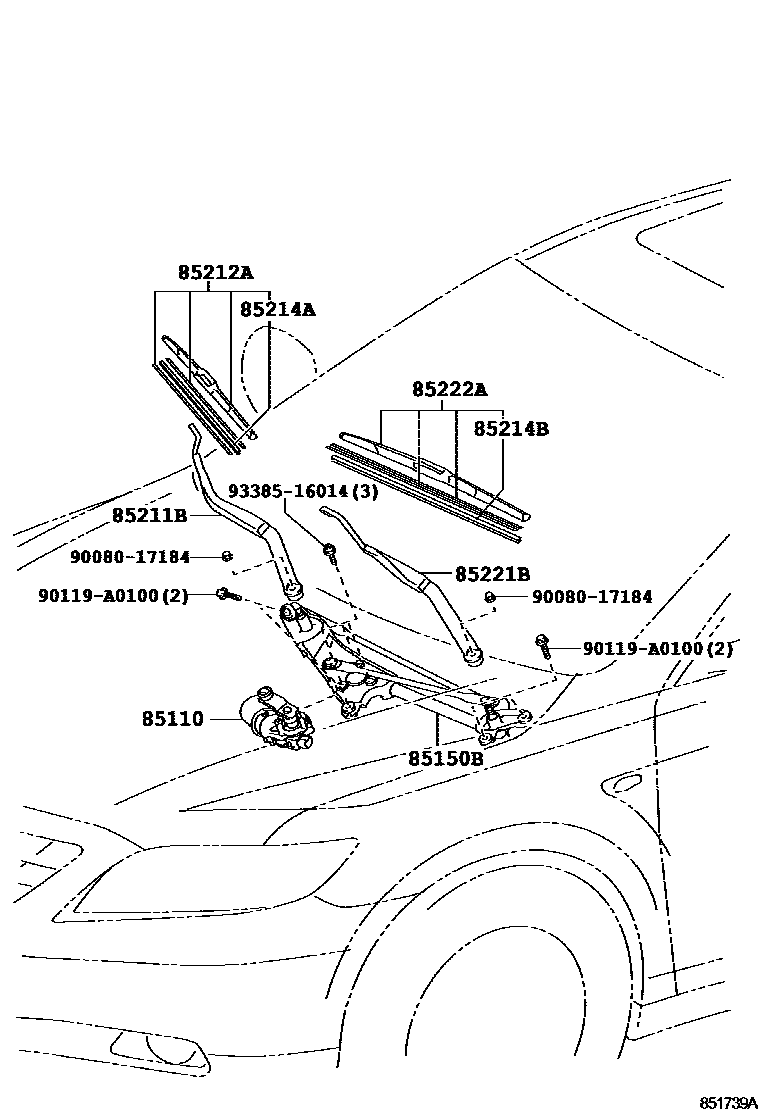

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06060 |
| 85150B | Wiper connecting rod assembly | 85150-06060 |
| 85211B | Right front wiper arm | 85211-06050 |
| 85212A | Right front wiper blade | 85212-06110 |
| 85214A | Right wiper rubber strip | 85214-06130 |
| 85214B | Left wiper rubber strip | 85214-06140 |
| 85221B | Left front wiper arm | 85221-06050 |
| 85222A | Left front wiper blade | 85222-06110 |
