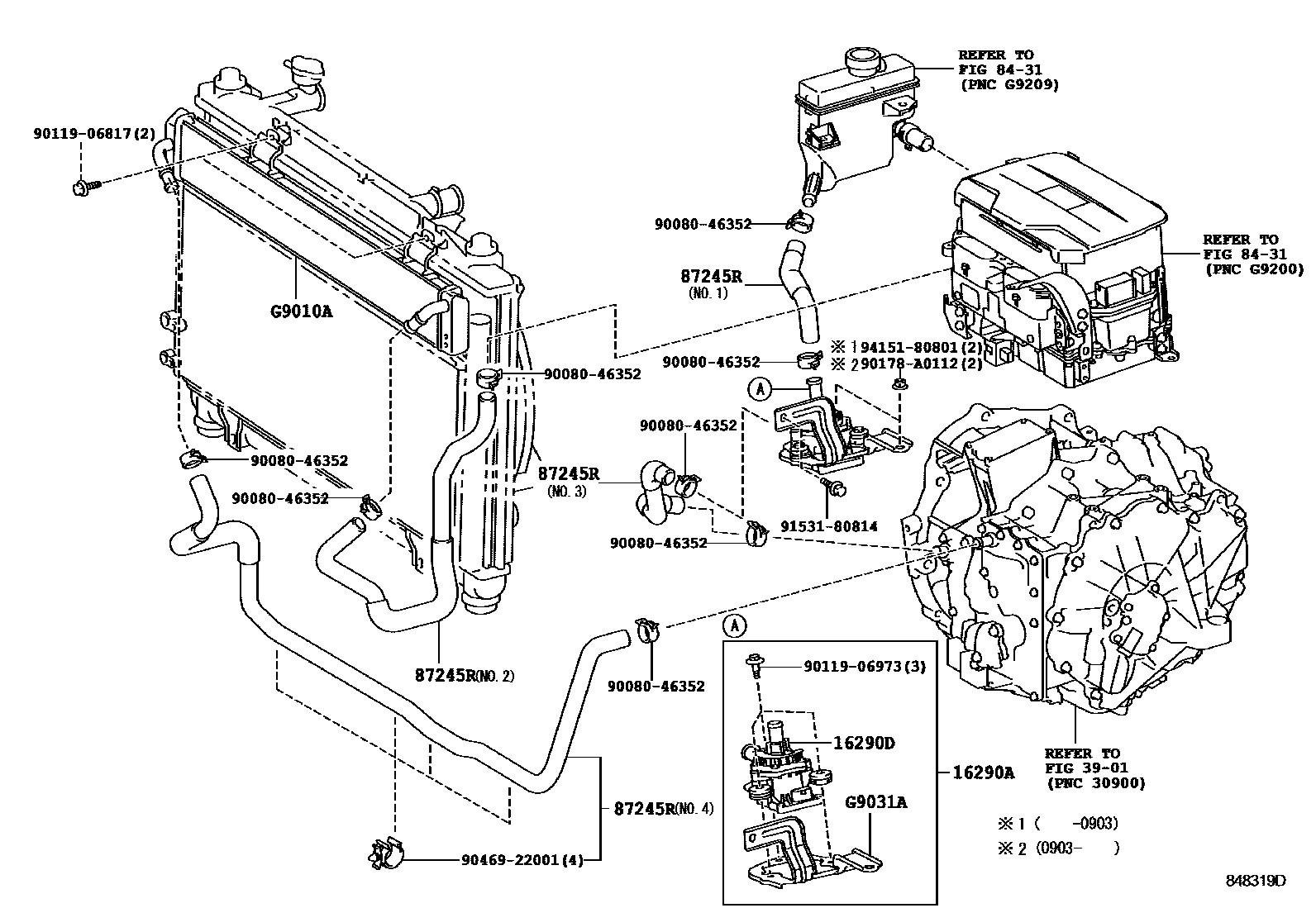

Toyota CAMRY 逆变器冷却系统 — Figure 8432
Toyota CAMRY EPC diagram 8432, 逆变器冷却系统, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16290A | Water pump assembly with motor and bracket | G9020-33010 |
| 16290D | Water pump assembly with motor | G9040-33010 |
| 87245R | water hose | G9225-33020 · G9225-33030 · G9225-33040 · G9225-33050 |
| G9010A | Radiator assembly | G9010-33010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9031-33010 |
