Toyota CAMRY 空气囊 — Figure 8421

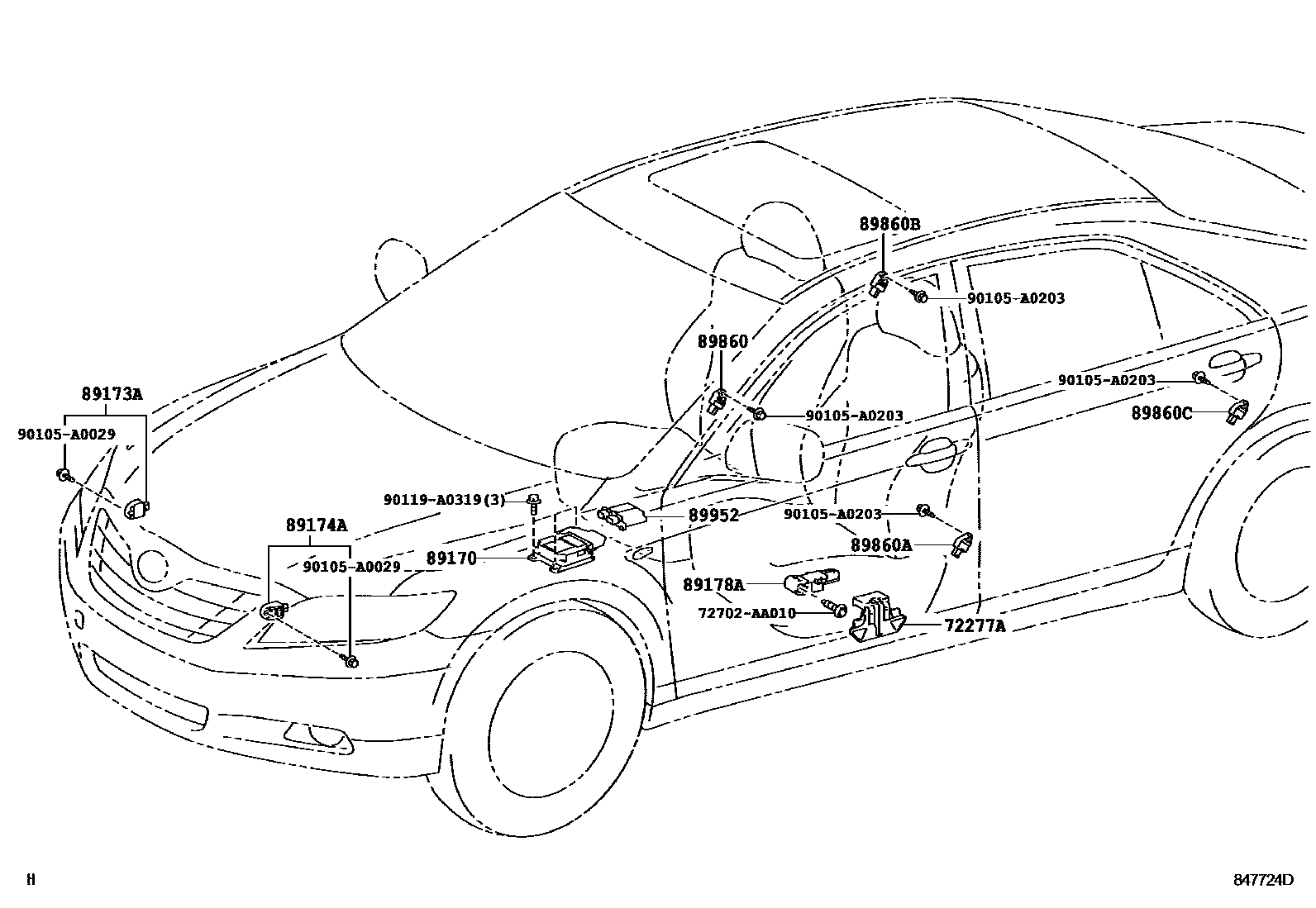

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-06020 |
| 89170 | air bag sensor assembly | 89170-06200 · 89170-06201 · 89170-06380 |
| 89173A | Right front air bag sensor | 89173-09400 · 89173-09650 |
| 89174A | Left front air bag sensor | 89173-09400 · 89173-09650 |
| 89178A | Seat position air bag sensor | 89178-06040 |
| 89860 | Right side airbag sensor assembly | 89831-06010 · 89831-06040 |
| 89860A | Left side air bag sensor assembly | 89831-06010 · 89831-06040 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-06020 · 89831-06050 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-06020 · 89831-06050 |
| 89952 | Occupant detection ECU | 89952-35011 |
