Toyota CAMRY 遥控门锁 — Figure 8420

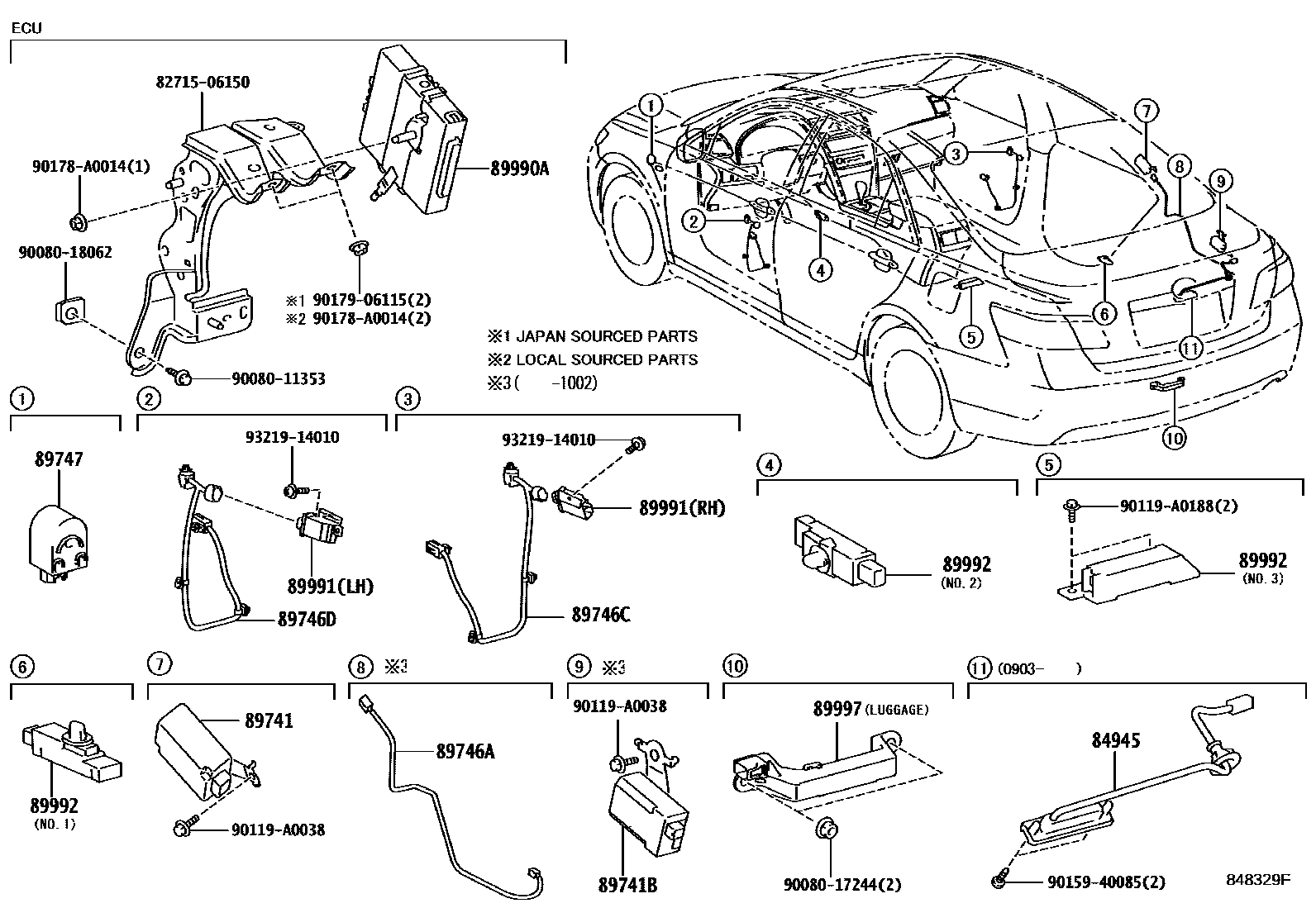

Toyota CAMRY EPC diagram 8420, 遥控门锁, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84905-33010 |
| 89741 | door control receiver | 89740-06030 |
| 89741B | Door control receiver No. 2 | 89740-07020 |
| 89746A | Electronic key wiring harness | 89746-06010 |
| 89746C | No. 1 electronic key wiring harness | 89746-06020 |
| 89746D | No. 2 electronic key wiring harness | 89746-06030 |
| 89747 | Remote door lock buzzer | 89747-AC010 |
| 89990A | Smart key ECU assembly | 89990-06030 · 89990-06031 · 89990-06050 |
| 89991 | Door electronic key oscillator | 89991-06010 · 89991-06020 |
| 89992 | Car electronic key oscillator | 89992-06020 · 89992-06040 · 89992-07020 |
| 89997 | electronic key antenna | 89997-30070 · 89997-41010 |
