Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 8 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02028 |
| 28371 | No. 1 ignition relay | 90080-87024 · 90987-A2002 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 81980 | Turn signal flasher relay assembly | 81980-06020 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90080-82050 · 90080-82051 · 90080-82052 · 90080-82053 · 90080-82054 · 90080-82055 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-07050 |
| 82620B | Fuse box assembly | 82620-33030 |
| 82620D | Fuse box assembly | 82620-33040 |
| 82660B | Relay assembly | 82660-07010 |
| 82660F | Relay assembly | 82660-33010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-06090 |
| 82662B | No. 2 relay box upper cover | 82662-06100 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82663A | No. 2 relay box lower cover | 82663-33090 |
| 82672A | Junction box cover | 82672-33320 |
| 82673A | Junction box bracket | 82673-06010 |
| 82675B | Terminal block | 82675-44010 |
| 82715 | Wire harness clamp bracket | 82715-33C20 |
| 82720 | Engine room junction box assembly | 82720-06090 · 82720-06091 |

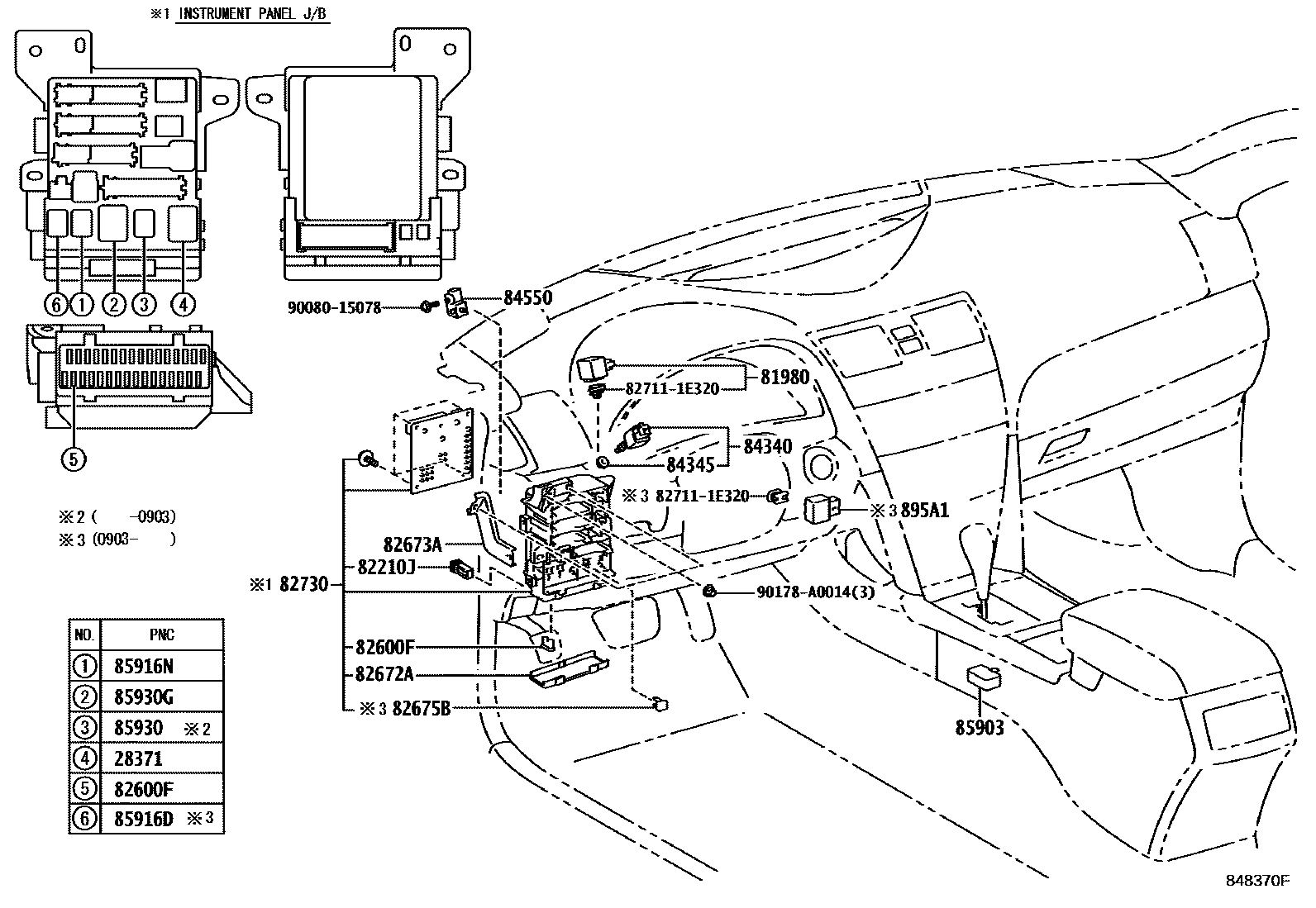

| 82730 | Instrument panel junction box assembly | 82730-06610 · 82730-06611 · 82730-06620 · 82730-06621 · 82730-06730 · 82730-06740 |

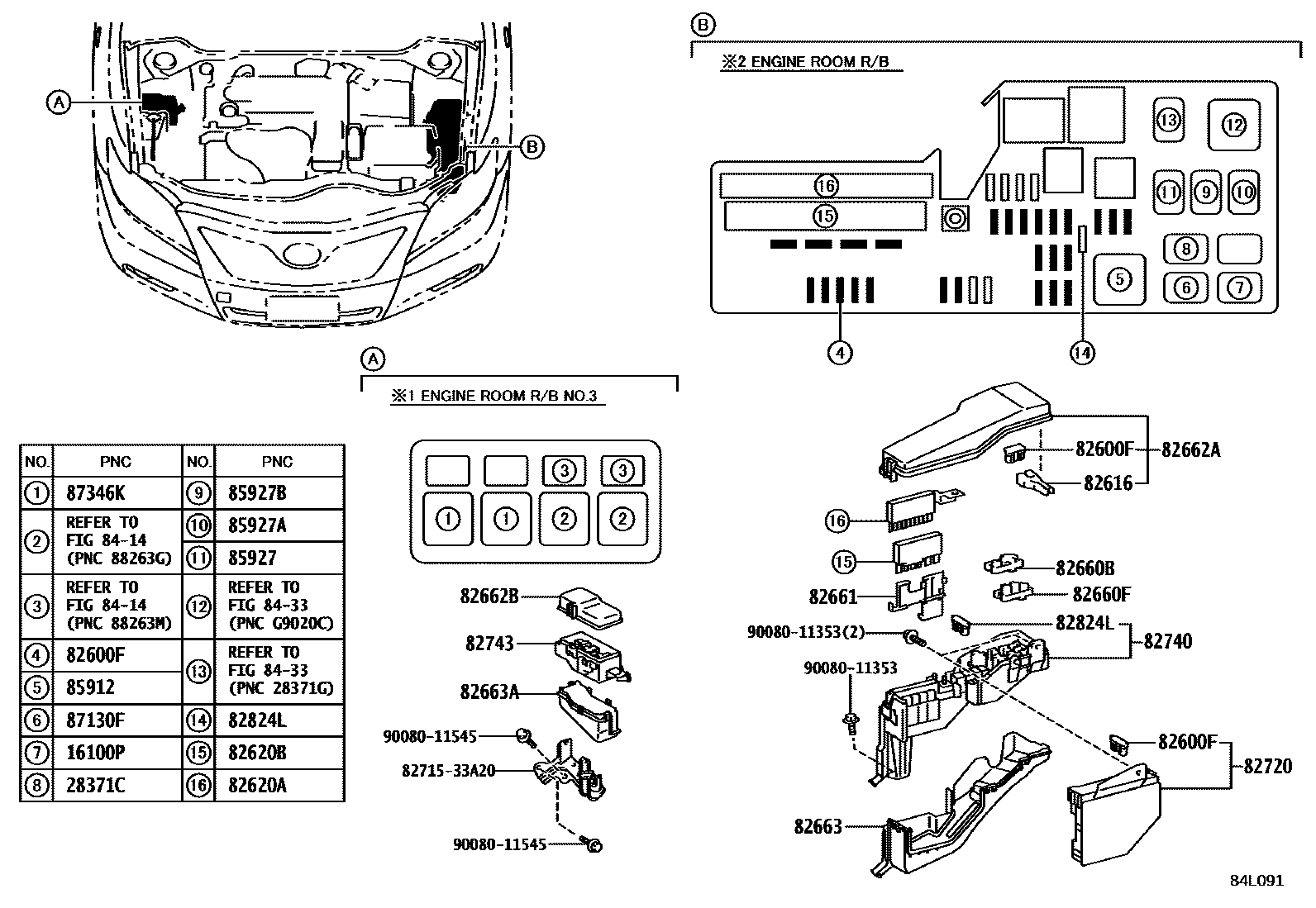

| 82740 | Engine room relay box assembly | 82740-33010 |
| 82743 | Engine room No. 3 relay box | 82743-33030 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-06090 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 · 83530-AA011 |

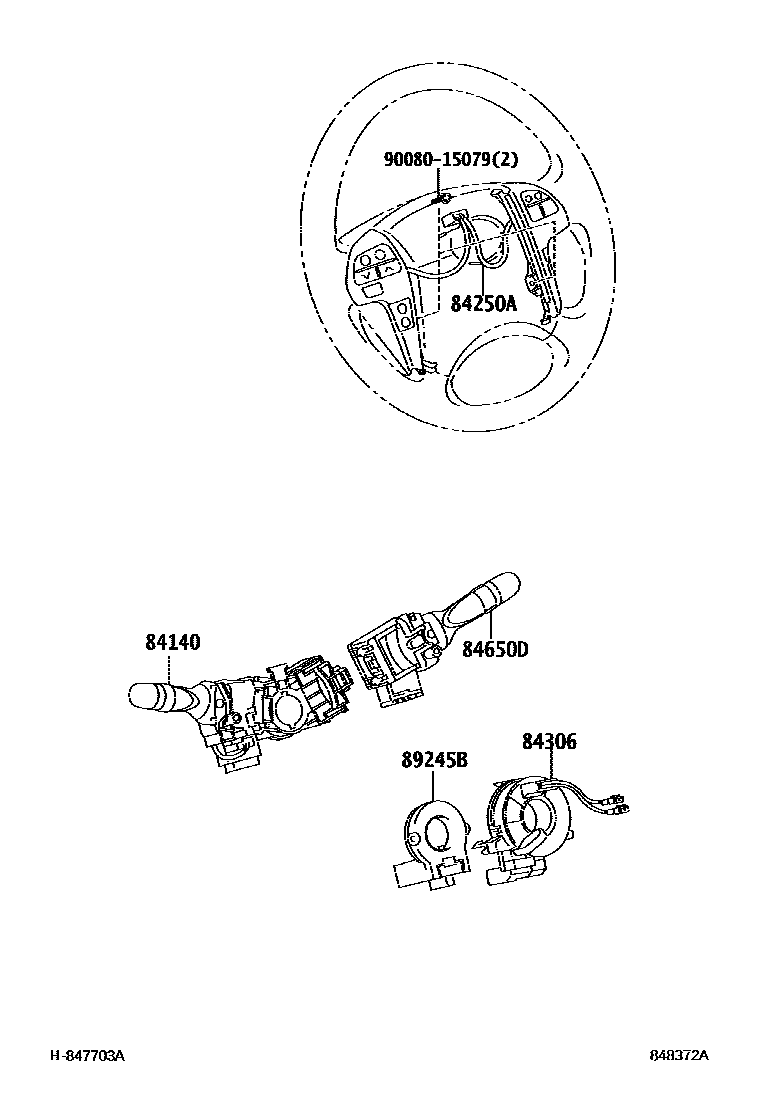

| 84140 | Headlight dimmer switch assembly | 84140-06391 · 84140-06400 · 84140-06401 · 84140-06411 · 84140-06420 · 84140-06421 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06040 · 84250-06250 |
| 84306 | Spiral cable sub-assembly | 84306-06150 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84550 | Parking brake switch assembly | 84550-04030 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02610 · 84652-04141 |

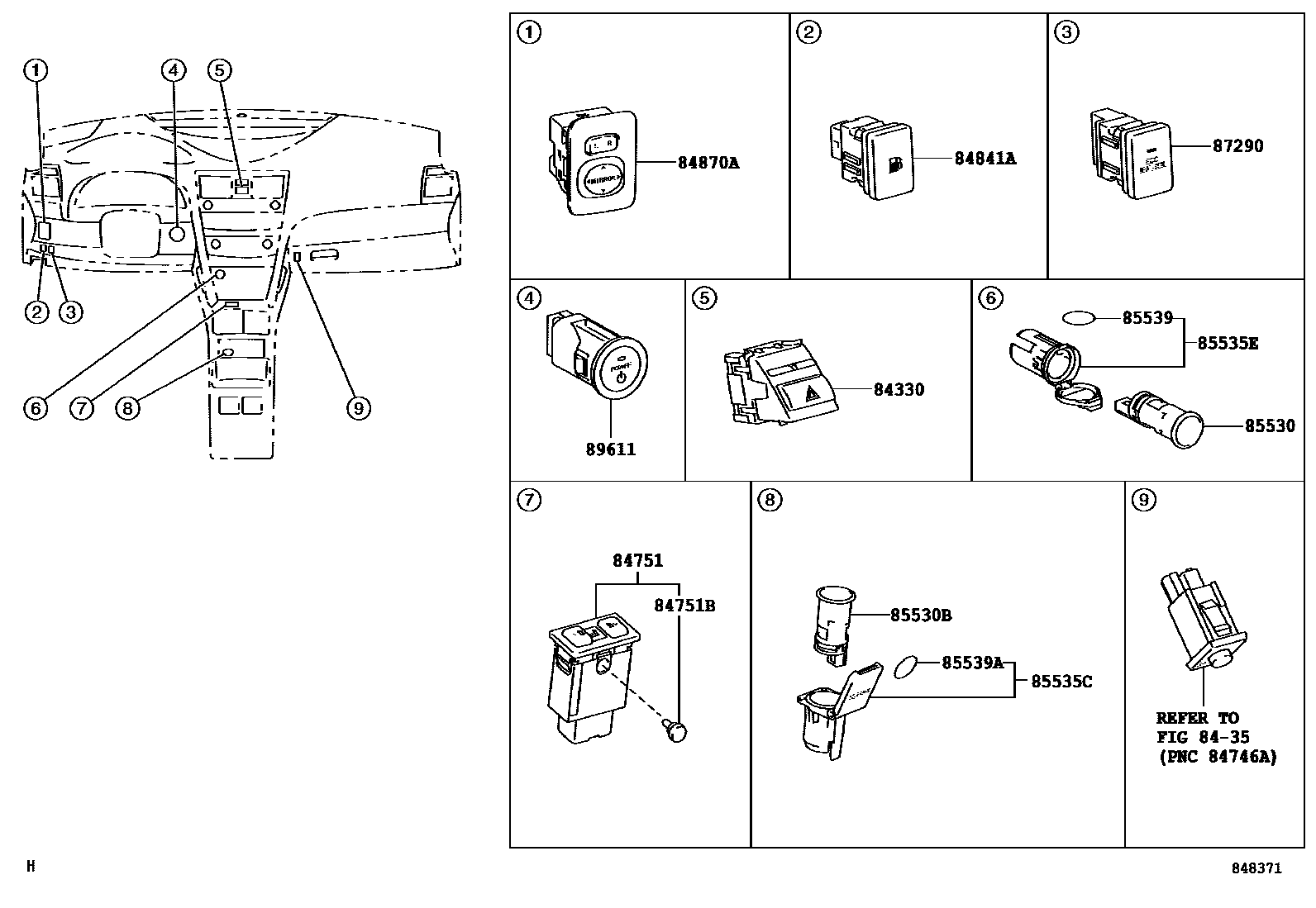

| 84751 | Seat heater switch | 84751-06010 |
| 84751B | Seat heater switch light bulb | 90011-01002 |

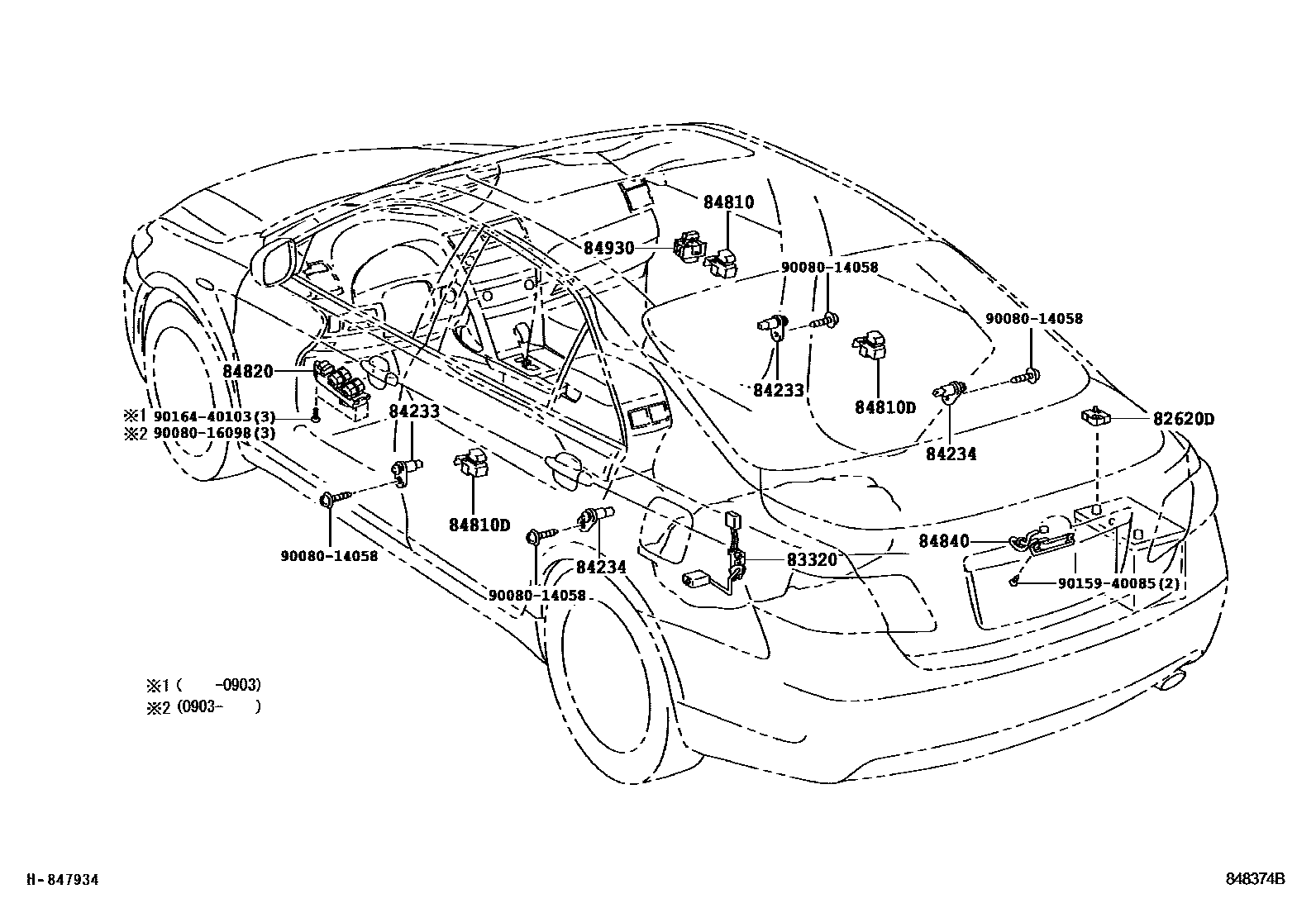

| 84810 | Electric window lift switch assembly | 84810-06030 · 84810-06090 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 · 84810-06090 |
| 84820 | Electric window lift main switch assembly | 84040-06030 · 84820-06071 |
| 84840 | Trunk door opening switch assembly | 84840-20010 · 84840-33090 |
| 84841A | Fuel filler cap opener switch | 84841-06010 |

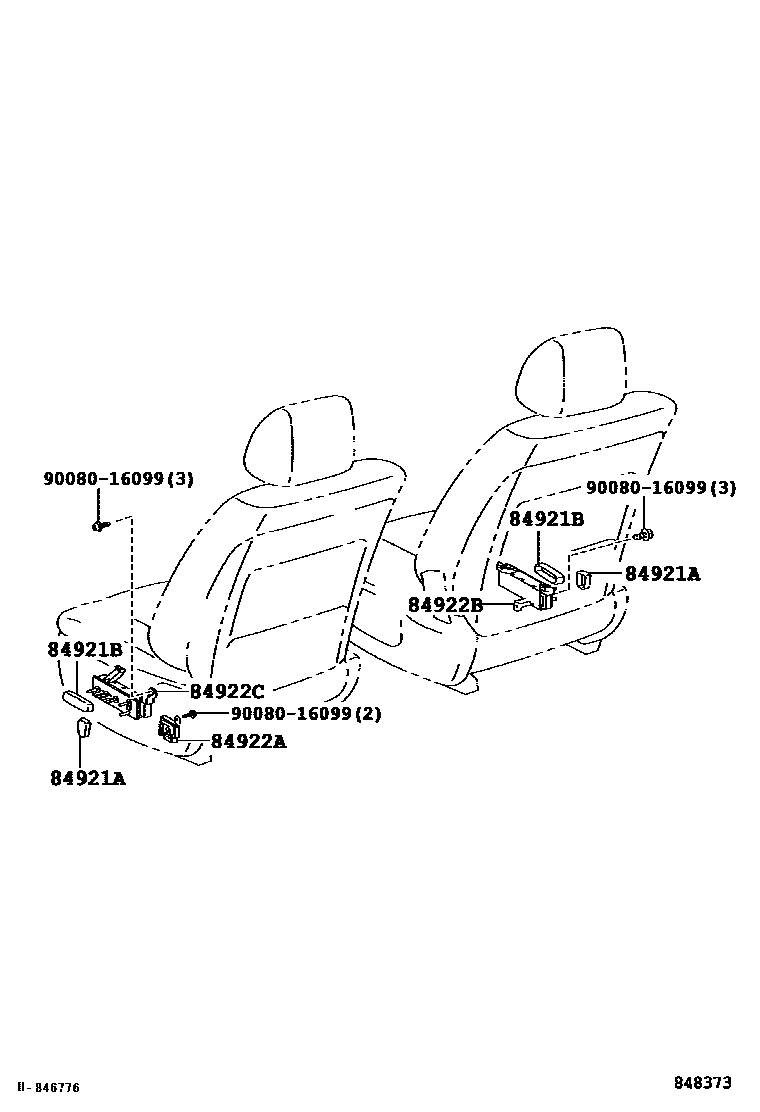

| 84922B | Front right electric seat switch | 84922-0E010 |
| 84922C | Front left electric seat switch | 84922-AE010 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530B | No. 1 rear power socket assembly | 85530-06030 |
| 85535C | Rear power outlet cover | 85535-06020 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06020 |
| 85912 | defogger relay | 90080-87025 |
| 85916D | fog light relay | 90080-87026 |
| 85916N | Tail light relay | 90080-87026 |
| 85927 | cooling fan relay | 90080-87026 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90084-98032 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 · 90987-02027 |
| 85930 | Electric window relay assembly | 90080-87026 |
| 85930G | ACC relay | 90080-87024 · 90987-A2002 |
| 87130F | No. 1 battery blower relay | 90080-87026 |
| 87290 | Heater switch assembly | 87290-06030 |
| 87346K | PTC heater relay | 90080-87024 |
| 89245B | steering sensor | 89245-06040 |

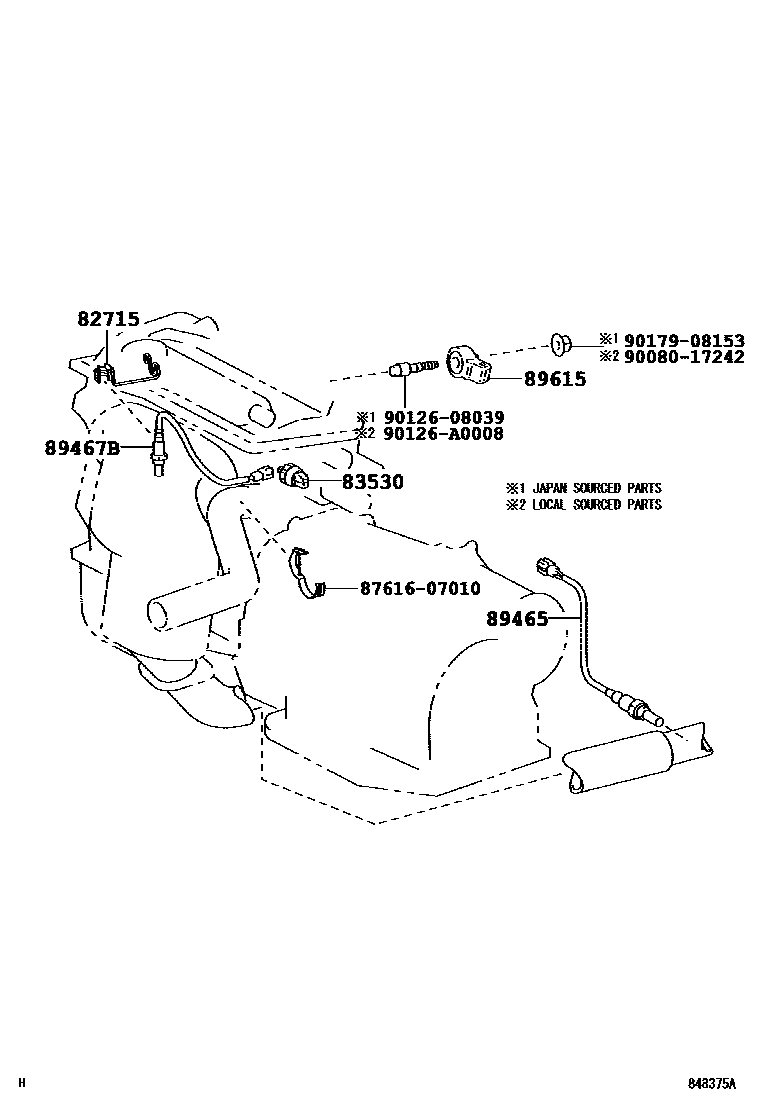

| 89465 | oxygen sensor | 89465-06150 |
| 89467B | air fuel ratio sensor | 89467-06060 · 89467-06110 |
| 895A1 | brake light control relay | 895A1-12010 |
| 89611 | push button start switch | 89611-06020 · 89611-06021 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |

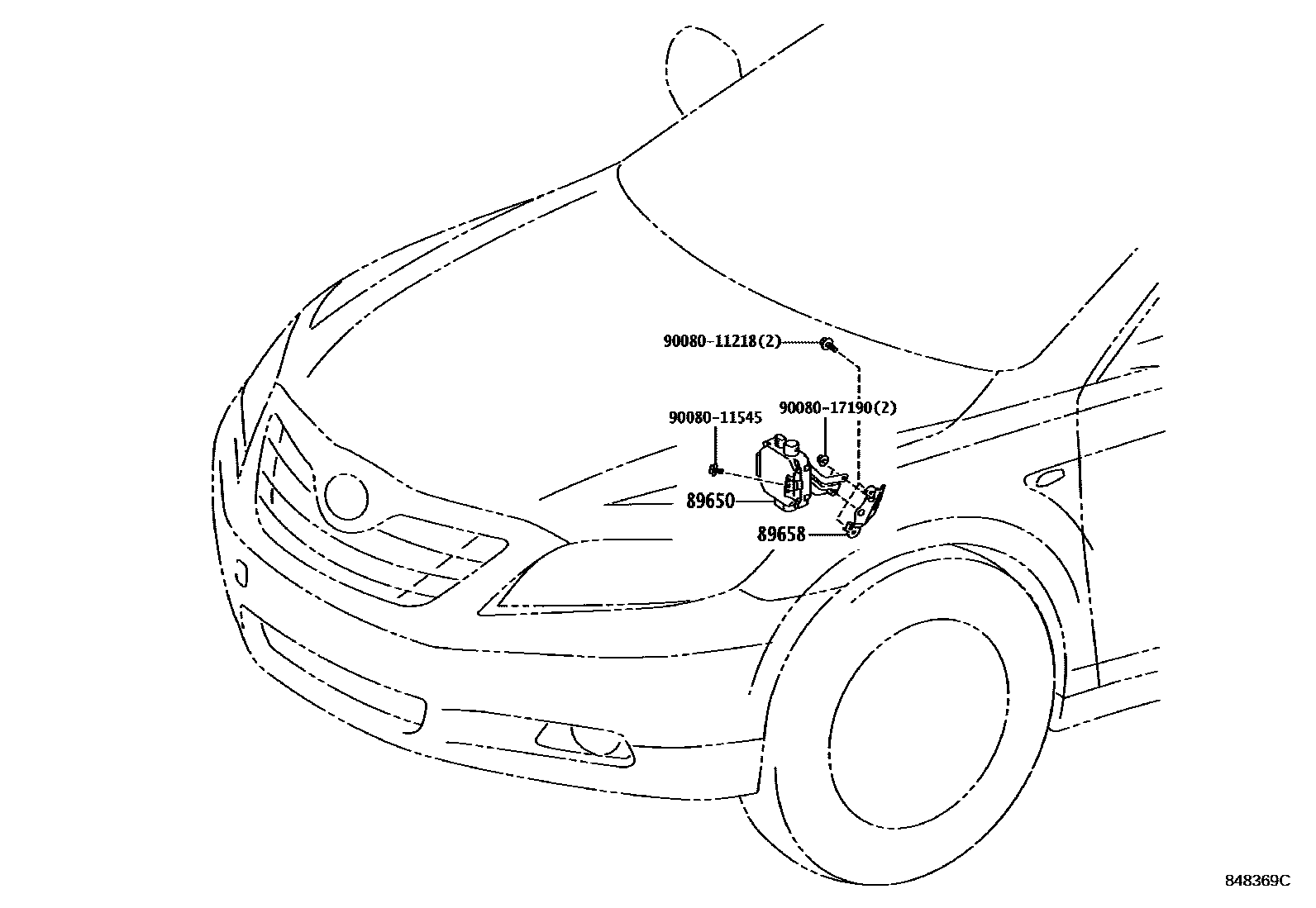

| 89650 | Power steering ECU assembly | 89650-33061 · 89650-33070 |
| 89658 | Power steering ECU bracket | 89658-33010 |
