Toyota CAMRY 线束和卡夹 — Figure 8202

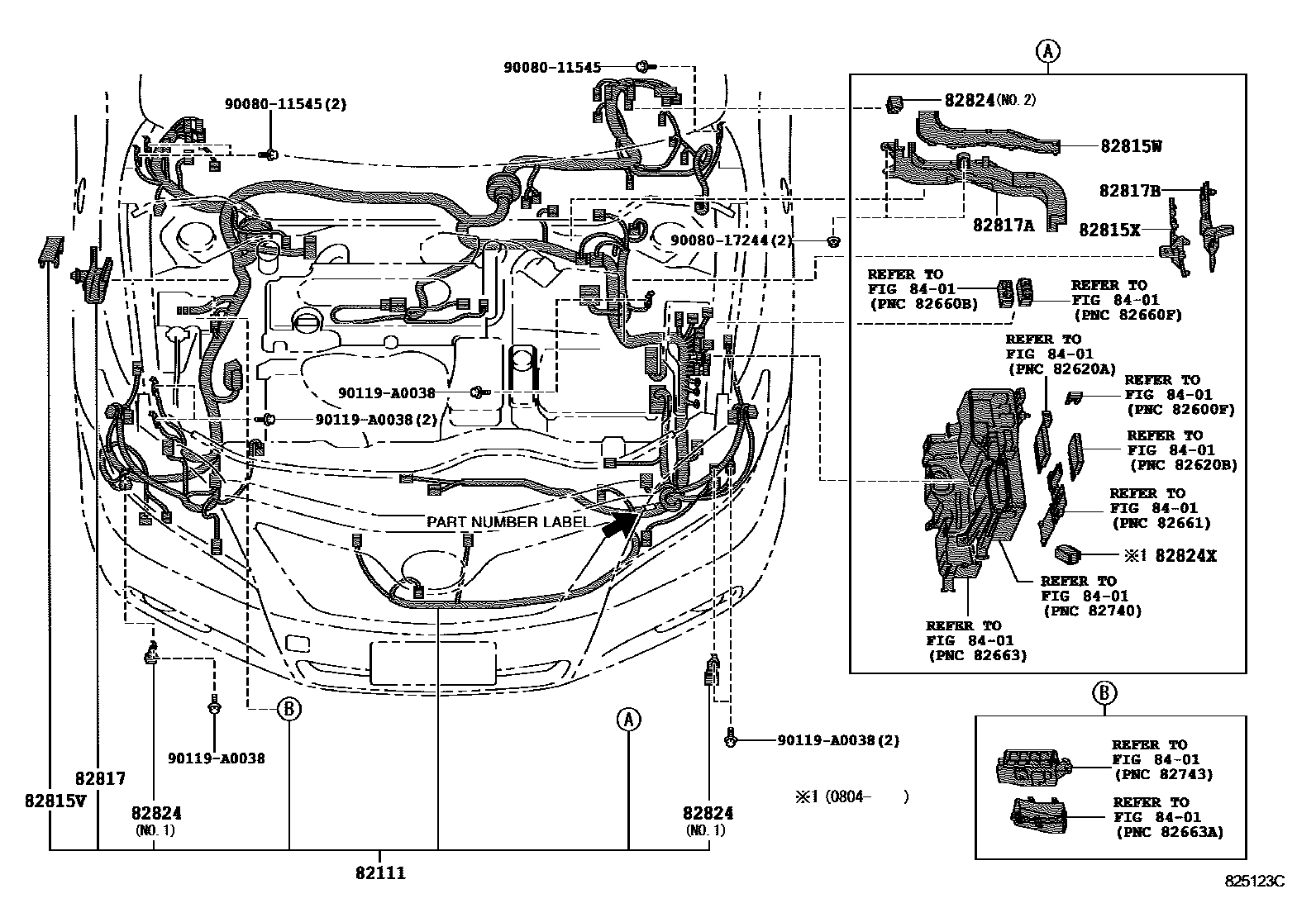

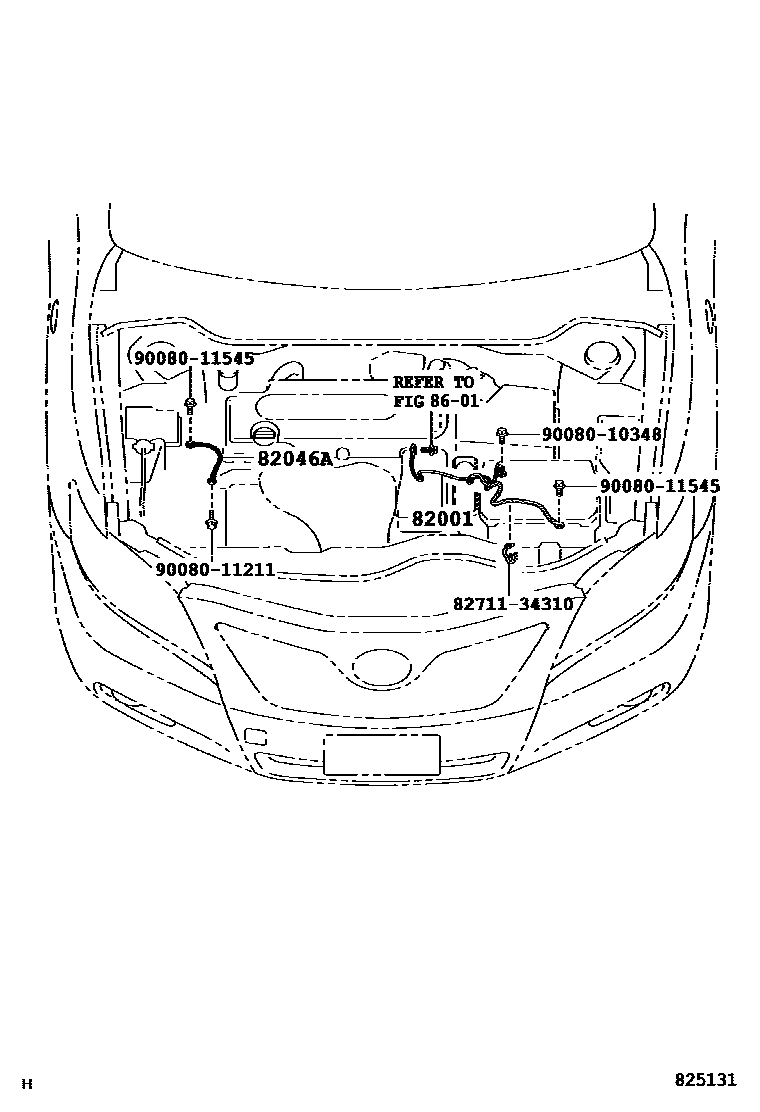

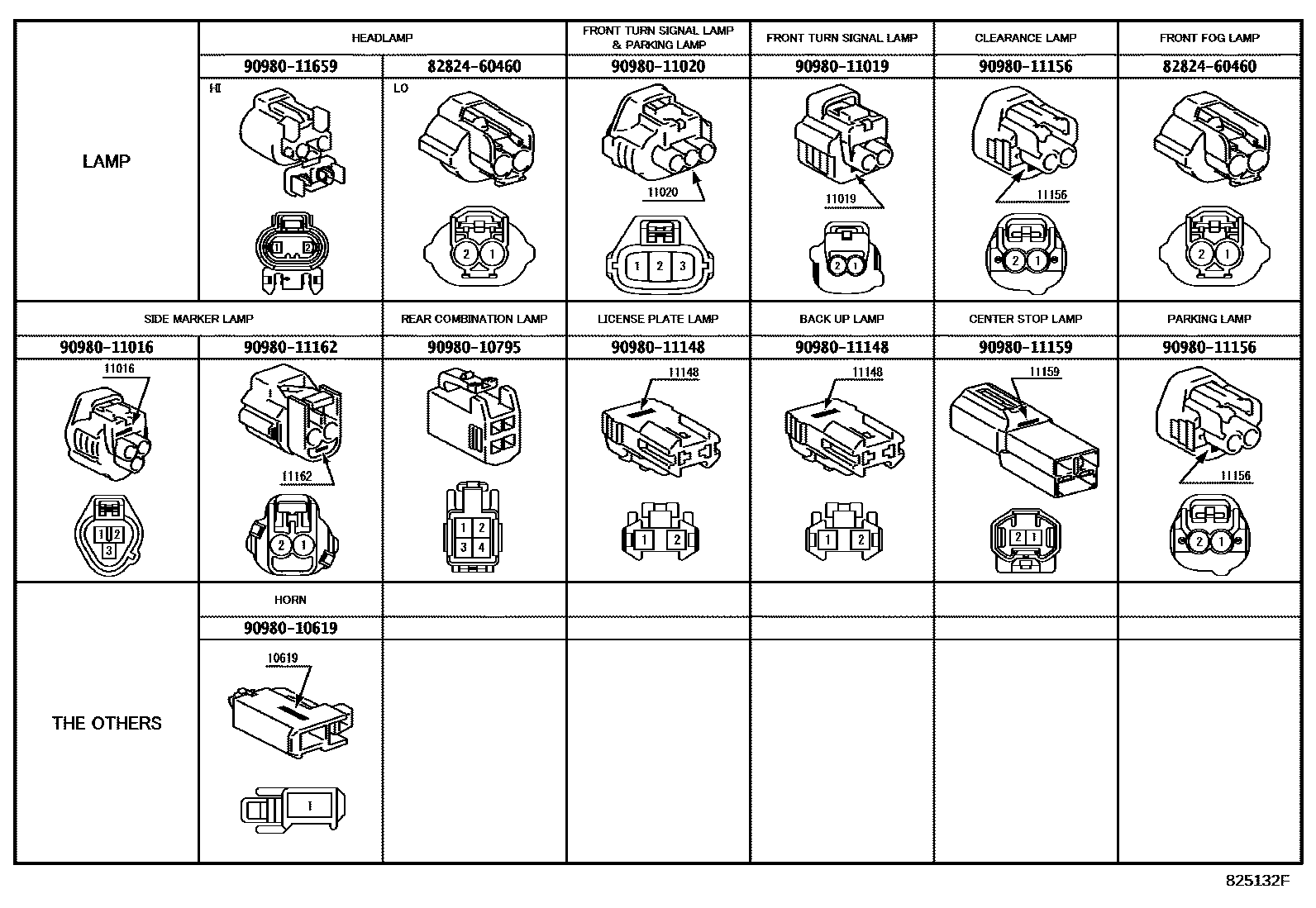

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 10 images and 61 PNC and OE references.
PNC and OE references

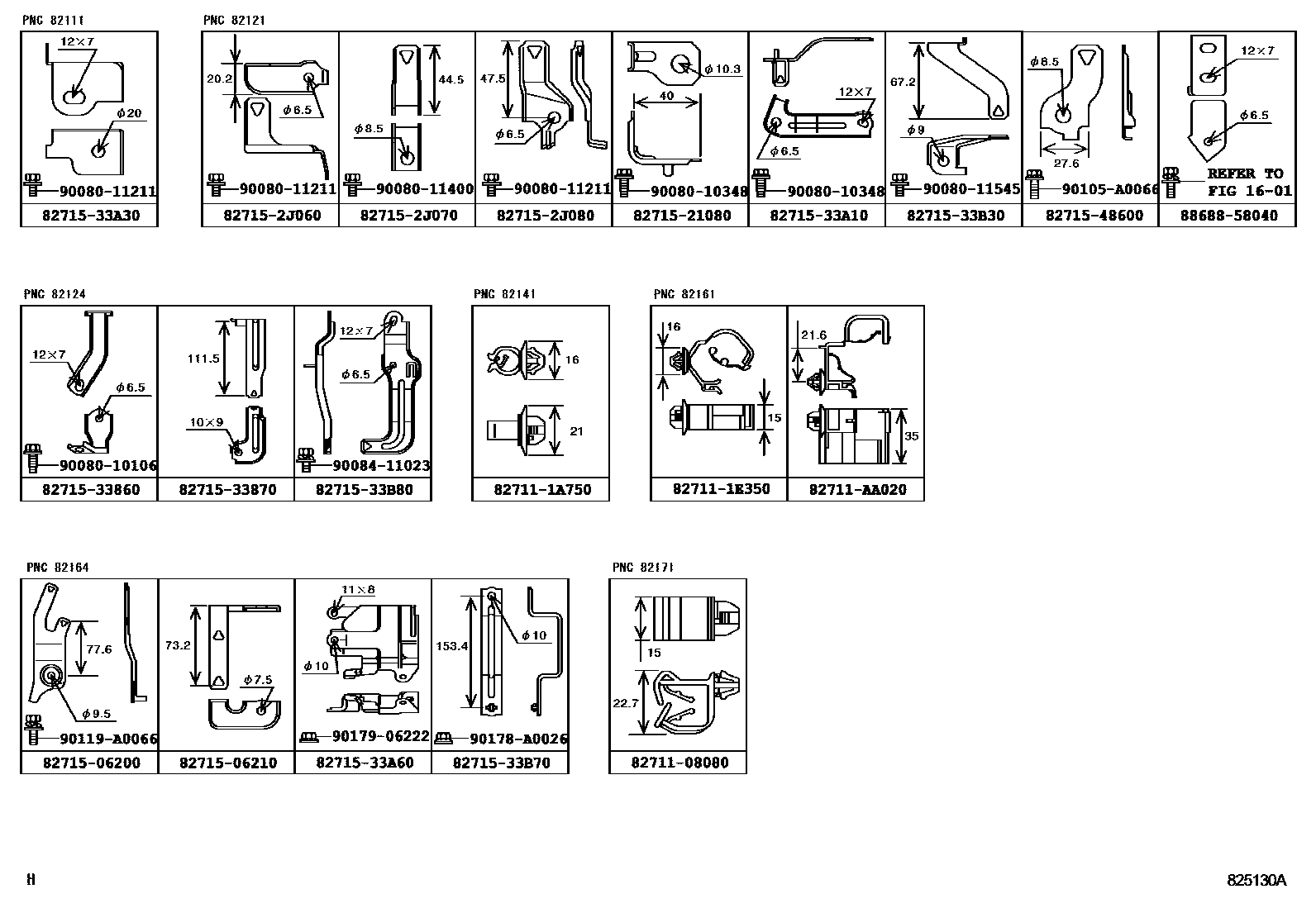

| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-A7005 |
| 82046A | Body No. 1 ground wire sub-assembly | 82046-60150 |
| 82111 | Engine room main wiring harness | 82111-06N10 · 82111-06N11 · 82111-06N12 · 82111-06Q40 |

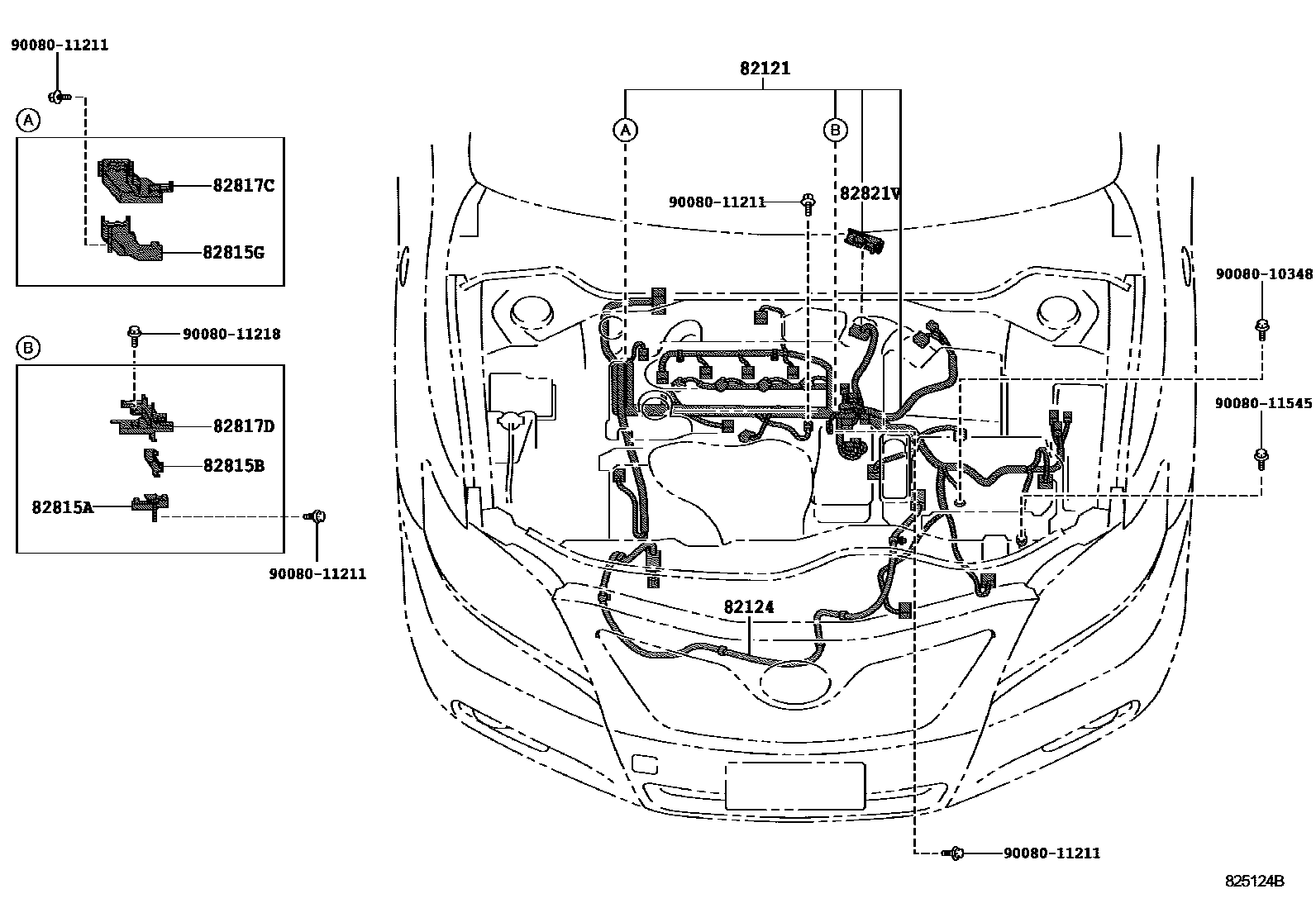

| 82121 | Engine wiring harness | 82121-06B70 |
| 82124 | Engine No. 4 wiring harness | 82124-06010 |

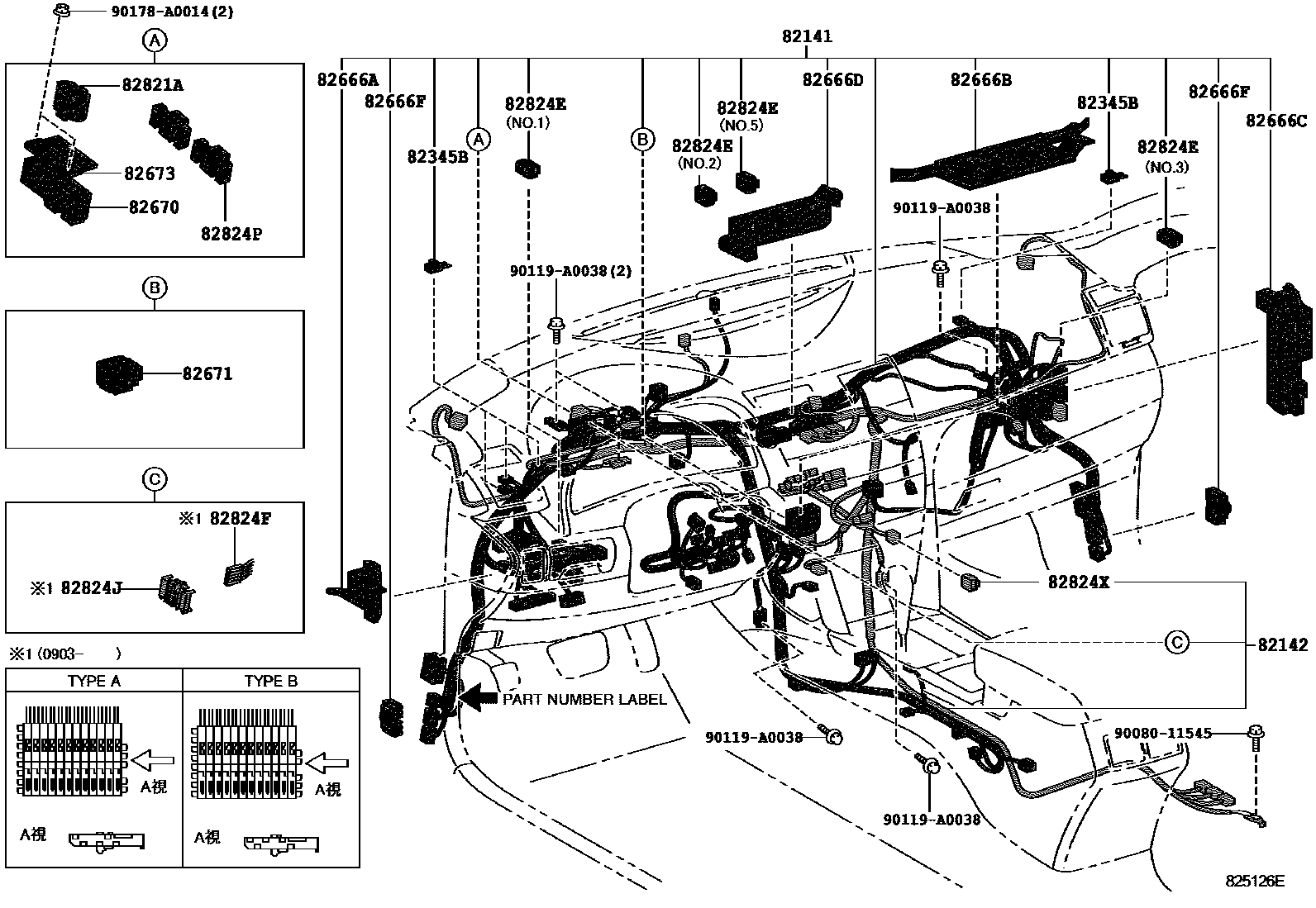

| 82141 | Dashboard wiring harness | 82141-06R80 · 82141-06R81 · 82141-06R82 · 82141-06R90 · 82141-06R91 · 82141-06R92 · 82141-06U90 · 82141-06U91 · 82141-06V00 · 82141-06V01 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-06600 · 82142-06601 · 82142-06610 · 82142-06611 · 82142-06620 · 82142-06621 · 82142-06760 · 82142-06770 · 82142-06780 · 82142-06C80 |

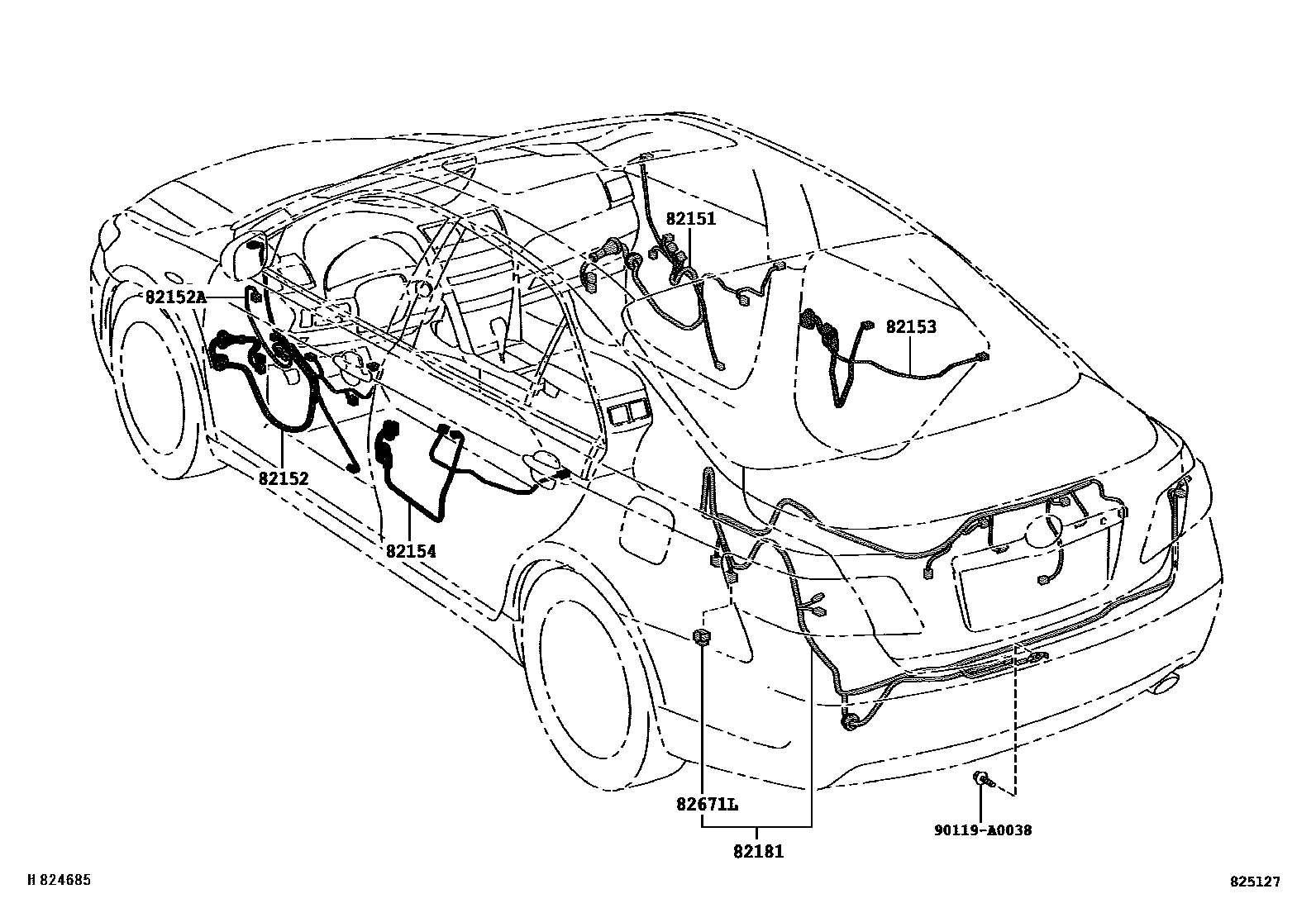

| 82151 | Right front door wiring harness | 82151-06620 · 82151-06A30 · 82151-06A60 · 82151-06A80 |
| 82152 | Left front door wiring harness | 82152-06B40 · 82152-06B50 · 82152-06C20 · 82152-06C30 |
| 82152A | Left front door wiring harness No. 2 | 82155-06060 · 82156-06010 |
| 82153 | Rear door wiring harness No. 1 | 82153-06100 · 82153-06320 |
| 82154 | Rear door wiring harness No. 2 | 82154-06100 · 82154-06320 |

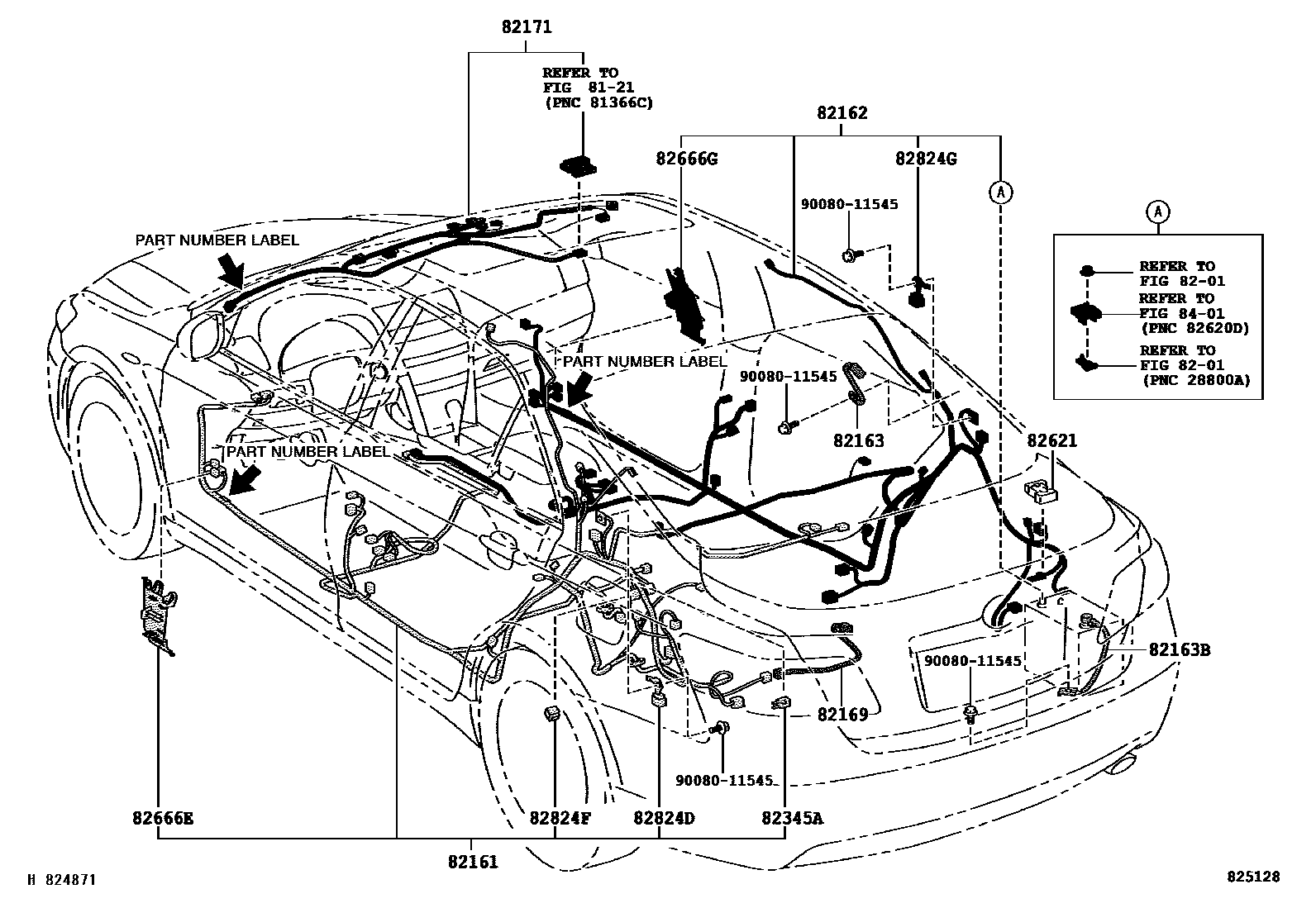

| 82161 | floor wiring harness | 82161-06J70 · 82161-06J71 · 82161-06J80 · 82161-06J81 · 82161-06M20 |
| 82162 | Floor wiring harness No. 2 | 82162-06A40 · 82162-06A50 · 82162-06A60 · 82162-06E50 · 82162-06E51 · 82162-06E60 · 82162-06E61 · 82162-06E70 · 82162-06E71 |
| 82163 | Floor wiring harness No. 3 | 82163-06080 |
| 82163B | No. 5 floor wiring harness | 82165-06010 |

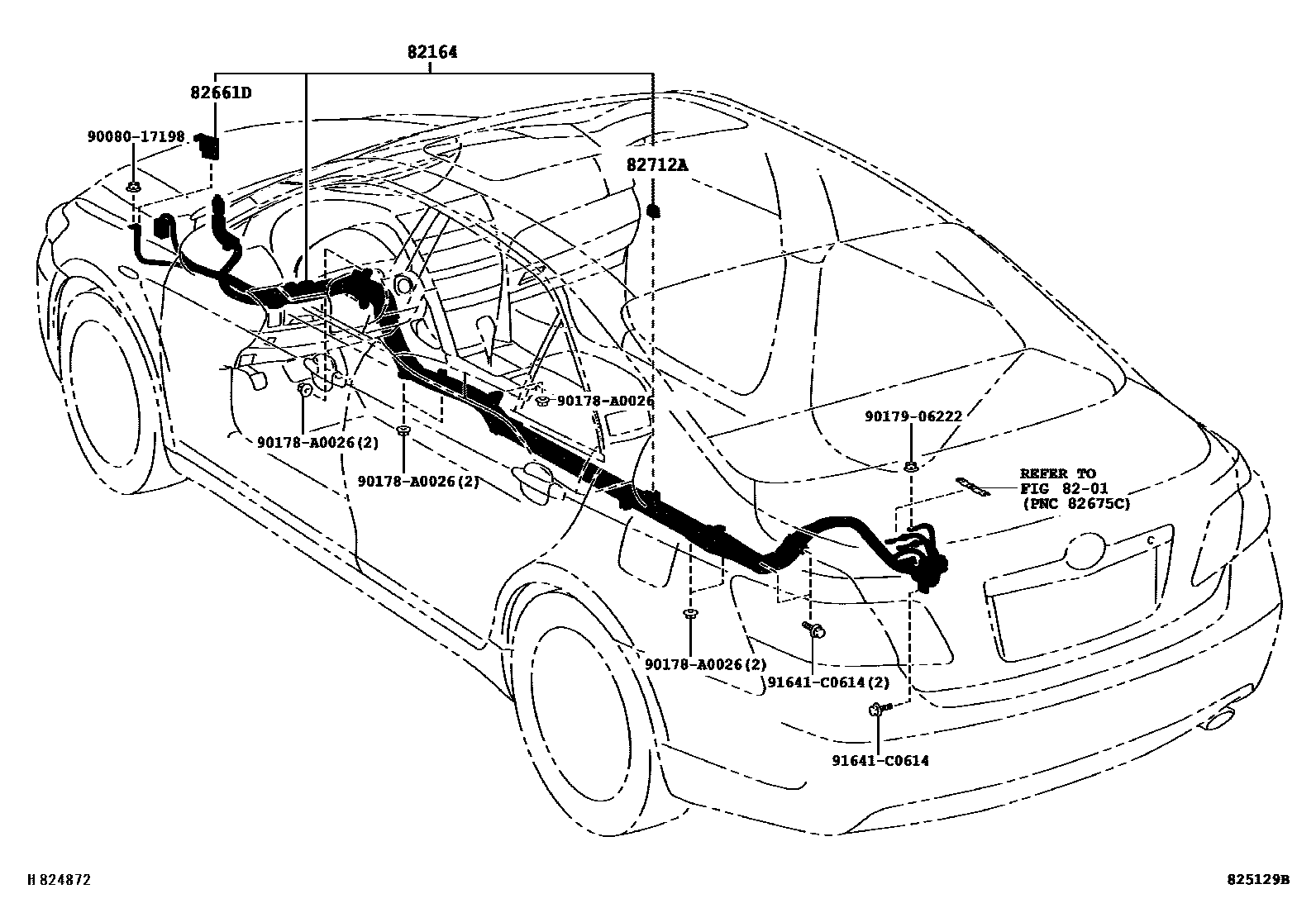

| 82164 | Frame wiring harness set | 82164-06010 |
| 82169 | No. 3 frame wiring harness | 82169-06010 |
| 82171 | Roof No. 1 wiring harness | 82171-06630 · 82171-06640 · 82171-06650 · 82171-06E30 · 82171-06E50 |
| 82181 | Luggage No. 1 wiring harness | 82181-06350 · 82181-06400 · 82181-06420 |

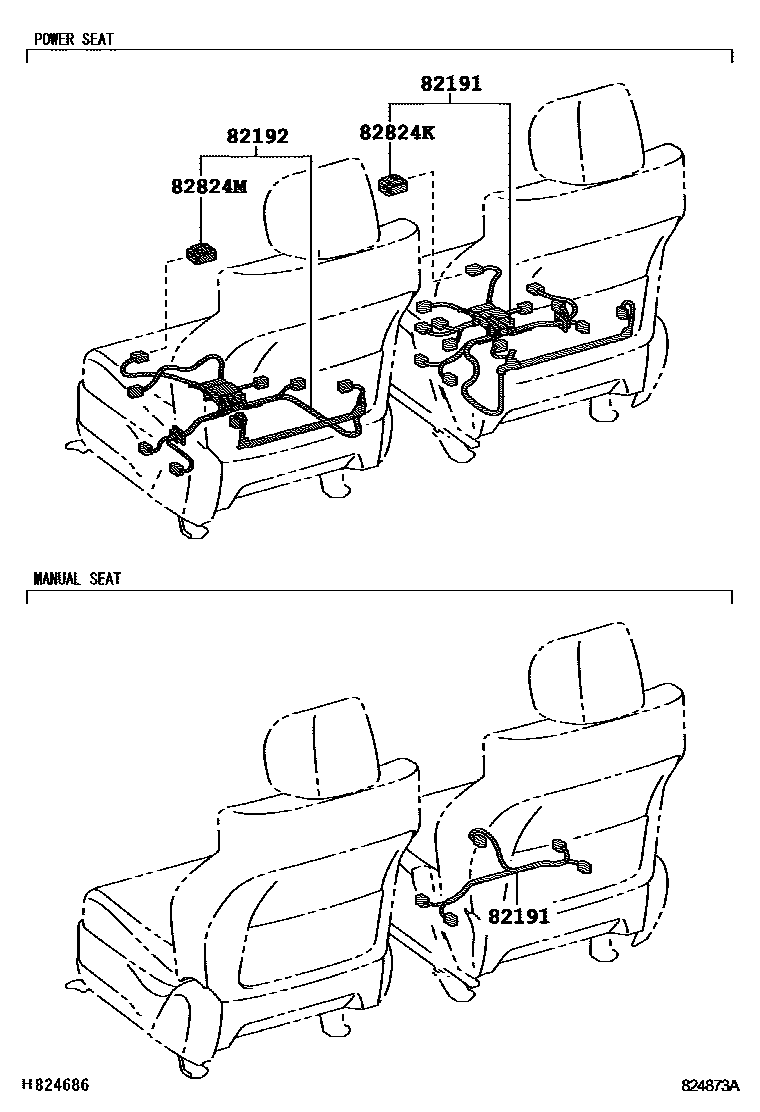

| 82191 | Front right seat wiring harness | 82191-06100 · 82191-06110 · 82191-06290 · 82191-06300 · 82191-AA040 |
| 82192 | Front left seat wiring harness | 82192-06110 · 82192-06120 · 82192-06280 · 82192-06290 |
| 82345A | diode | 82345-32010 |
| 82345B | diode | 82345-32010 |
| 82621 | Fuse cover | 82621-33010 |
| 82661D | No. 1 relay box side cover | 82661-33010 |
| 82666A | Connector holder No. 2 | 82666-33300 |
| 82666B | No. 3 connector holder | 82666-33310 |
| 82666C | No. 4 connector holder | 82666-33320 |
| 82666D | No. 5 connector holder | 82666-33380 |
| 82666E | No. 6 connector holder | 82666-33360 |
| 82666F | No. 7 connector holder | 82666-60220 |
| 82666G | No. 8 connector holder | 82666-33370 |
| 82670 | No. 1 junction box assembly | 82671-33070 |
| 82671 | junction box | 82671-33080 |
| 82671L | No. 4 junction box | 82671-30340 |
| 82673 | Junction box bracket | 82673-33040 |
| 82712A | Wire harness bracket | 82712-33190 |
| 82815A | Wiring harness protector cover | 82815-48110 |
| 82815B | Wiring harness protector cover | 82815-48120 |
| 82815G | Wiring harness protector cover | 82815-48040 |
| 82815V | No. 1 wire harness protector cover | 82815-33370 |
| 82815W | No. 2 wire harness protector cover | 82815-33270 |
| 82815X | No. 3 wire harness protector cover | 82815-33330 |
| 82817 | No. 1 wire harness protection device | 82817-33C40 |
| 82817A | No. 2 wire harness protection device | 82817-33A50 |
| 82817B | No. 3 wire harness protection device | 82817-33B90 |
| 82817C | No. 4 wire harness protection device | 82817-48100 |
| 82817D | No. 5 wire harness protection device | 82817-33770 |
| 82821A | Connector cover | 82821-33250 |
| 82821V | Connector cover | 82821-33270 |
| 82824 | Harness connector | 82824-48020 · 82824-52280 |
| 82824D | Harness connector | 82824-48070 |
| 82824E | Harness connector | 82824-12210 · 82824-20110 · 82824-30170 · 82824-50110 |
| 82824F | Harness connector | 82824-30220 |
| 82824G | Harness connector | 82824-48070 |
| 82824J | Harness connector | 82824-33240 |
| 82824K | Harness connector | 82824-48100 |
| 82824M | Harness connector | 82824-48100 |
| 82824P | Harness connector | 82824-33250 |
| 82824X | Harness connector | 82824-20110 · 82824-33300 |
