Toyota CAMRY 后组合灯 — Figure 8111

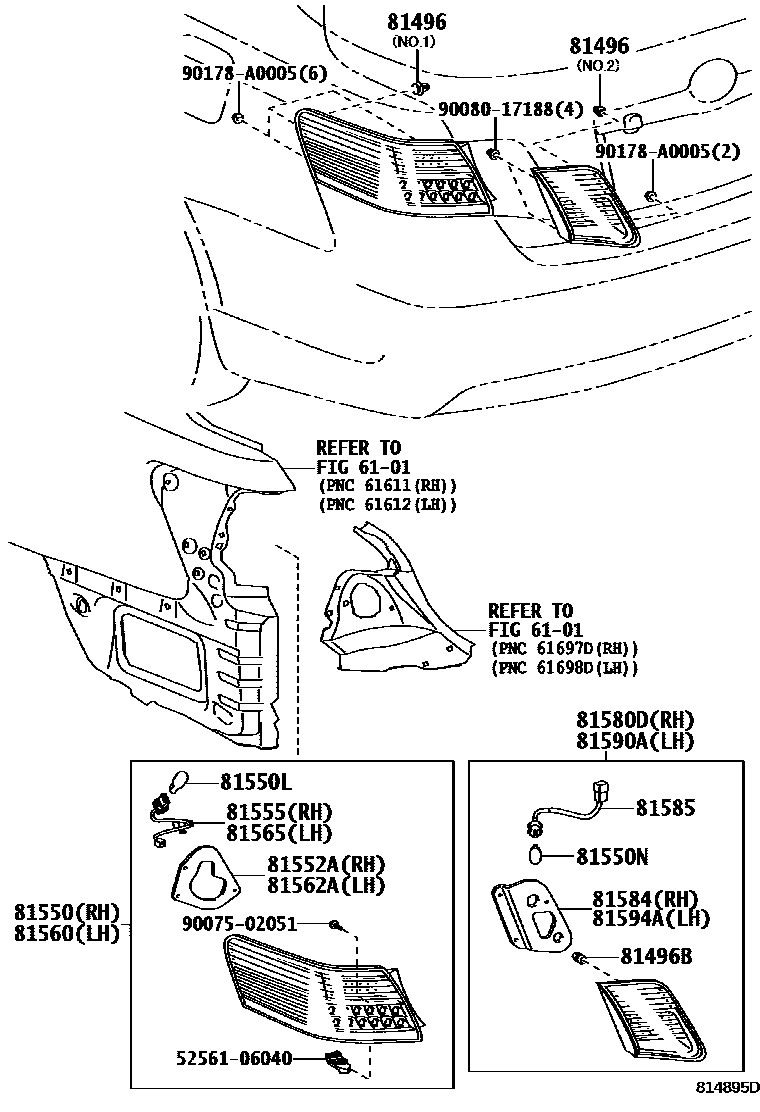

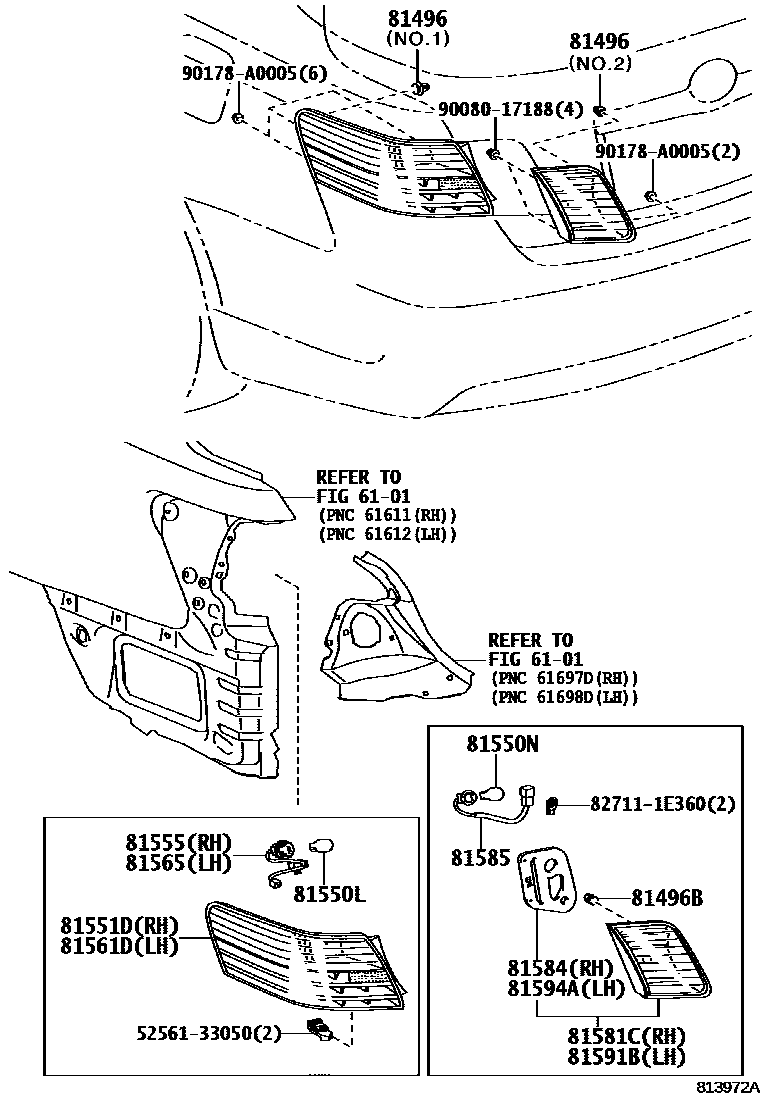

Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-33010 · 81496-60010 |
| 81496B | Rear light guide block | 81496-33020 |
| 81550 | Right rear combination light assembly | 81550-06350 · 81550-33490 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-33490 |
| 81552A | Right rear combination light gasket | 81552-06340 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06350 · 81555-33490 |
| 81560 | Left rear combination light assembly | 81560-06350 · 81560-33490 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-33490 |
| 81562A | Left rear combination light gasket | 81562-06340 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-33490 · 81565-06350 |
| 81580D | Right rear light assembly | 81580-06240 · 81580-33140 |
| 81581C | Right rear light lampshade and lamp body | 81581-33140 |
| 81584 | Right rear light seal | 81584-06230 · 81584-33140 |
| 81585 | Rear lamp holder and wiring harness | 81585-33140 |
| 81590A | Left rear light assembly | 81590-06240 · 81590-33140 |
| 81591B | Left rear light shade and body | 81591-33140 |
| 81594A | Left rear light gasket | 81594-06230 · 81594-33140 |
