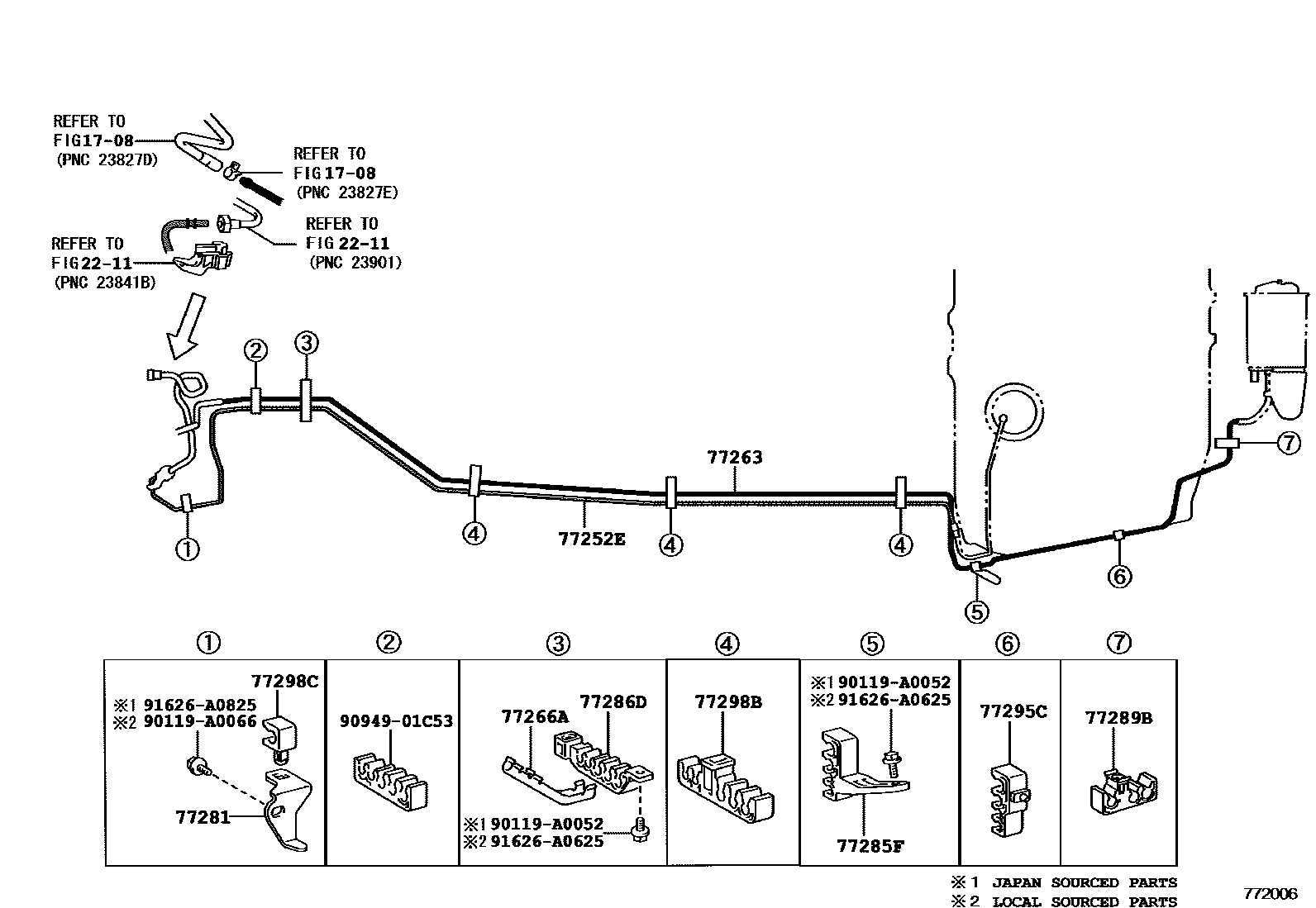

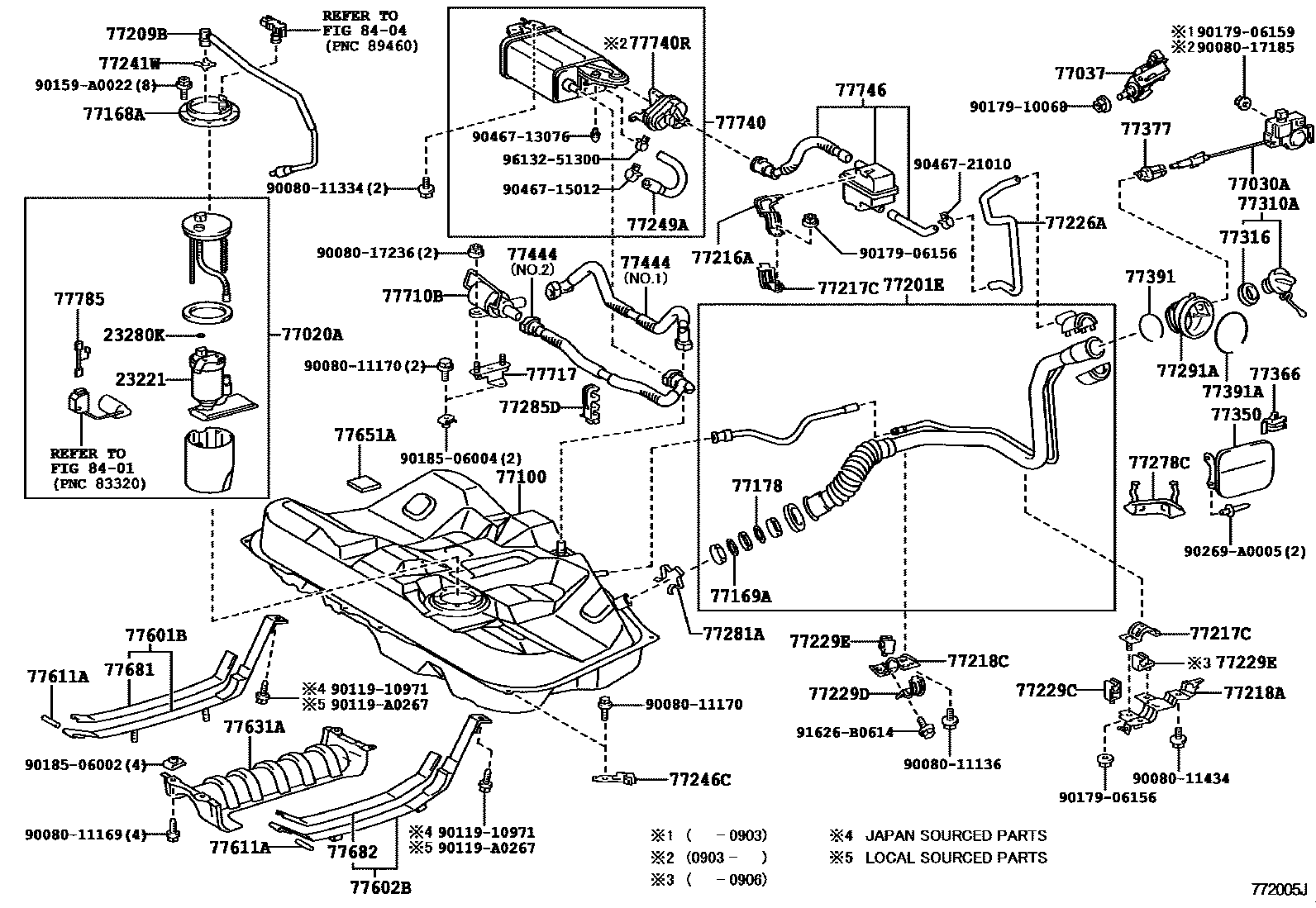

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 2 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0H120 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-A0021 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06230 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-06010 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-33020 |
| 77100 | fuel tank assembly | 77001-06120 · 77001-06121 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33060 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33050 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-33260 · 77201-33261 |
| 77209B | Fuel pump pipe sub-assembly | 77209-06030 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33070 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-33020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77216-33100 |
| 77218C | No. 5 fuel tank filler pipe bracket | 77218-33051 · 77218-33052 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33030 |
| 77229C | Snorkel clamp | 77229-33070 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77217-33030 |
| 77229E | Snorkel clamp | 77229-33060 |
| 77241W | Pipe joint clip | 77241-06020 |
| 77246C | Main fuel pipe bracket | 77246-06010 · 77246-33020 |
| 77249A | fuel drain hose | 77249-33080 |
| 77252E | No. 2 fuel pipe (for front main fuel pipe) | 77251-06070 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77261-06170 |
| 77266A | No. 1 fuel line protection device | 77266-06030 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-33020 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06020 |
| 77281A | Fuel filler pipe clamp | 77281-33020 |
| 77285D | No. 1 fuel pipe clamp | 77285-33080 |
| 77285F | No. 1 fuel pipe clamp | 77299-06040 |
| 77286D | No. 2 fuel pipe clamp | 77286-06030 |
| 77289B | No. 3 fuel pipe clamp | 77289-06040 |
| 77291A | Fuel tank filler pipe cover | 77291-06100 · 77291-33070 |
| 77295C | Fuel pipe retaining ring | 77295-06030 |
| 77298B | No. 4 fuel pipe clamp | 77298-20110 |
| 77298C | No. 4 fuel pipe clamp | 77298-30170 |
| 77310A | Fuel tank cap assembly | 77300-48010 |
| 77316 | fuel tank cap gasket | 77316-47020 · 77316-48010 |
| 77350 | Fuel filler cap assembly | 77350-06030 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 |
| 77377 | Fuel filler cap lock retainer | 77377-AA020 |
| 77391 | fuel inlet ring | 77391-02040 · 77391-02041 |
| 77391A | fuel inlet ring | 77391-06010 |
| 77444 | fuel tank vent hose | 77404-06140 · 77404-06150 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33090 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-33060 |
| 77651A | No. 1 fuel tank liner | 77651-12070 · 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-33020 |
| 77682 | Fuel tank left side strap seat | 77682-33020 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-33010 |
| 77717 | Fuel return solenoid valve bracket | 77717-33010 |
| 77740 | Carbon canister assembly | 77740-33190 |
| 77740R | Leak detection pump sub-assembly | 90910-14003 |
| 77746 | No.2 carbon canister filter | 77706-33050 |
| 77785 | fuel pump wiring harness | 77785-06070 |
