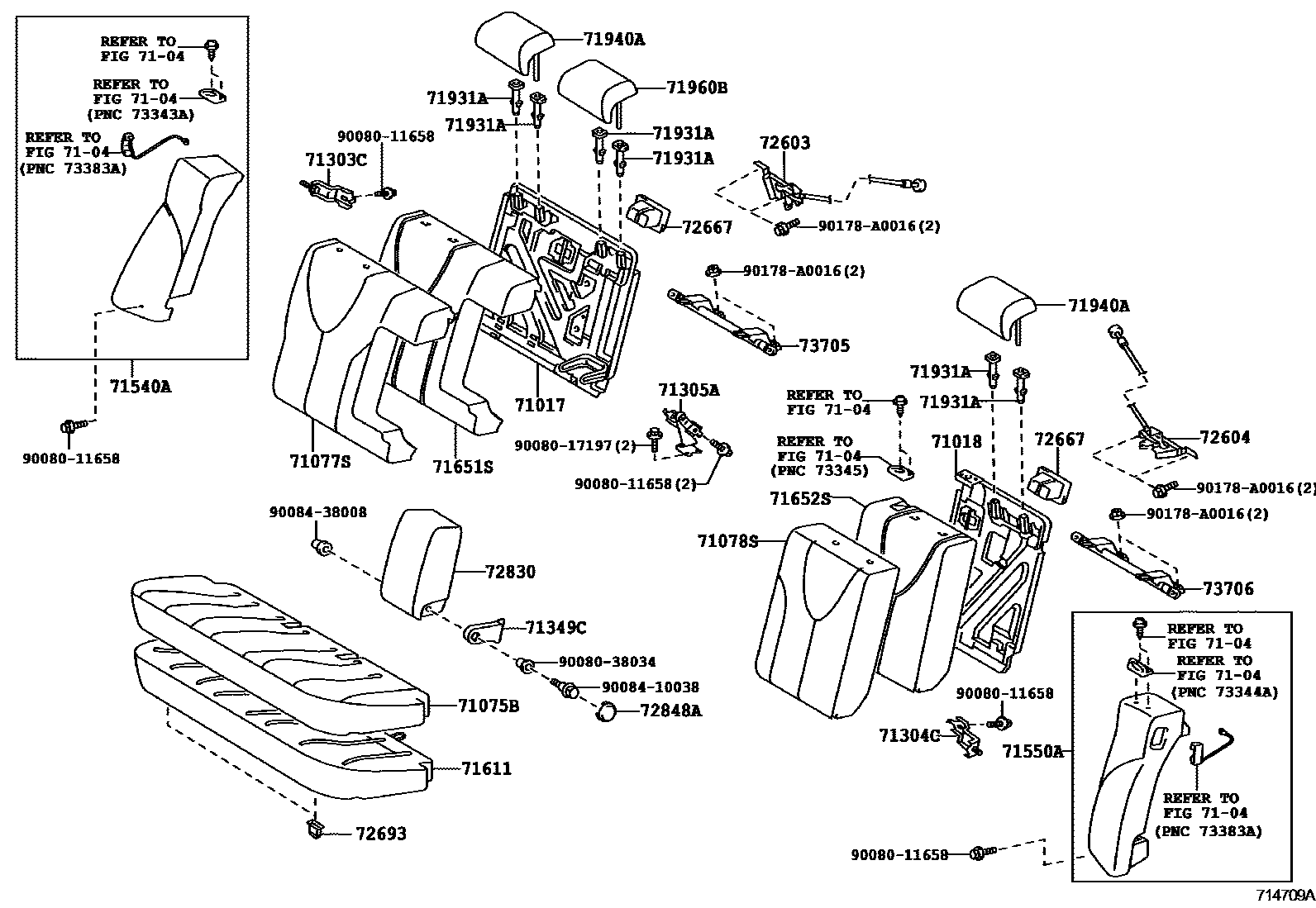

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06090 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06010 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-06010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06010 |
| 71349C | Rear seat back hinge cover | 71349-06010 |
| 71611 | Rear seat cushion cushion | 71503-06090 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06090 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06060 |
| 72603 | Rear right seat back lock sub-assembly | 72630-06020 |
| 72604 | Rear left seat back lock sub-assembly | 72640-06020 |
| 72667 | Rear seat back locking frame | 72667-06010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72848A | No. 1 seat armrest cover | 72848-06010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06020 · 73705-33030 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06020 · 73706-33030 |
