Toyota CAMRY 锁芯组件 — Figure 6712

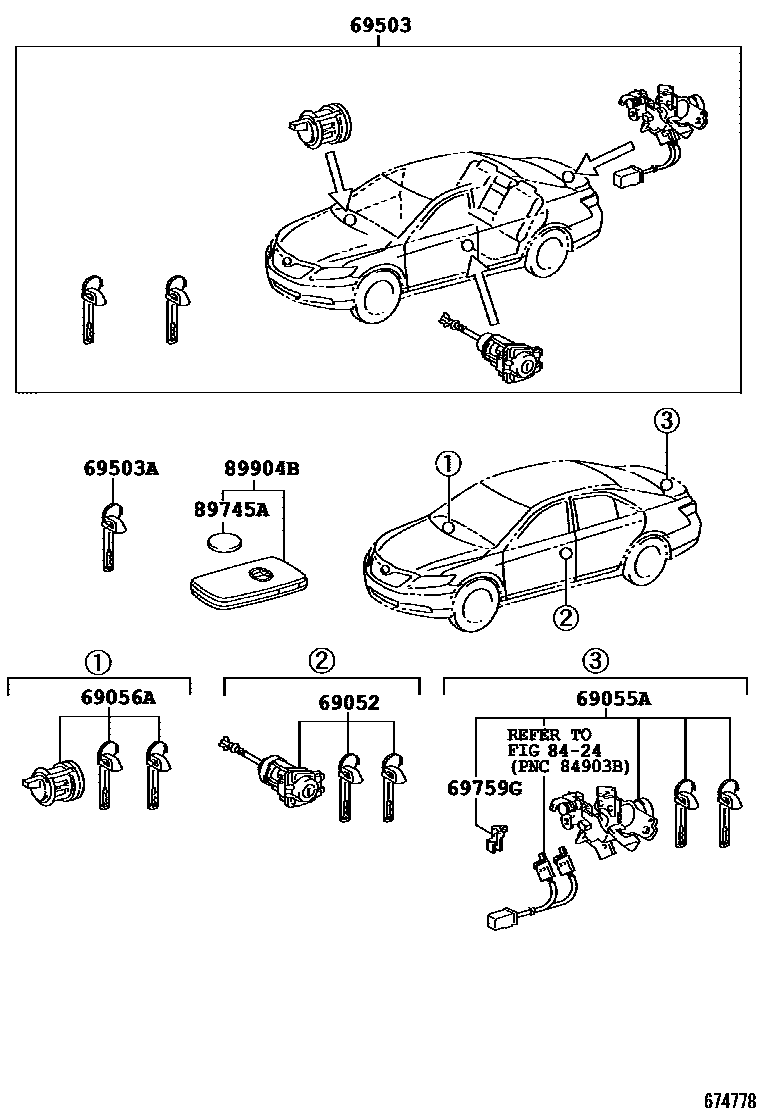

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-33300 |
| 69055A | Luggage lock cylinder and key assembly | 69055-33460 |
| 69056A | Glove box lock cylinder and key assembly | 69056-33200 |
| 69503 | Door lock cylinder components | 69005-06450 |
| 69503A | external tooth key | 69515-52120 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89745A | Transmitter battery | 89745-52020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06041 · 89904-06070 · 89904-06130 |
