Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

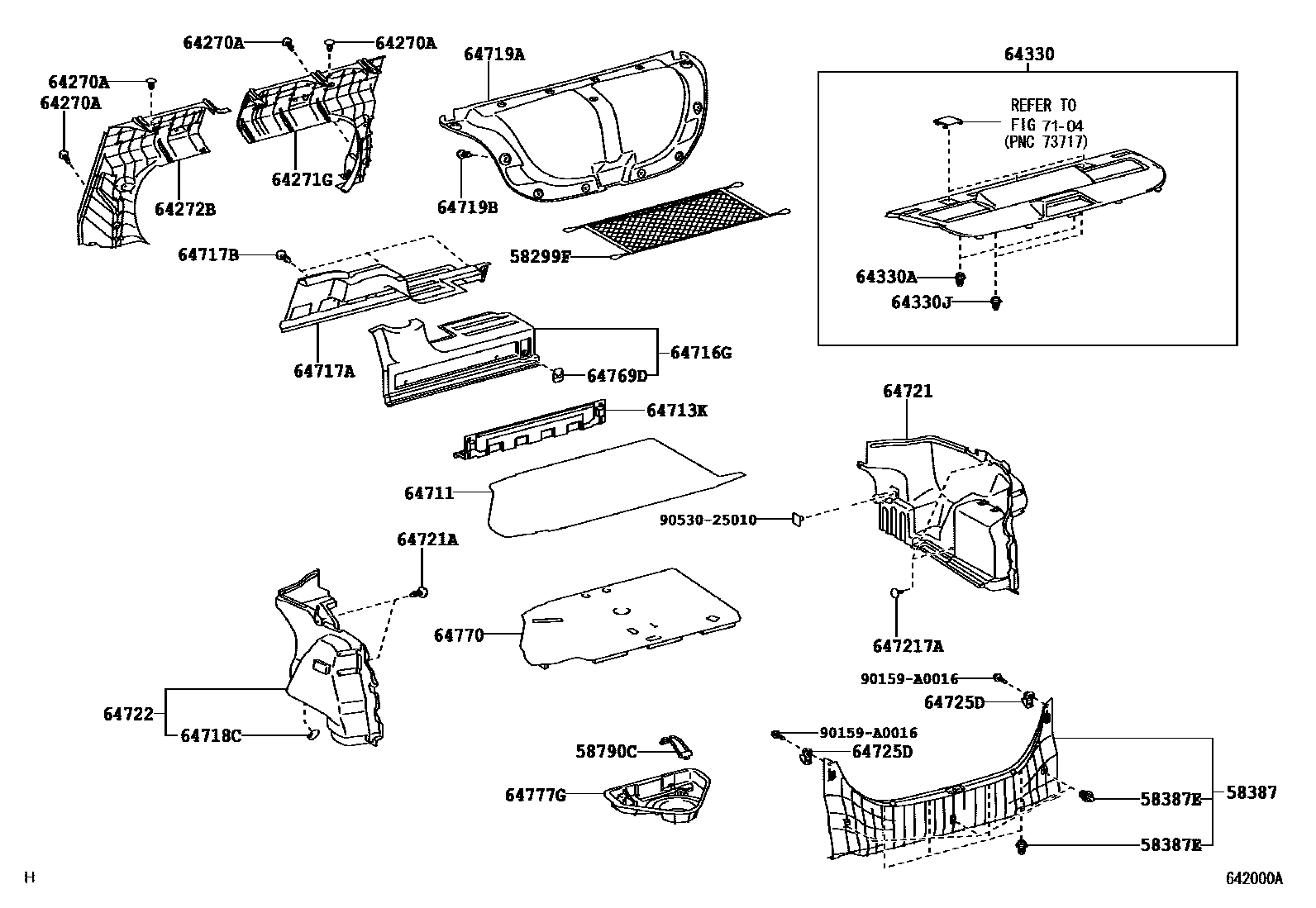

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58299F | Luggage rack net | 58299-AA010 |
| 58387 | Rear floor decorative panel | 58387-06060 |
| 58387E | Clip (for rear floor trim panel) | 90467-A0006 |
| 58790C | Jack bracket assembly | 58790-52020 |
| 64271G | Right compartment partition | 64271-06020 |
| 64272B | Left compartment partition | 64272-06010 |
| 64330A | Clip (for glove box decorative panel) | 90467-A0006 |
| 64330J | Clip (for glove box decorative panel) | 90467-10167 |
| 64718C | Trunk trim access hole cover | 64706-06010 |
| 64719B | Catch (for trunk door) | 90467-07201 |
| 64770 | Spare tire cover assembly | 64770-06230 |
| 64777G | Spare tire cushion | 64777-33070 |
