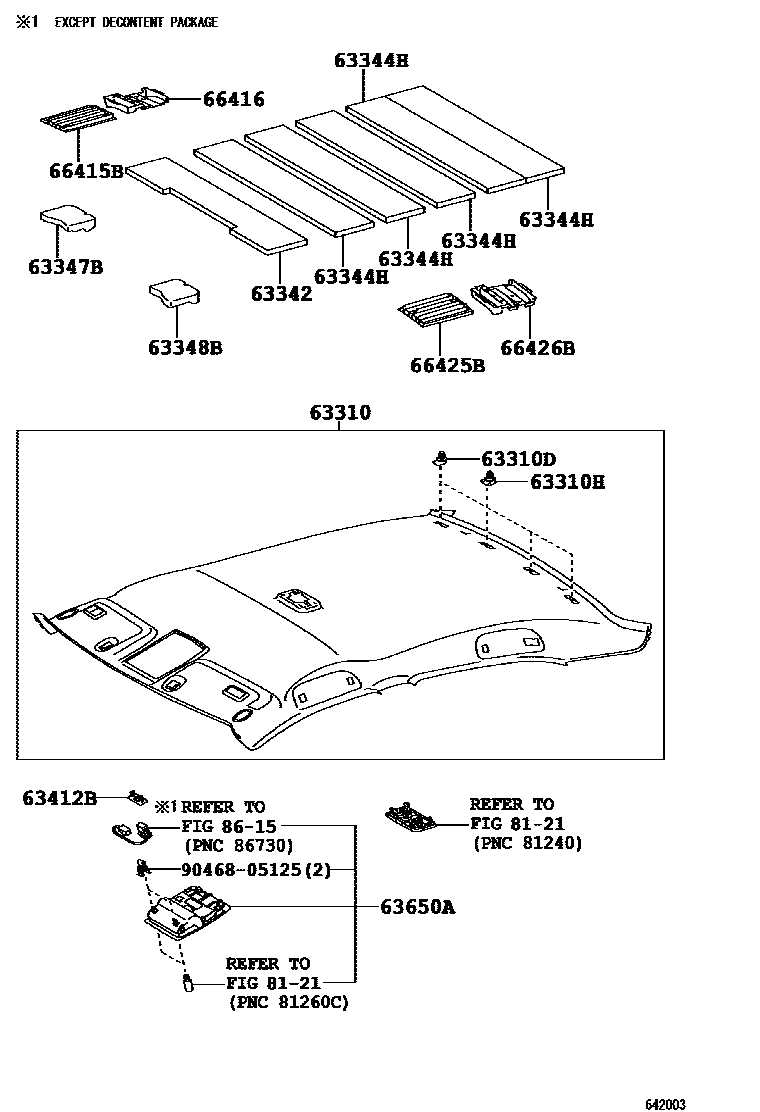

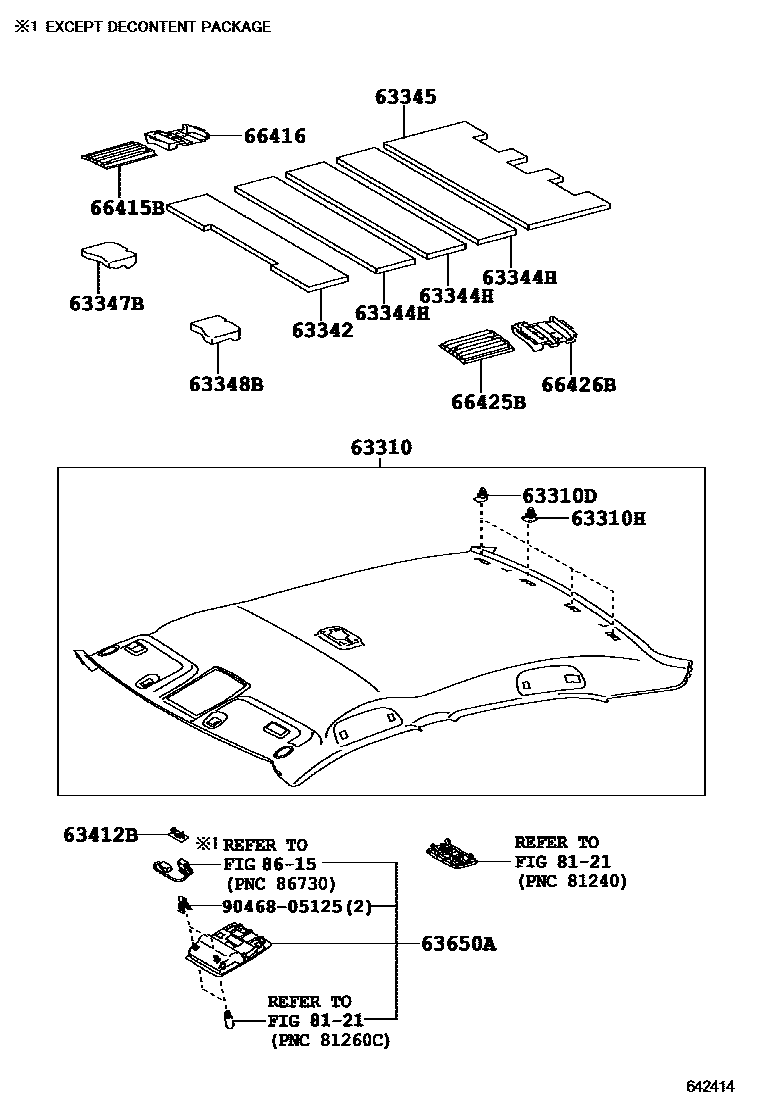

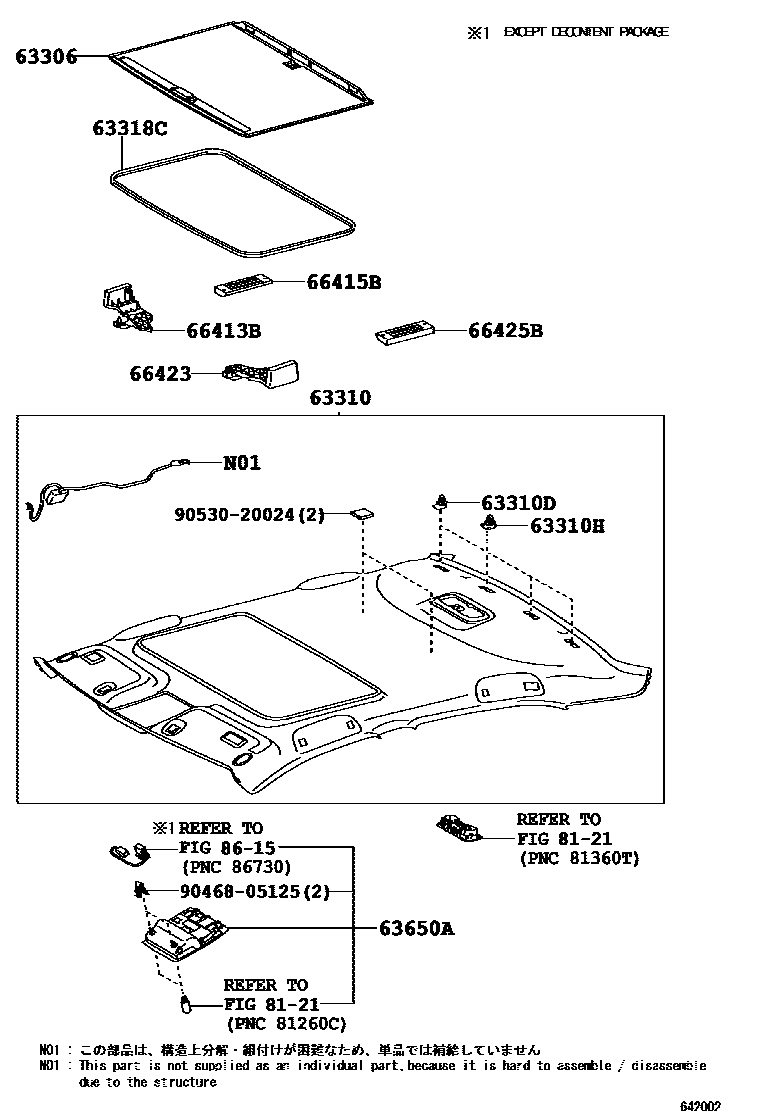

Toyota CAMRY 车顶内衬和消声垫 — Figure 6402
Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-09126 |
| 63310H | Clip (for headliner) | 90467-10181 |
| 63342 | No. 2 roof muffler pad | 63342-06050 |
| 63344H | No. 4 roof silencer mat | 63344-06060 |
| 63345 | No. 5 roof silencer mat | 63345-06050 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-06020 |
| 63348B | Roof left side rail silencer pad | 63348-06020 |
| 63412B | roof console fixings | 63412-33010 |
| 66413B | Right front longitudinal member spacer | 66413-06100 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-06010 · 66415-06100 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-06010 |
| 66423 | Left front longitudinal member spacer | 66423-06100 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66415-06100 · 66425-06010 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-06010 |
