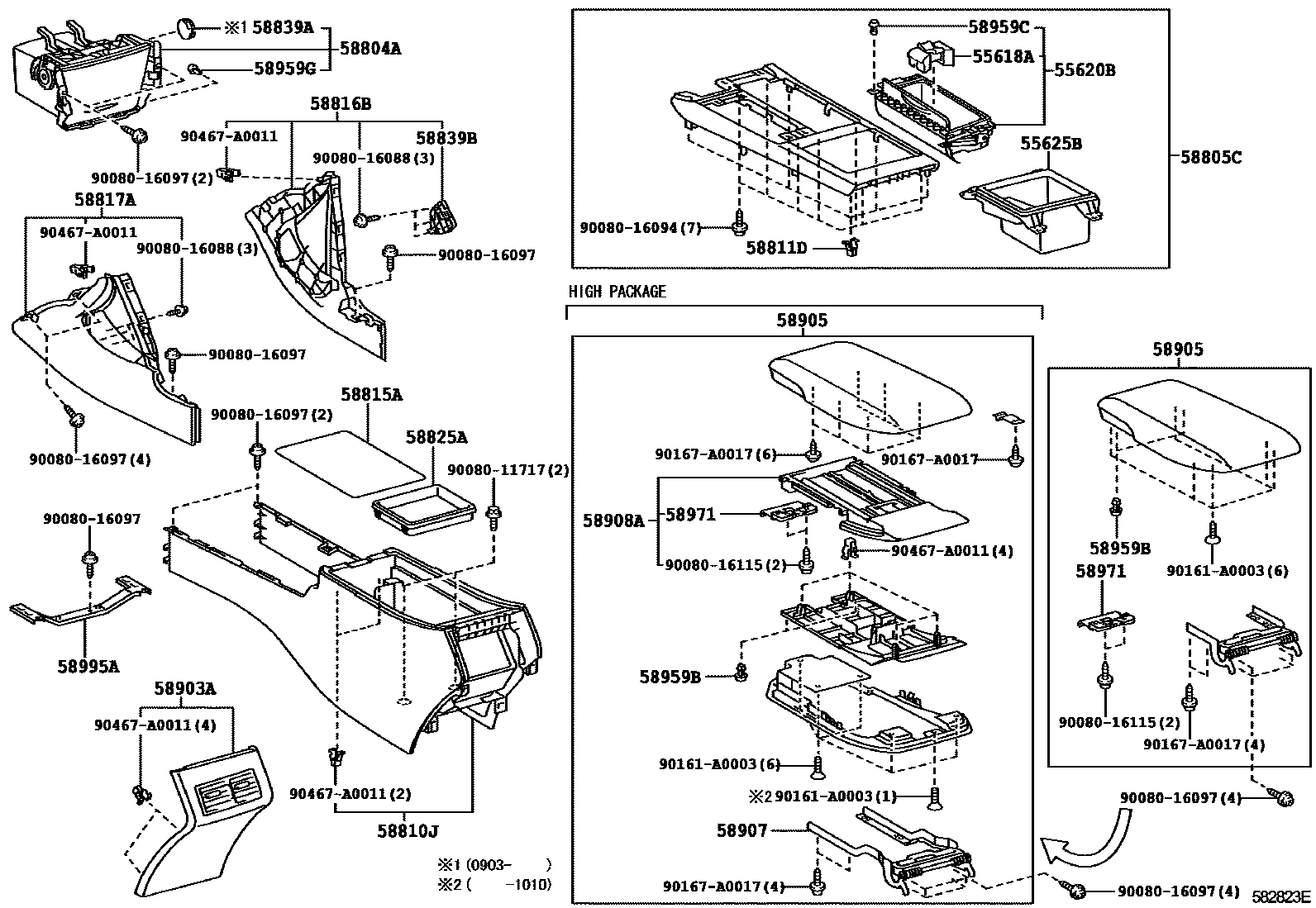

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55618A | Armrest box cup holder | 55618-06020 |
| 55620B | Dashboard cup holder | 55620-06050 · 55620-06250 |
| 55625B | Dashboard cup holder tray | 55625-06010 · 55625-06070 · 55625-06080 |
| 58804A | Armrest box upper panel sub-assembly | 58804-06060 · 58804-06230 |
| 58811D | Clip (for armrest box) | 90467-A0011 |
| 58815A | Armrest box felt pad | 58815-06040 |
| 58825A | Armrest box groove | 58825-06030 |
| 58839A | Armrest box hole cover | 58839-06060 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-06020 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58959C | Armrest box cover cushion | 58959-60060 |
| 58959G | Armrest box cover cushion | 58959-60060 |
| 58971 | Armrest box lid lock | 58908-33030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06030 |
