Toyota CAMRY 地板垫和地毯 — Figure 5804

Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 1 images and 7 PNC and OE references.

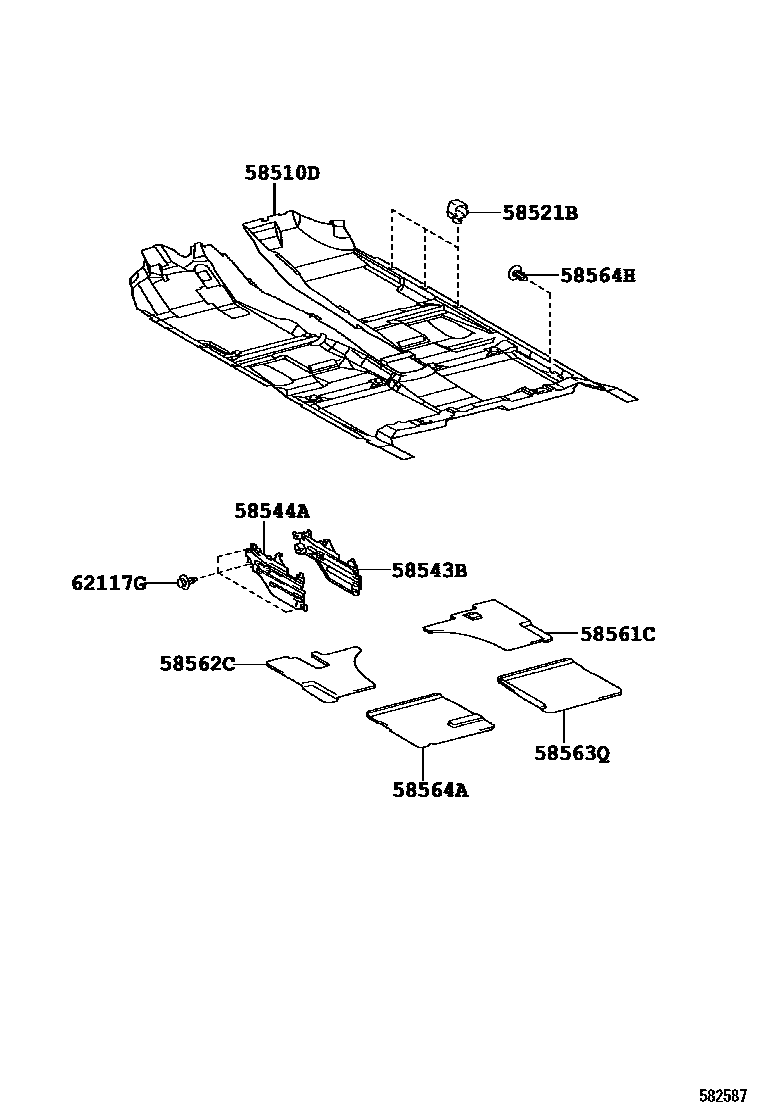

Toyota CAMRY 地板垫和地毯 EPC diagram — 582587
地板垫和地毯 — 582587 (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
58521Bcarpet hook58521-06050
58543BRight carpet bracket58543-06020
58544Aleft carpet bracket58544-06020
58561CFront floor silencer No. 158561-06040
58562CFront floor silencer No. 258562-06040
58563QFront floor silencer No. 358563-06030
58564AFront floor silencer No. 458564-06030
