Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 31 PNC and OE references.

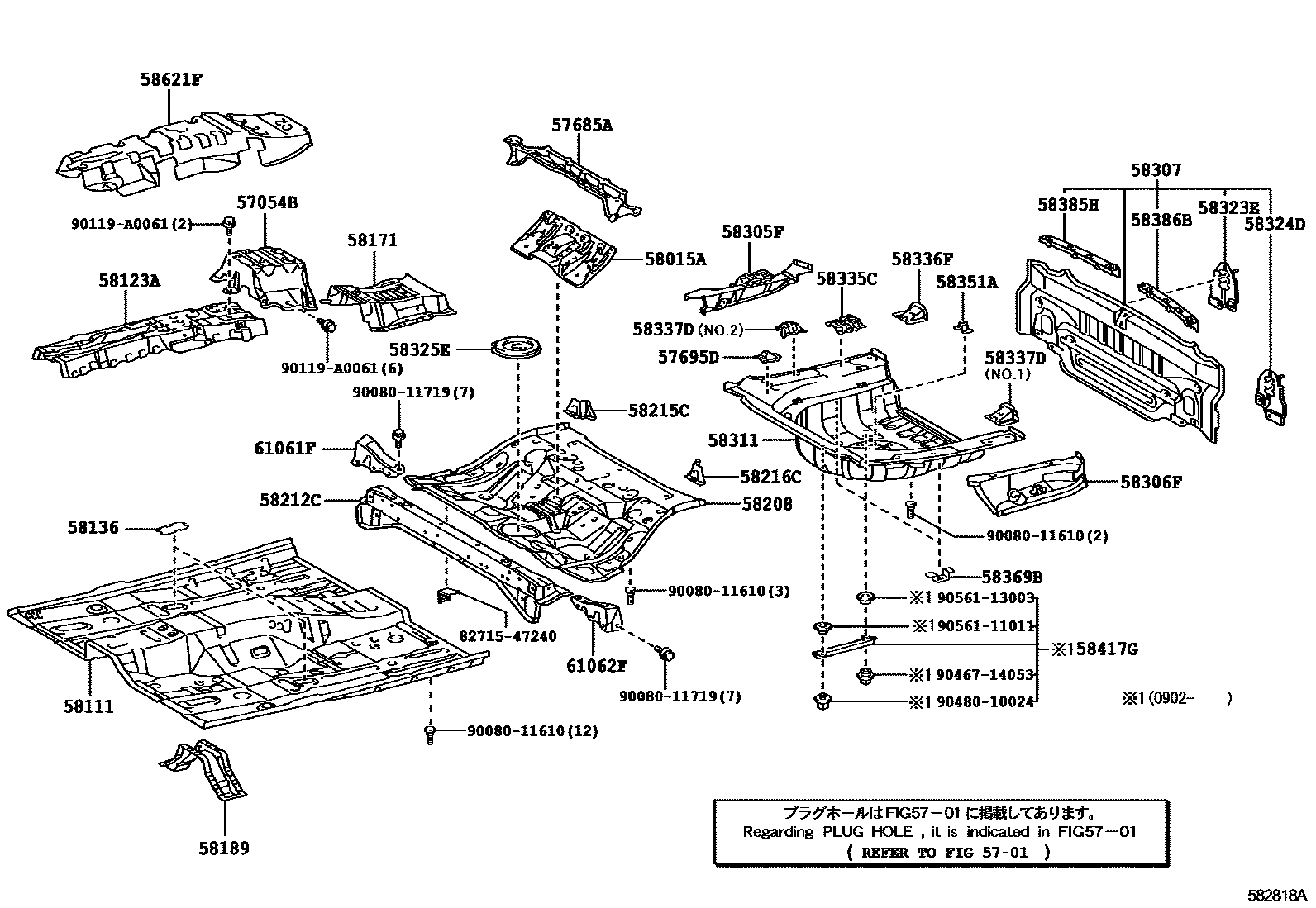

Toyota CAMRY 浅盘形地板和车身下背板 EPC diagram — 582818A
浅盘形地板和车身下背板 — 582818A (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
57054BFloor No. 4 beam reinforcement sub-assembly57054-06010
57685ARear floor No. 1 right mounting bracket57685-33010
57695DRear floor No. 2 right mounting bracket57695-06010
58015ARight No. 3 seat belt anchor reinforcement sub-assembly58015-06040
58111front floor pan58111-06060
58123Ashift lever bracket58013-06050
58136Front floor hole cover58136-06050
58171Parking brake base reinforcement58171-06040
58189Exhaust pipe clamp bracket reinforcement58189-07030
58208central floor base58211-06160
58212CCenter floor front floor58202-06010
58215CCenter floor No. 2 right reinforcement58215-06020
58216CCenter floor No. 2 left reinforcement58216-06020
58305FRear floor right side panel sub-assembly58305-06130
58306FRear floor left side panel sub-assembly58306-07010
58307Body lower back panel sub-assembly58307-06100
58311rear floor pan58311-06120
58323ERear bumper arm right bracket reinforcement58323-06020
58324DRear bumper arm left bracket reinforcement58324-06020
58325ERear floor access hole cover58325-06020 · 58325-06050
58335CFront floor right panel58335-06020
58336FRear floor bottom panel right reinforcement58336-07010
58337DRear floor bottom left reinforcement58337-06060 · 58337-07010
58351ASpare tire rack bracket58351-33010
58369BNo. 3 fuel pipe bracket58369-06010
58385HRear bumper cover No. 1 bracket58385-06030
58386BRear bumper cover bracket No. 258386-06010
58417GRear floor panel No. 358417-33010
58621FCenter console silencer No. 158621-06060
61061FNo. 1 side wheel cover corner plate sub-assembly61061-06020
61062FNo. 2 side wheel housing corner plate sub-assembly61062-06020
