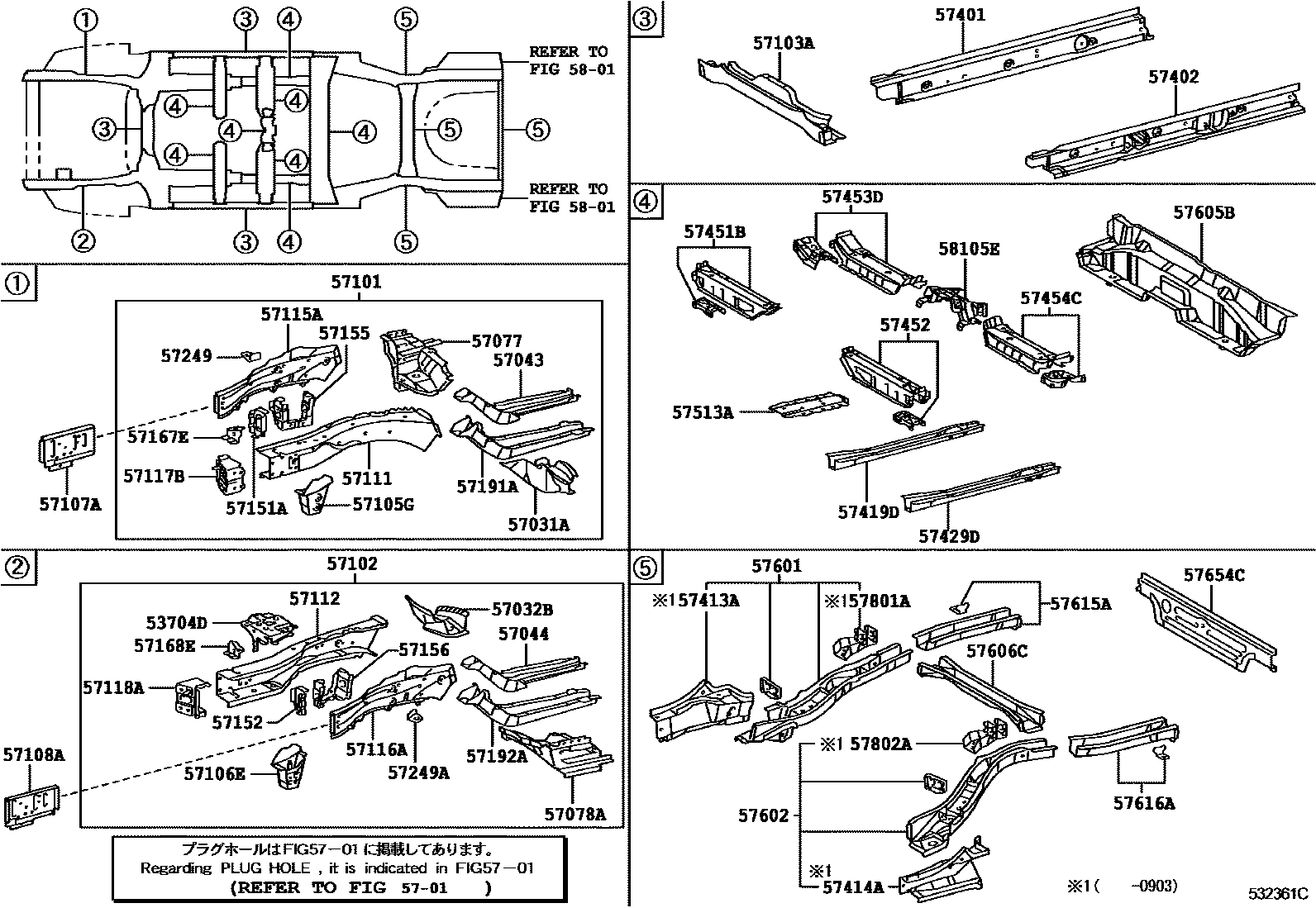

Toyota CAMRY Floor stringers — Figure 5305
Toyota CAMRY EPC diagram 5305, Floor stringers, with 1 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53704D | Battery left side bracket sub-assembly | 53704-07012 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-06010 |
| 57032B | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-06010 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-06010 |
| 57044 | Left front longitudinal beam rear reinforcement sub-assembly | 57044-06010 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-06040 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-06040 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-06050 · 57101-06051 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-07020 · 57102-07021 · 57102-07022 |
| 57103A | Floor No. 3 beam sub-assembly | 57103-07011 |
| 57105G | Right front suspension cross member spacer sub-assembly | 57105-06010 |
| 57106E | Left front suspension cross member front mounting bracket sub-assembly | 57106-06010 |
| 57107A | No. 2 right front longitudinal beam plate sub-assembly | 57107-06010 · 57107-06011 |
| 57108A | No. 2 left front longitudinal beam plate sub-assembly | 57108-06010 · 57108-06011 |
| 57111 | Right front longitudinal beam | 57111-06020 · 57111-06021 |
| 57112 | Left front longitudinal beam | 57112-06030 · 57112-06031 |
| 57115A | Right front longitudinal beam outer panel | 57115-06030 |
| 57116A | Left front longitudinal beam outer panel | 57116-06020 |
| 57117B | Install reinforcement on the right side of the front bumper | 57117-06030 |
| 57118A | Install reinforcement on the left side of the front bumper | 57118-06030 · 57118-33050 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-06010 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-06010 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-06010 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-06010 · 57156-06011 |
| 57167E | Front cross member right corner panel | 57167-06010 |
| 57168E | Front cross member left corner panel | 57168-06010 |
| 57191A | Right rear longitudinal member inside front floor | 57191-06010 |
| 57192A | Left rear longitudinal member inside front floor | 57192-06010 |
| 57249 | No. 1 Flexible Hose Bracket | 57249-06010 |
| 57249A | No. 1 Left Flexible Hose Bracket | 57249-06010 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-06140 · 57401-06141 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-06140 · 57402-06141 |
| 57413A | Rear floor right inner longitudinal beam | 58027-07010 |
| 57414A | Rear floor left inner longitudinal beam | 58028-07010 |
| 57419D | Front floor right rear lower reinforcement | 57419-06040 |
| 57429D | Left rear reinforcement under front floor | 57429-06020 |
| 57451B | Front floor right cross member | 57451-07901 |
| 57452 | Front floor left cross member | 57452-07901 · 57452-07902 |
| 57453D | Front floor right cross member | 57453-07901 |
| 57454C | Front floor left longitudinal beam | 57454-07901 · 57454-07902 |
| 57513A | Front floor left reinforcement | 57513-06010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-06902 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-06901 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-07021 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-06110 |
| 57615A | Rear floor right rear longitudinal member | 57615-07902 |
| 57616A | Rear floor left rear longitudinal member | 57616-07907 |
| 57654C | Rear floor beam No. 3 | 57654-07010 |
| 57801A | Rear floor right longitudinal beam reinforcement sub-assembly | 57801-06040 · 57801-32020 |
| 57802A | Rear floor left longitudinal beam reinforcement sub-assembly | 57802-06040 · 57802-32020 |
| 58105E | Front floor and rear upper sub-panel sub-assembly | 58105-06010 |
