Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

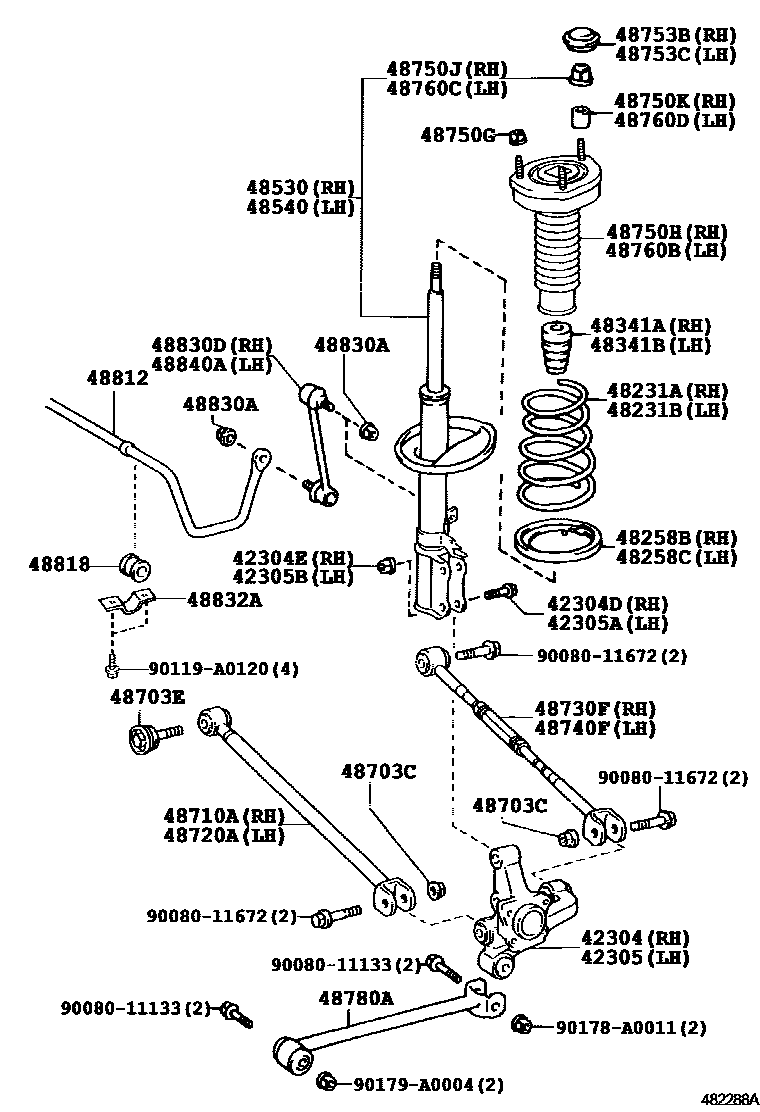

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06100 · 42304-48010 |
| 42304D | Bolt (for rear axle right bracket) | 90080-10398 |
| 42304E | Nut (for rear axle right bracket) | 90080-17213 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06100 · 42305-48010 |
| 42305A | Bolt (for left rear axle bracket) | 90080-10398 |
| 42305B | Nut (for left rear axle bracket) | 90080-17213 |
| 48231A | Right rear coil spring | 48231-06520 · 48231-06521 |
| 48231B | Left rear coil spring | 48231-06520 · 48231-06521 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-32021 · 48258-AA010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06060 · 48258-33020 |
| 48341A | No. 1 right rear spring buffer block | 48341-AA010 |
| 48341B | No. 1 left rear spring buffer block | 48341-AA010 |
| 48530 | Right rear shock absorber assembly | 48530-09N60 |
| 48540 | Left rear shock absorber assembly | 48540-09810 |
| 48703C | Nut (for rear suspension arm) | 90080-17223 |
| 48703E | Bolts (for rear suspension arms) | 90080-11674 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-06110 · 48710-06130 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-06110 · 48710-06130 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-07020 · 48730-07040 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-07010 · 48740-07020 |
| 48750G | Nut (for rear suspension mount) | 90178-08007 · 90178-A0002 |
| 48750H | Right rear suspension support assembly | 48750-06180 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 90080-17217 |
| 48750K | Collar (for rear mount to right rear shock absorber) | 90387-15027 |
| 48753B | Right rear suspension support cover No. 1 | 48753-06011 |
| 48753C | Left rear suspension support cover No. 1 | 48753-06011 |
| 48760B | Left rear suspension support assembly | 48760-06180 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 90080-17217 |
| 48760D | Collar (for rear mount to left rear shock absorber) | 90387-15027 |
| 48780A | Rear support rod assembly | 48780-07010 · 48780-07020 |
| 48812 | rear stabilizer bar | 48812-06170 |
| 48818 | Rear stabilizer bar bushing | 48818-06270 |
| 48830A | Nut (for rear stabilizer link) | 90080-17227 |
| 48830D | Right rear stabilizer bar link assembly | 48830-06060 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06110 |
| 48840A | Left rear stabilizer bar link assembly | 48830-06060 |
