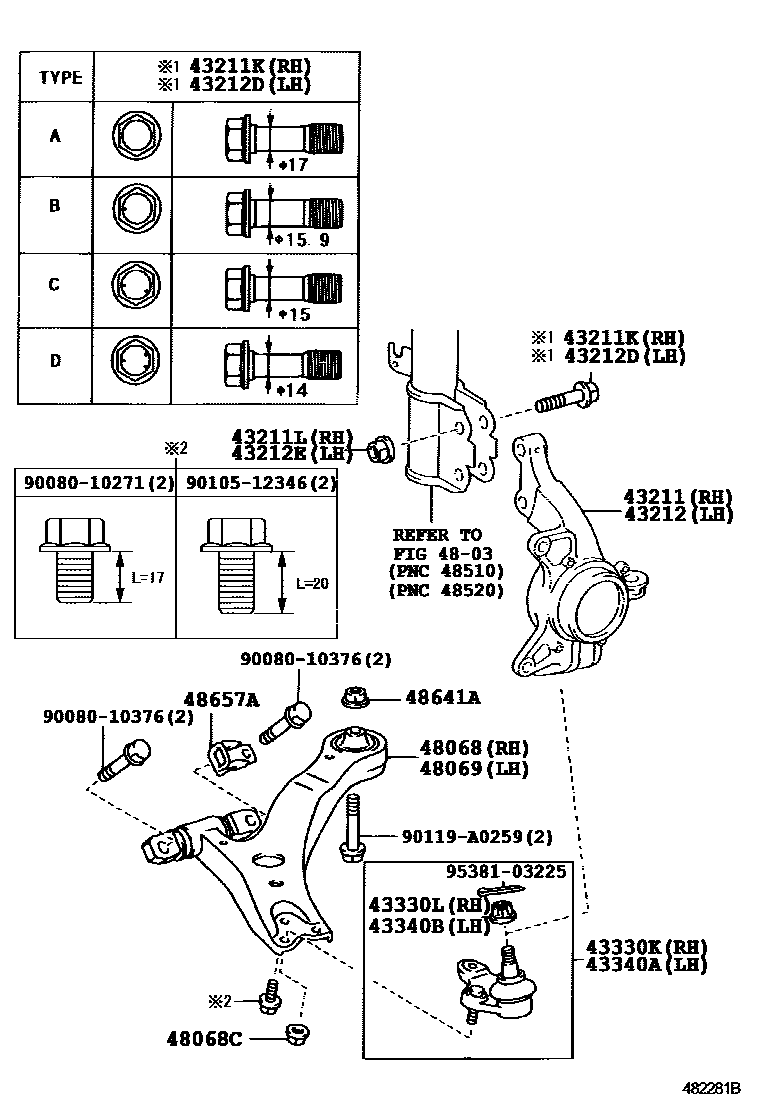

Toyota CAMRY 前桥控制臂和转向节 — Figure 4802
Toyota CAMRY EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-AA010 |
| 43211K | Bolt (for right steering knuckle) | 90105-17013 · 90105-17014 · 90105-17015 · 90105-A0052 |
| 43211L | Nut (for right steering knuckle) | 90178-A0027 |
| 43212 | left steering knuckle | 43212-AA010 |
| 43212D | Bolt (for left steering knuckle) | 90105-17013 · 90105-17014 · 90105-17015 · 90105-A0052 |
| 43212E | Nut (for left steering knuckle) | 90178-A0027 |
| 43330K | Right front lower ball joint assembly | 43330-09330 |
| 43330L | Castle nut (for right front lower ball joint) | 90080-17214 |
| 43340A | Left front lower ball joint assembly | 43340-09040 |
| 43340B | Castle nut (for left front lower ball joint) | 90080-17214 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-06150 |
| 48068C | Nut (for front suspension lower arm) | 90178-A0019 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-06150 |
| 48641A | Nut (for suspension lower arm shaft) | 90080-17223 |
| 48657A | Front lower arm bushing stop | 48657-06010 · 48657-28010 |
