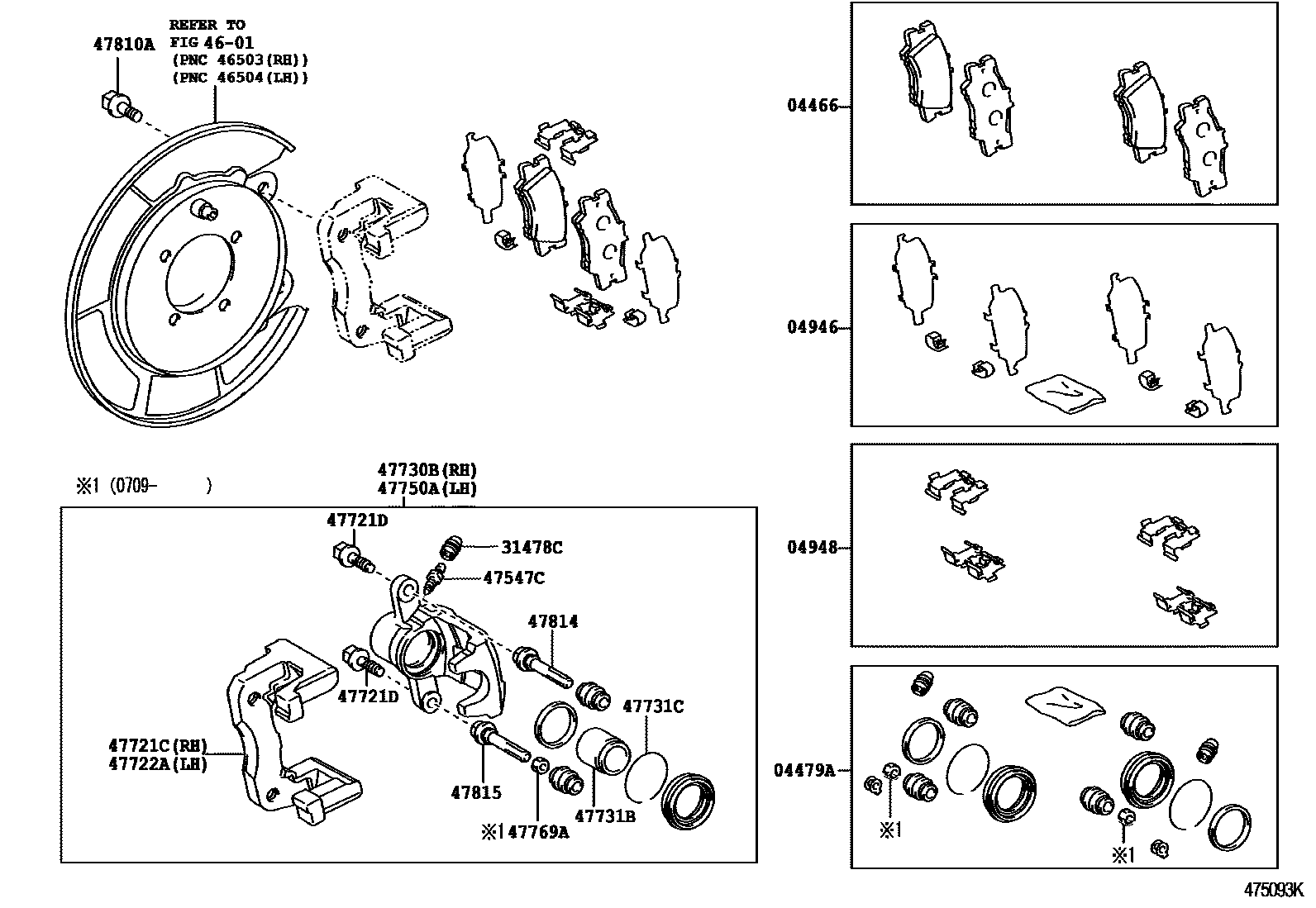

Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-06060 · 04466-06090 |
| 04479A | Rear disc brake cylinder assembly | 04479-06250 · 04479-06280 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-06070 |
| 04948 | Rear disc brake mounting assembly | 04948-06030 · 04948-06031 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12130 · 47547-20010 |
| 47721C | Right rear disc brake cylinder retainer | 47821-06050 · 47821-06052 · 47821-06053 · 47821-06054 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA604 |
| 47722A | Left rear disc brake cylinder retainer | 47822-06050 · 47822-06052 · 47822-06053 · 47822-06054 |
| 47730B | Right rear disc brake cylinder assembly | 47830-06050 · 47830-06052 · 47830-06053 |
| 47731B | rear disc brake piston | 47831-06050 |
| 47731C | retaining ring (for rear disc brake piston) | 90016-AU502 |
| 47750A | Left rear disc brake cylinder assembly | 47850-06050 · 47850-06052 · 47850-06053 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-06052 · 47879-06120 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90080-11440 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06050 · 47814-06120 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47814-06050 · 47814-06052 · 47815-06120 |
