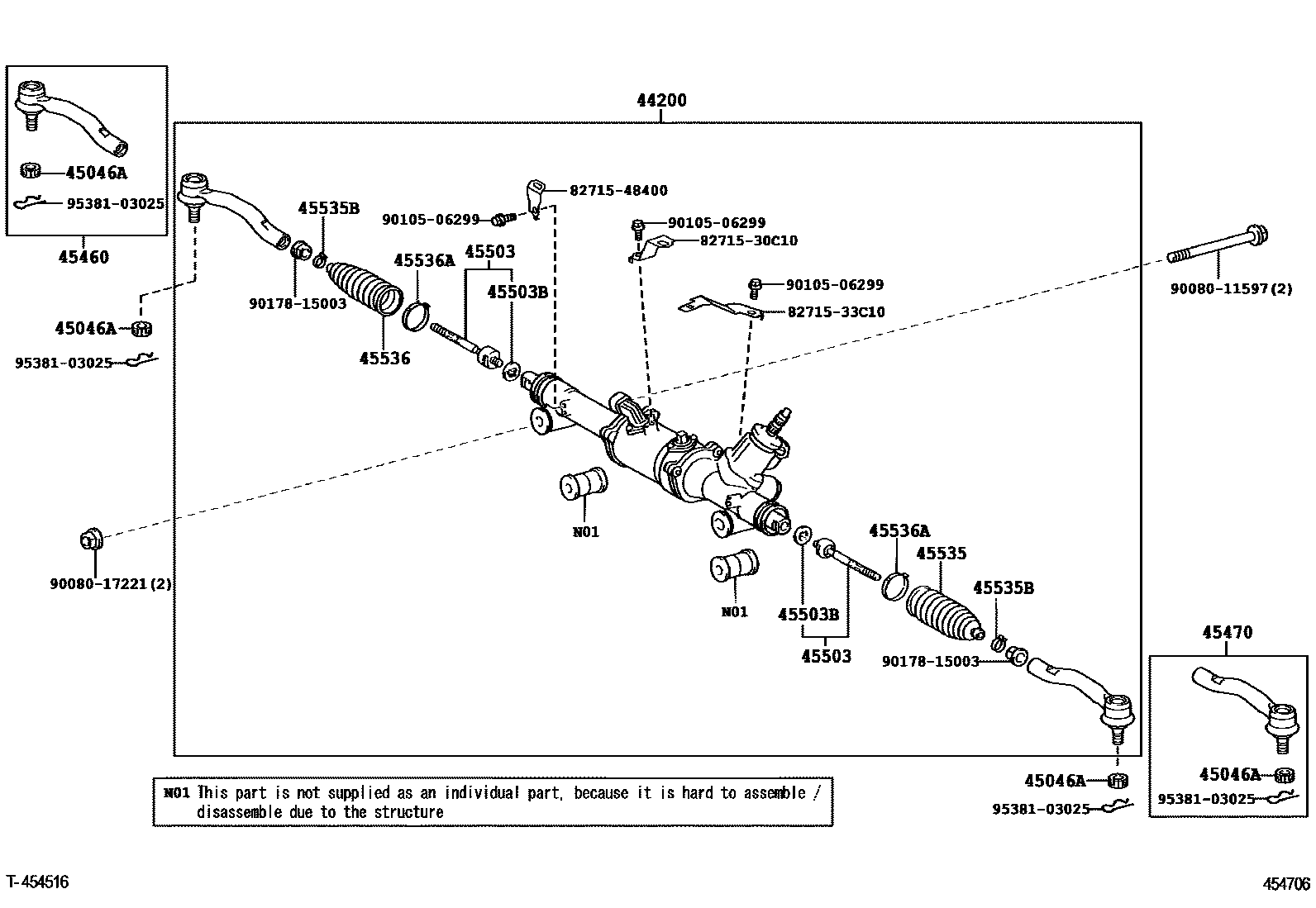

Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44200 | Power steering tie rod assembly | 44200-33471 · 44200-33472 |
| 45046A | Castle nuts (for tie rod ends) | 90080-17220 |
| 45460 | Right tie rod assembly | 45460-39635 |
| 45470 | Left tie rod assembly | 45470-39225 |
| 45503 | Steering rack end sub-assembly | 45503-39315 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45535 | No. 1 steering rack dust cover | 45535-30030 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19019 |
| 45536 | No. 2 steering rack dust cover | 45535-30030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-55016 |
