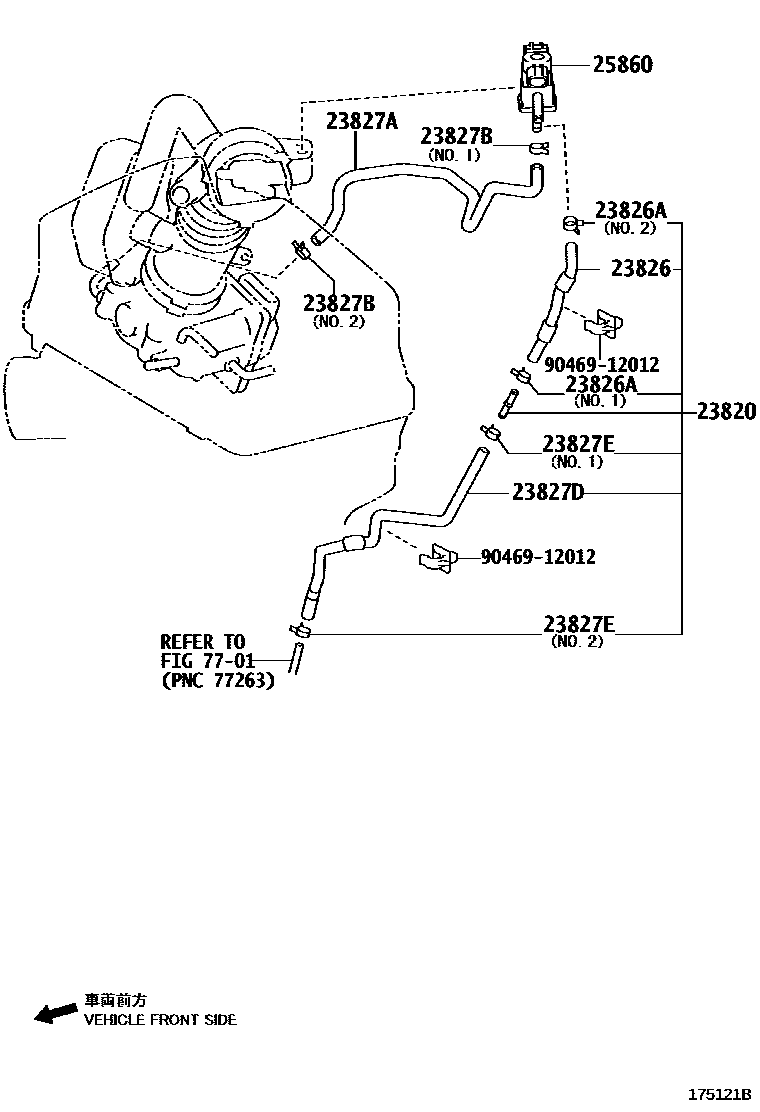

Toyota CAMRY vacuum tube — Figure 1708
Toyota CAMRY EPC diagram 1708, vacuum tube, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23820 | Fuel vapor supply hose assembly | 23820-0H150 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0H270 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90080-46347 · 90466-A0001 |
| 23827A | No. 2 fuel vapor supply hose | 23826-0H110 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90080-46347 · 90466-A0002 |
| 23827D | No. 2 fuel vapor supply hose | 23827-0H100 |
| 23827E | Clamp (for No. 2 fuel vapor supply hose) | 90080-46347 · 96132-51300 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0H080 · 25860-0V040 |
