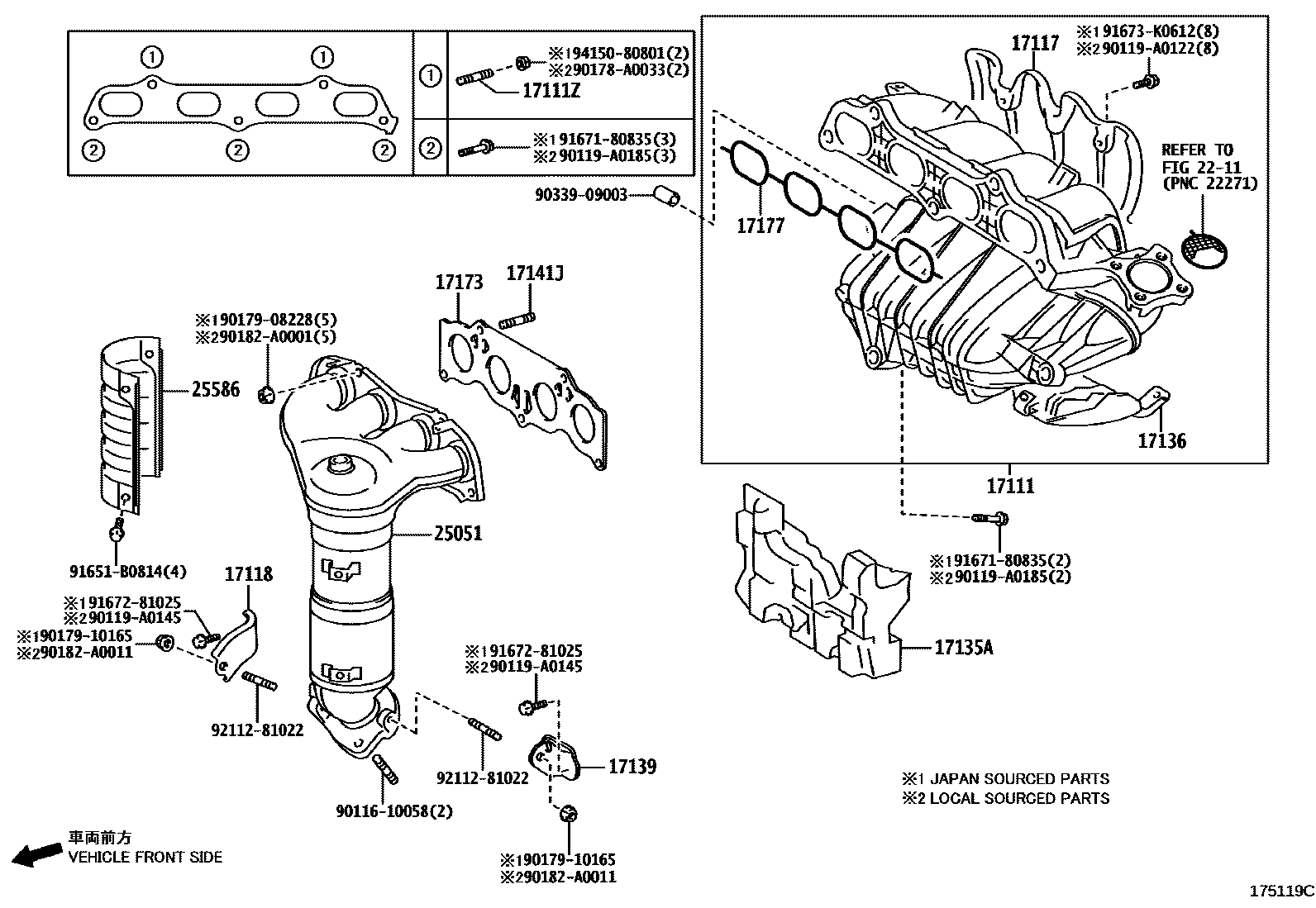

Toyota CAMRY Manifold — Figure 1701
Toyota CAMRY EPC diagram 1701, Manifold, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-0H050 · 17120-28140 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 · 90126-A0006 |
| 17117 | Intake pipe insulation pad | 17117-0H030 · 17117-28040 |
| 17118 | Manifold stays | 17118-28070 |
| 17135A | Intake manifold No. 1 heat shield | 17135-0H011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-28020 |
| 17139 | No. 2 manifold stay | 17139-28050 |
| 17141J | Studs (for right exhaust manifold) | 90126-08037 · 90126-A0007 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0H020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0H010 · 17177-28010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-28310 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-28110 |
