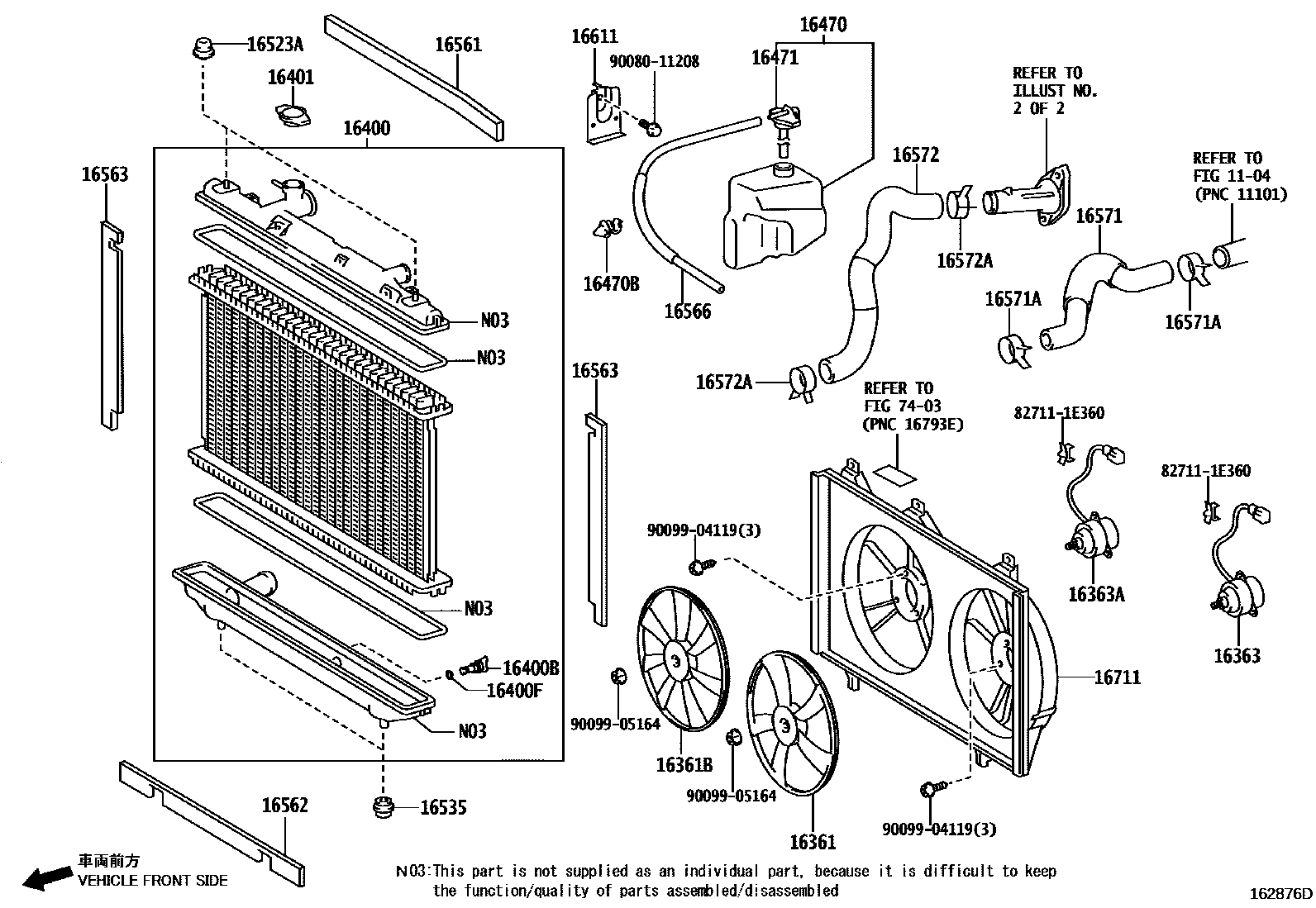

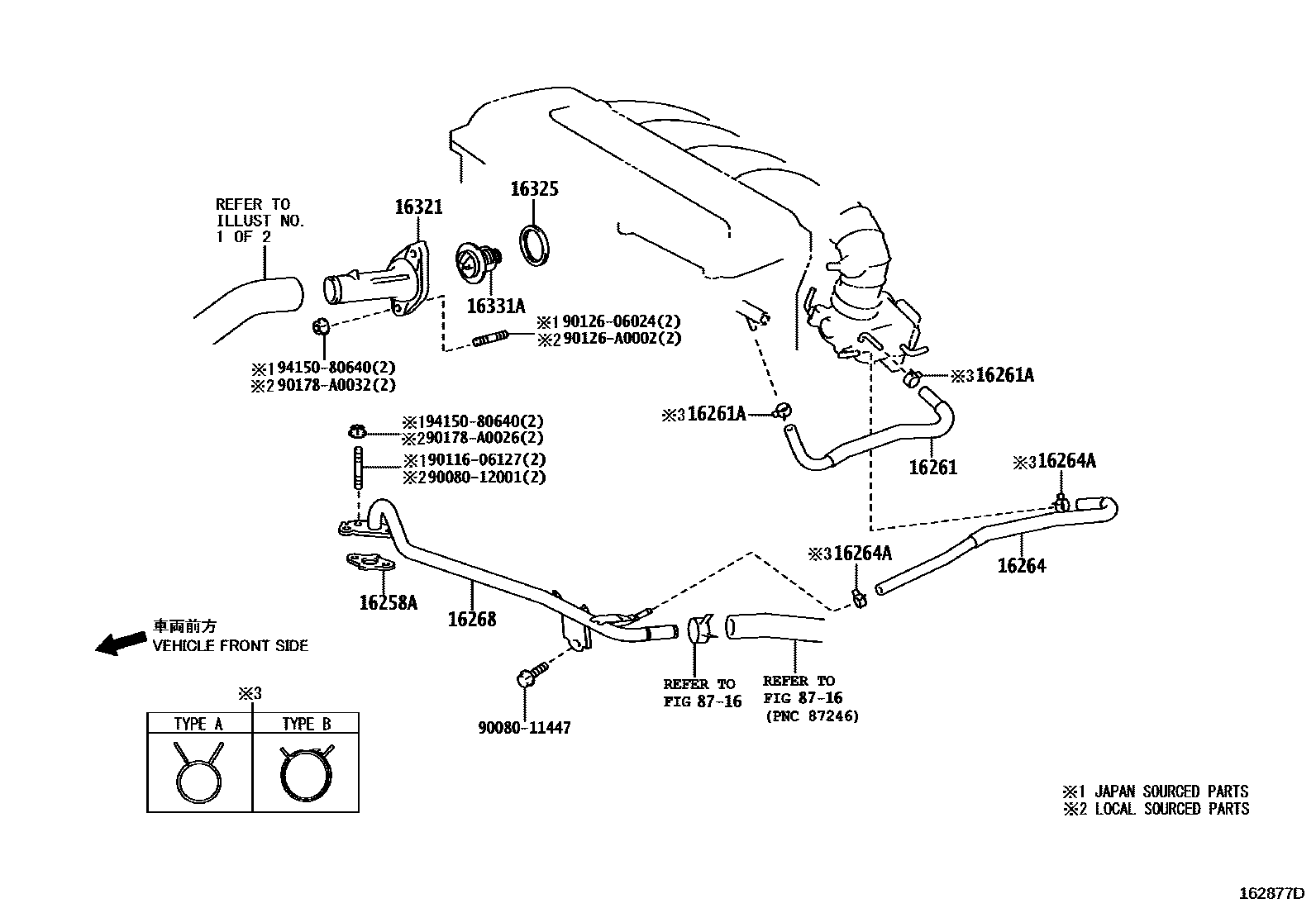

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H010 |
| 16261 | HOSE, WATER BY-PASS | 16261-28090 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96135-51300 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-28110 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0H090 |
| 16321 | water inlet | 16321-0H011 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 |
| 16331A | thermostat | 90916-03136 |
| 16361 | Fan | 16361-28280 |
| 16361B | Fan No. 2 | 16361-28270 |
| 16363 | cooling fan motor | 16363-28270 |
| 16363A | Cooling fan motor No. 2 | 16363-28270 |
| 16400 | Radiator assembly | 16400-28550 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 · 16401-62100 |
| 16470 | Radiator reservoir assembly | 16470-0P020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90469-12014 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-AA010 |
| 16523A | Radiator bracket cushion | 16523-AD010 |
| 16535 | Radiator lower support | 16535-0H030 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-28031 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-28010 |
| 16563 | Seal No. 3 (radiator to bracket) | 16563-28010 |
| 16566 | Liquid storage tank outlet hose | 16566-0H010 |
| 16571 | Radiator water inlet hose | 16571-0H170 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90080-46344 · 90466-A0020 |
| 16572 | Radiator outlet hose | 16572-0H090 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90080-46344 · 90466-A0020 |
| 16611 | Radiator reservoir bracket | 16611-0A010 |
| 16711 | fan cover | 16711-28310 |
