Toyota CAMRY Water Pump — Figure 1601

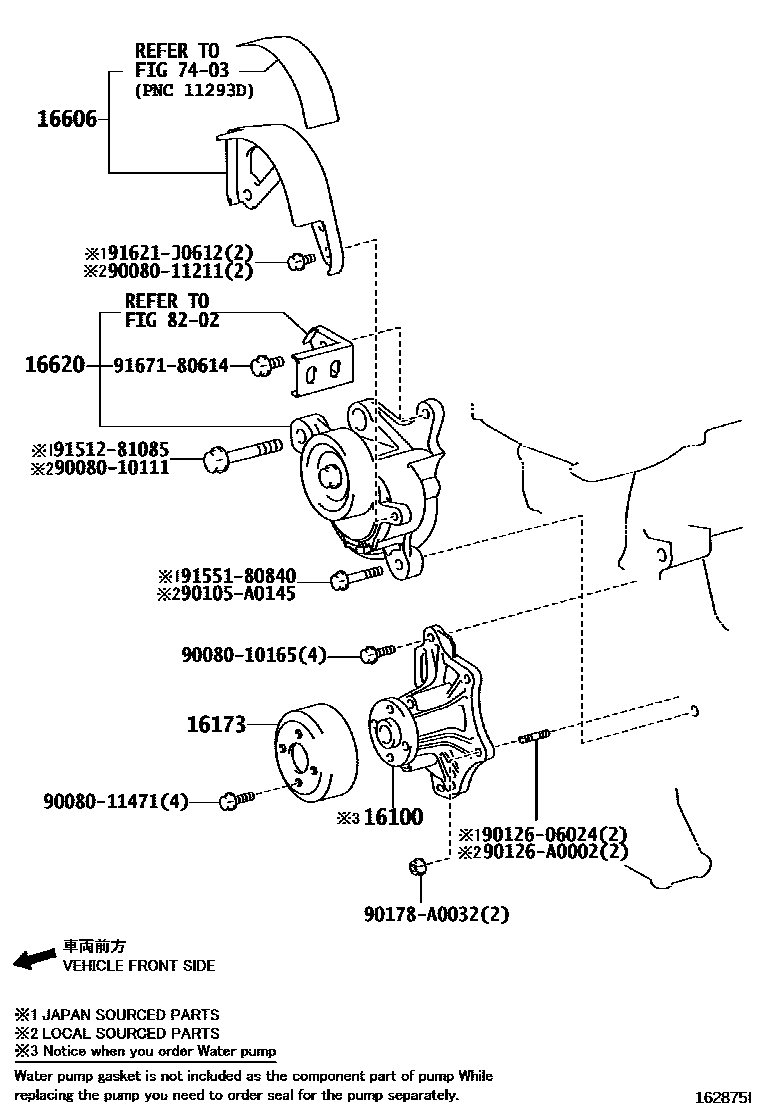

Toyota CAMRY EPC diagram 1601, Water Pump, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-0H010 · 16100-28041 |
| 16173 | water pump pulley | 16173-28020 |
| 16606 | Poly V-belt tensioner cover sub-assembly | 16606-28020 |
| 16620 | Poly V-belt tensioner assembly | 16620-28050 |
