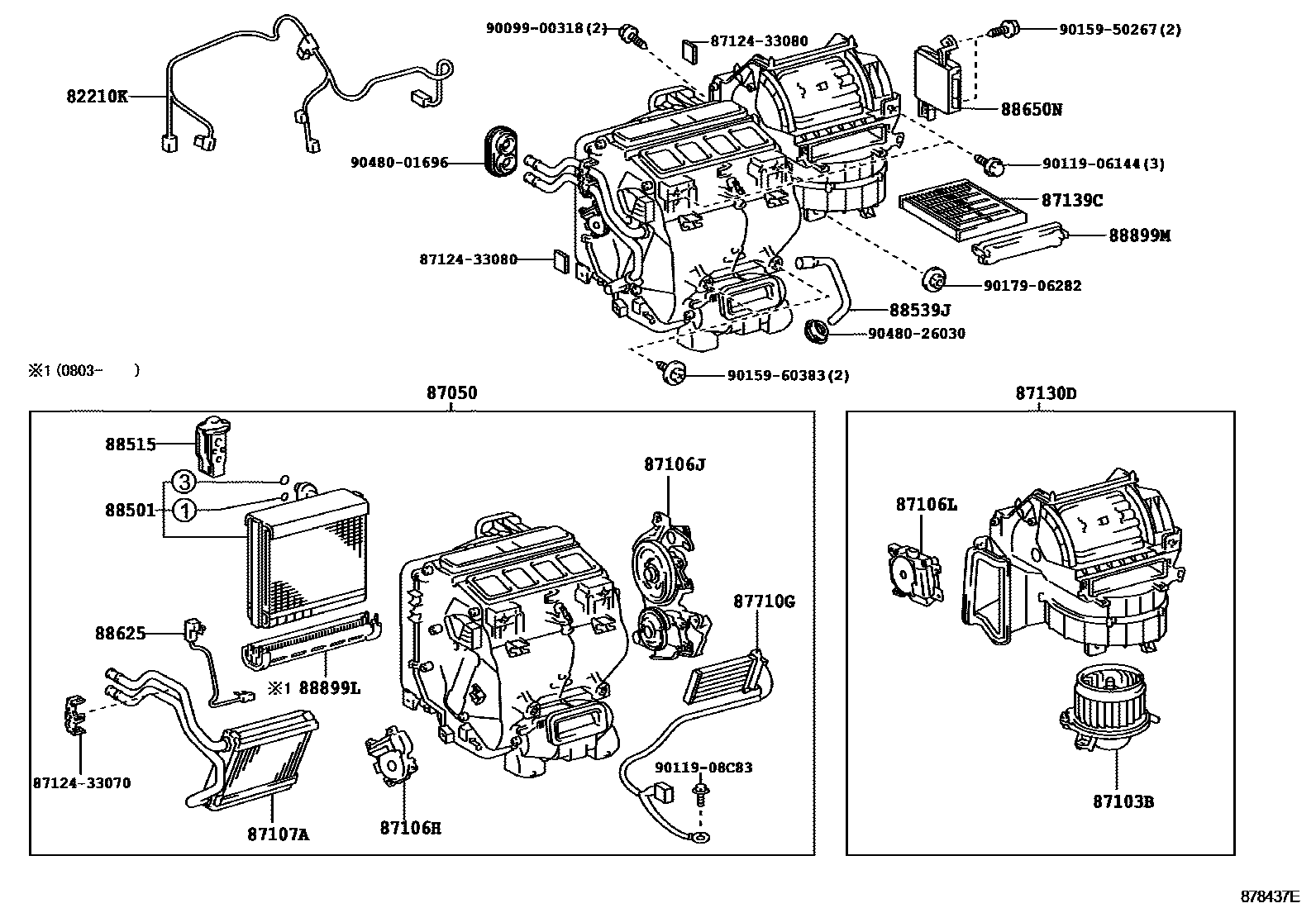

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-33020 · 82212-33021 |
| 87050 | Air conditioning radiator assembly | 87050-33610 · 87050-33611 · 87050-33612 · 87050-33613 |
| 87103B | Blower motor sub-assembly with fan | 87103-33090 · 87103-48080 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-33260 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-33250 · 87106-33290 |
| 87106L | Damper servo mechanism sub-assembly | 87106-33270 |
| 87107A | Heater radiator device sub-assembly | 87107-33120 |
| 87130D | Blower assembly | 87130-33200 · 87130-48200 · 87130-48220 |
| 87139C | air purification filter | 87139-30040 · 87139-50060 |
| 87710G | Rapid heater assembly | 87710-33010 · 87710-33011 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-28410 · 88501-33120 · 88501-33180 · 88501-33210 · 88501-48300 · 88501-48301 |
| 88515 | Cooler expansion valve | 88515-33020 |
| 88539J | Cooler drain hose | 88539-33090 |
| 88625 | Cooler No. 1 Thermistor | 88625-33190 |
| 88650N | Air conditioning amplifier assembly | 88650-33770 · 88650-33771 · 88650-33A10 · 88650-33A11 · 88650-33A20 |
| 88899L | Cooling unit parts | 88899-33050 |
| 88899M | cover (for air cleaner) | 88899-33040 |
