Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 4 PNC and OE references.

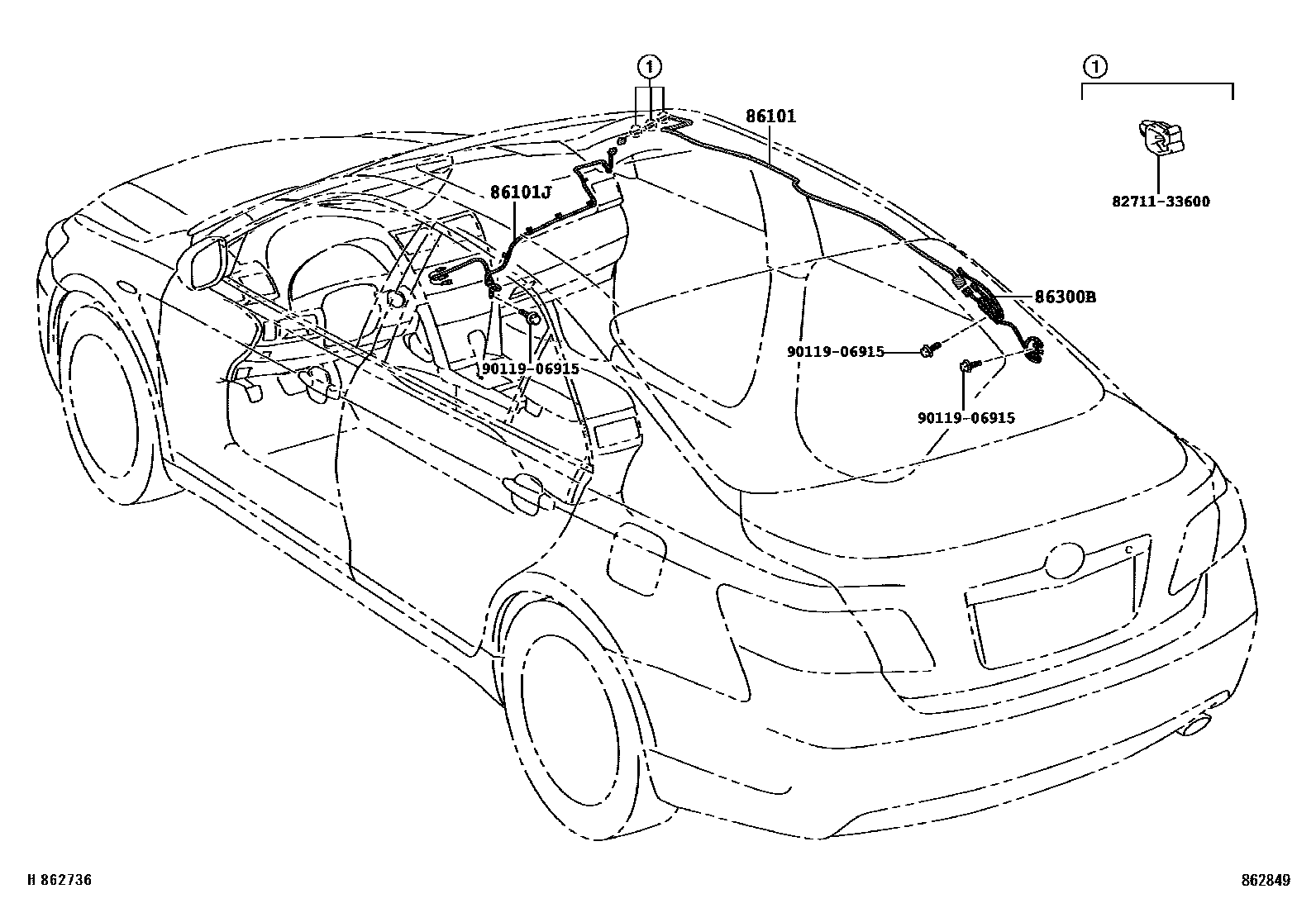

Toyota CAMRY antenna EPC diagram — 862849
antenna — 862849 (200603 – 200901)

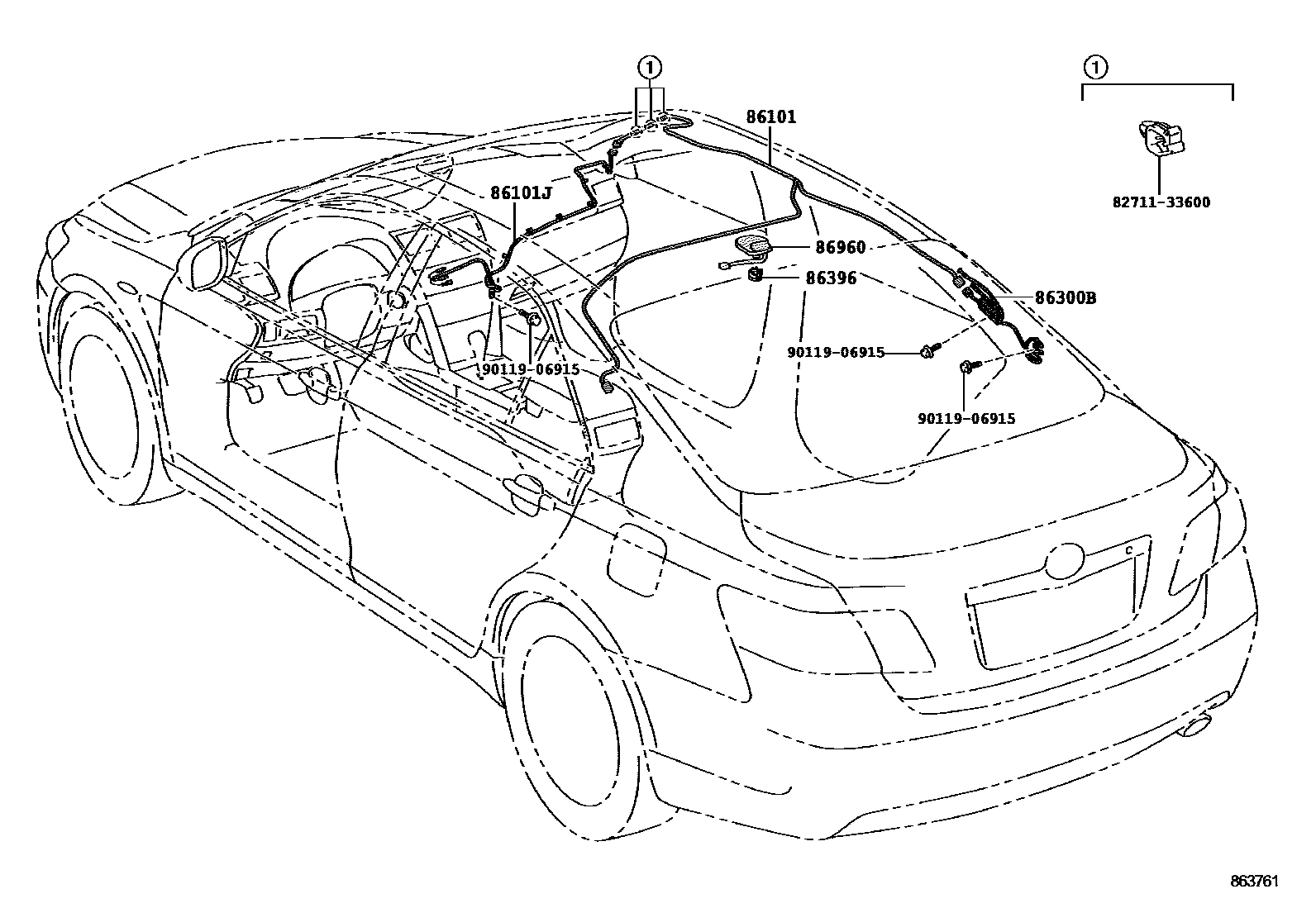

Toyota CAMRY antenna EPC diagram — 863761
antenna — 863761 (200901 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-33550 · 86101-33551 · 86101-33570 · 86101-33571 · 86101-33720 · 86101-33721 · 86101-33730 · 86101-33731
86101JNo. 2 antenna wire sub-assembly86101-33590 · 86101-33591 · 86101-33740 · 86101-33741 · 86101-33780 · 86101-33781
86300BAmplifier antenna assembly86300-33310 · 86300-33311
86396Antenna nut86396-30050 · 86396-47010
