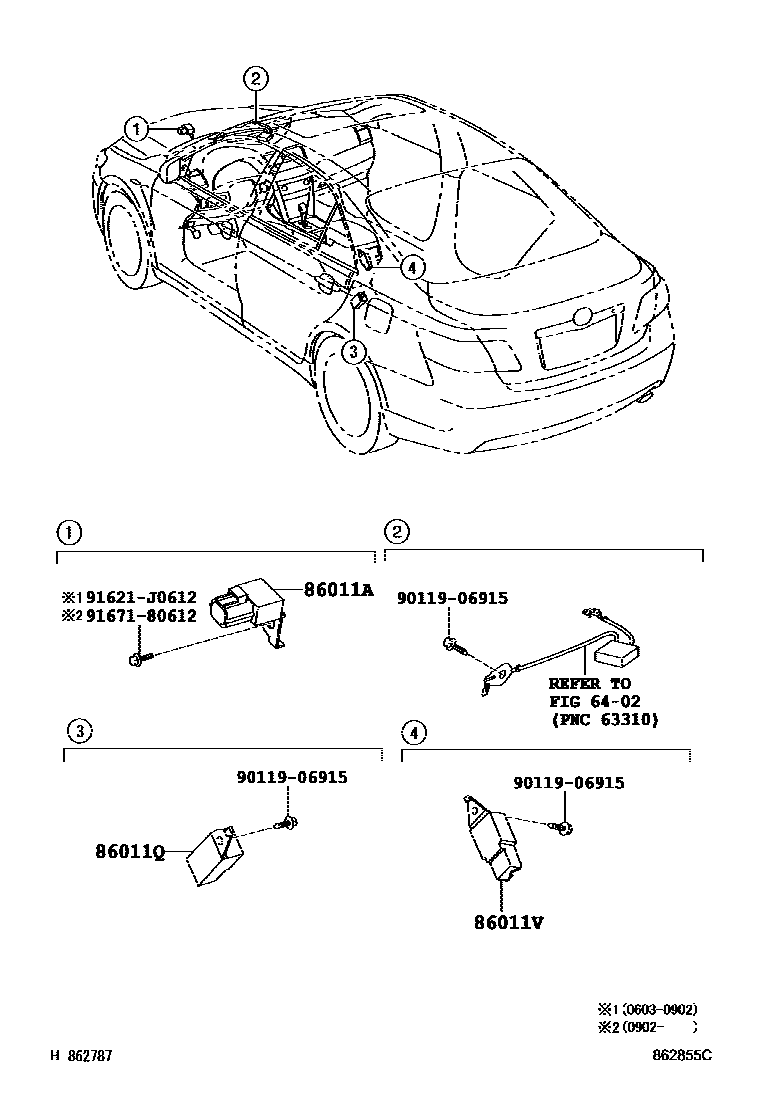

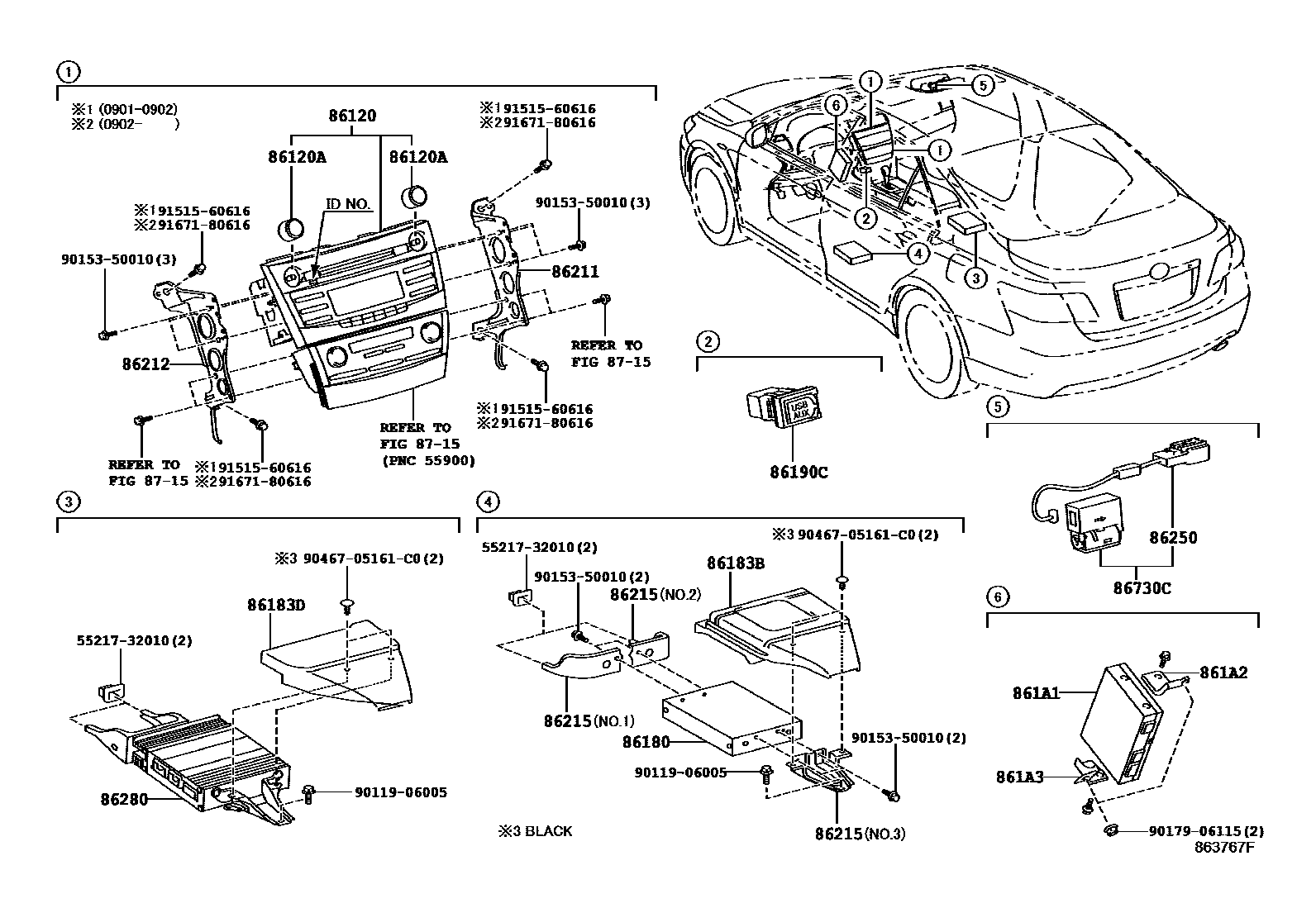

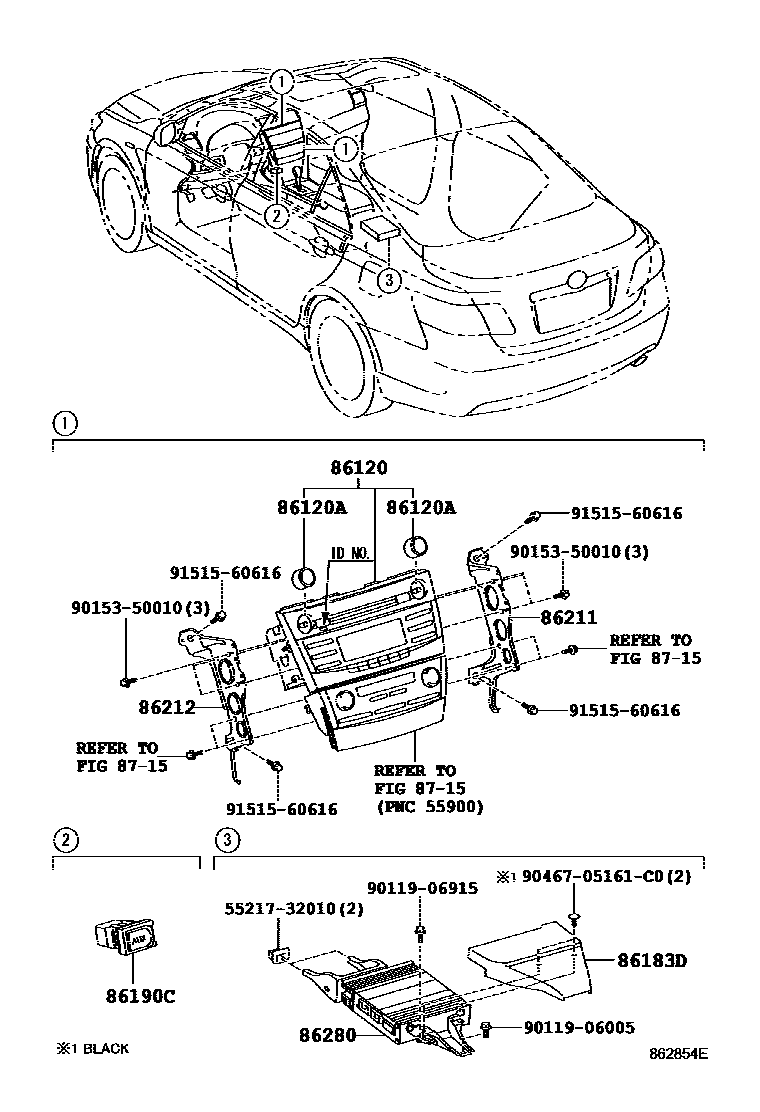

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04157 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86011V | radio settings phase modulator | 90980-04198 |
| 86120 | Radio assembly | 86120-33A00 · 86120-33A01 · 86120-33D10 · 86120-33D20 |
| 86120A | Radio switch knob | 90010-23024 · 90011-23017 |
| 86180 | Stereo parts tuner assembly | 86180-50300 · 86180-50310 |
| 86183B | Audio stand cover | 86183-33030 |
| 86183D | audio amplifier cover | 86183-33010 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-48010 · 86190-48030 · 86190-53010 |
| 861A1 | Multimedia interface ECU | 861A0-48030 |
| 861A2 | Multimedia interface bracket No. 1 | 861A2-33010 |
| 861A3 | Multimedia interface bracket No. 2 | 861A3-33010 |
| 86211 | No. 1 radio bracket | 86211-33210 |
| 86212 | No. 2 radio bracket | 86212-33210 |
| 86215 | No. 5 radio bracket | 86215-33010 · 86215-33020 · 86215-33030 |
| 86250 | amplifier loudspeaker assembly | 86250-52030 |
| 86280 | Stereo parts amplifier assembly | 86280-0W390 · 86280-0W391 |
| 86730C | Telephone amplifier assembly | 86730-73010 |
