Toyota CAMRY HV控制ECU — Figure 8433

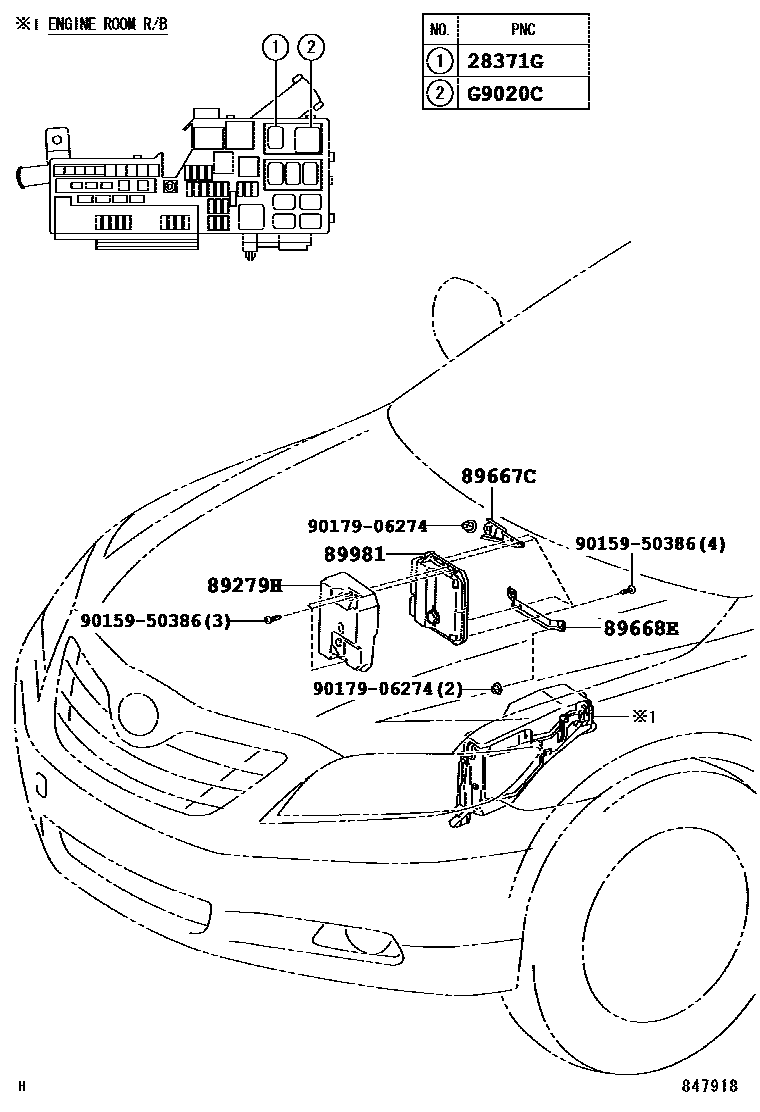

Toyota CAMRY EPC diagram 8433, HV控制ECU, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28371G | Ignition contact relay | 90987-02027 |
| 89279H | ECU cover | 89279-33010 |
| 89667C | No. 1 engine control ECU bracket | 89667-33140 |
| 89668E | No. 2 engine control ECU bracket | 89668-33190 |
| 89981 | Hybrid vehicle control ECU | 89981-33011 · 89981-33012 · 89981-33013 · 89981-33030 · 89981-33050 · 89981-33070 · 89981-33071 · 89981-33130 |
| G9020C | oil pump relay | 90987-02025 |
