Toyota CAMRY HV逆变器 — Figure 8431

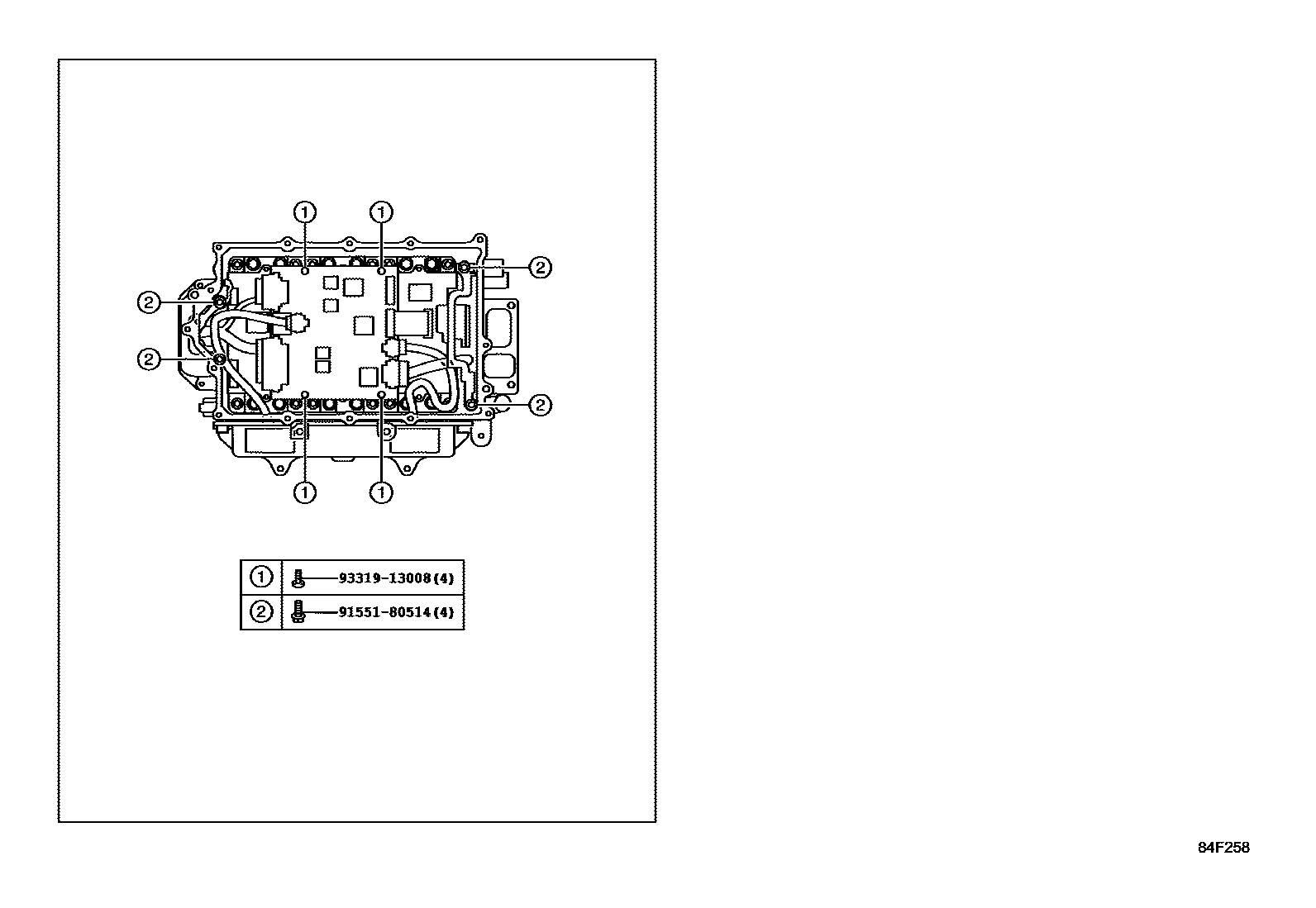

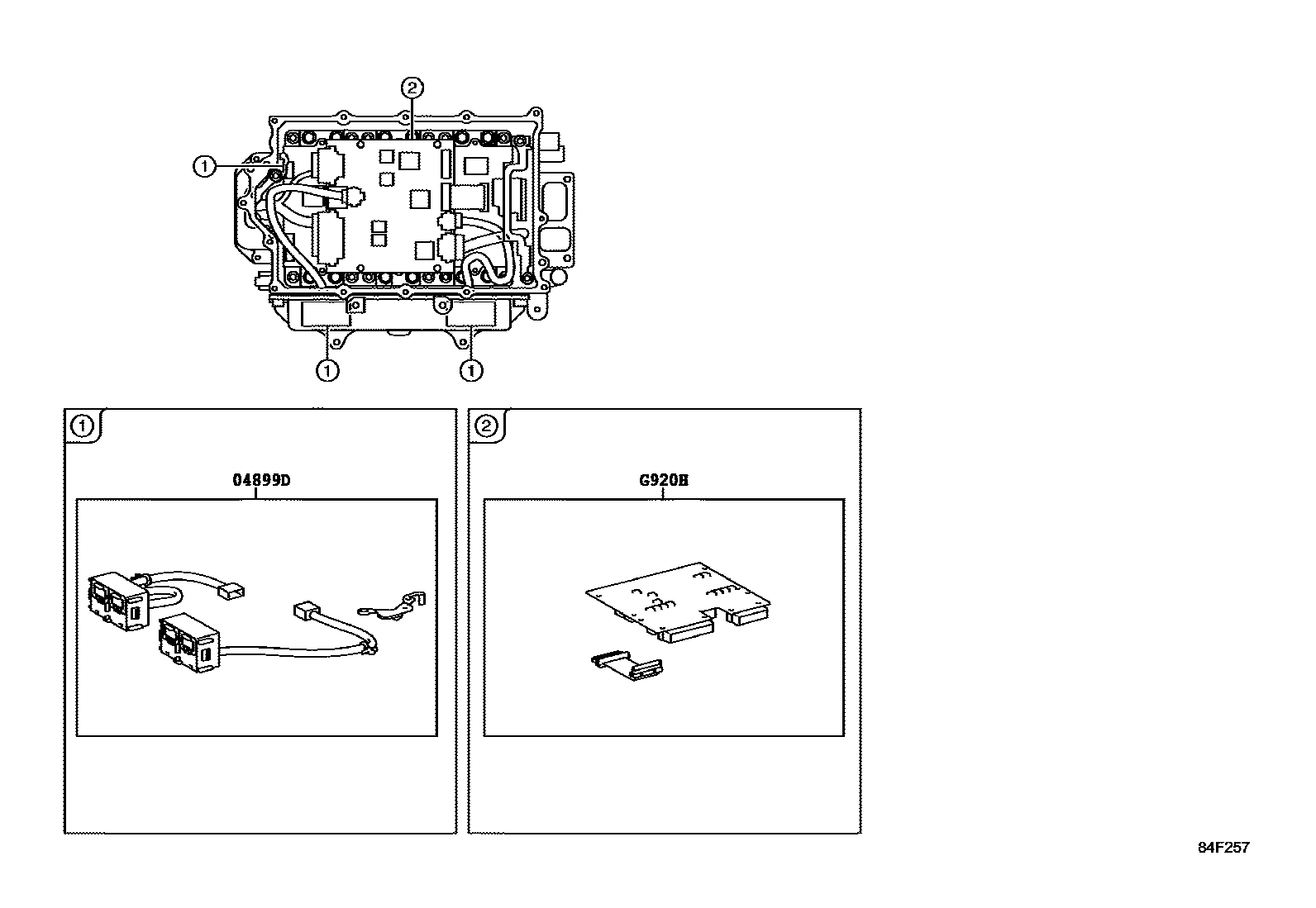

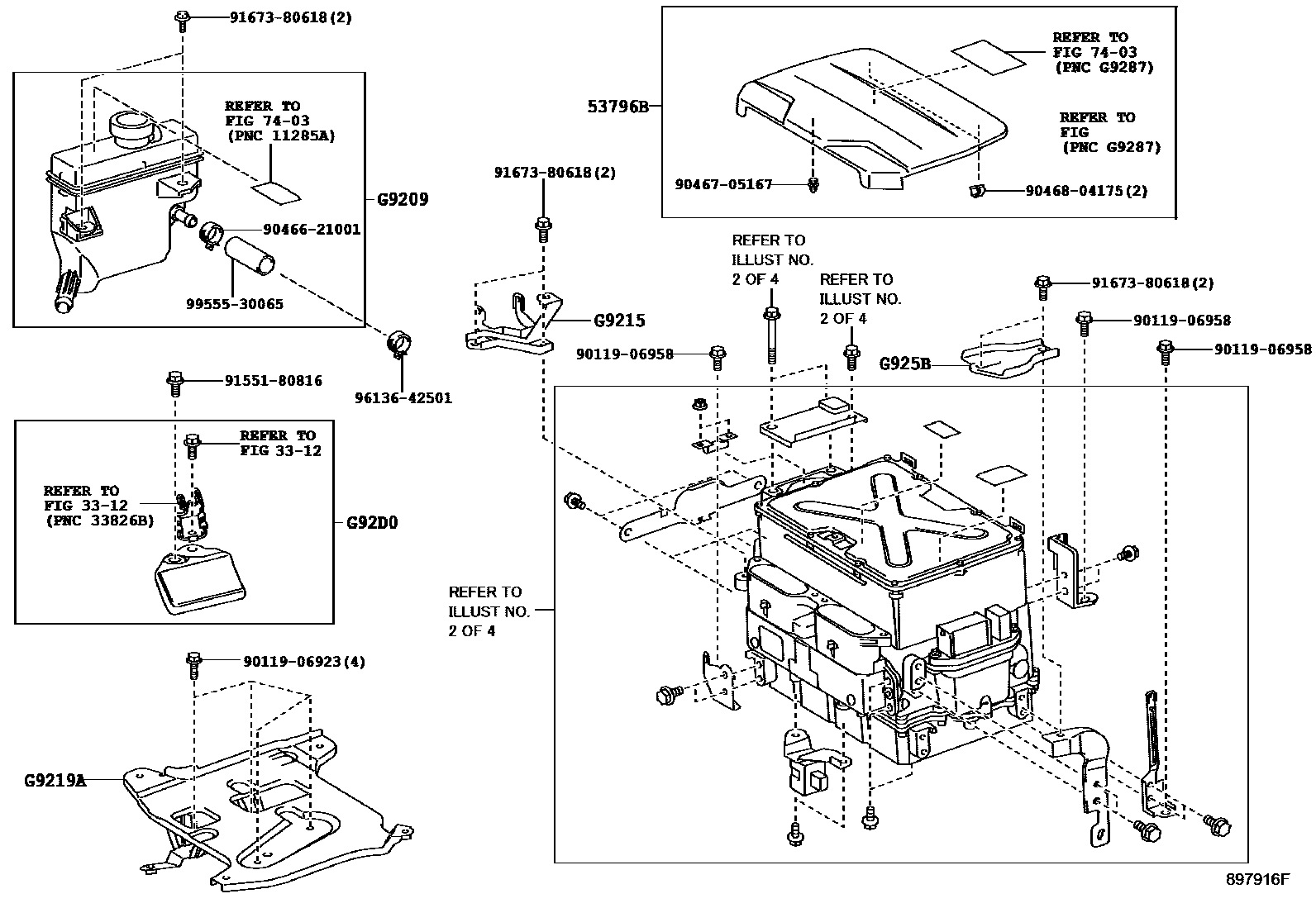

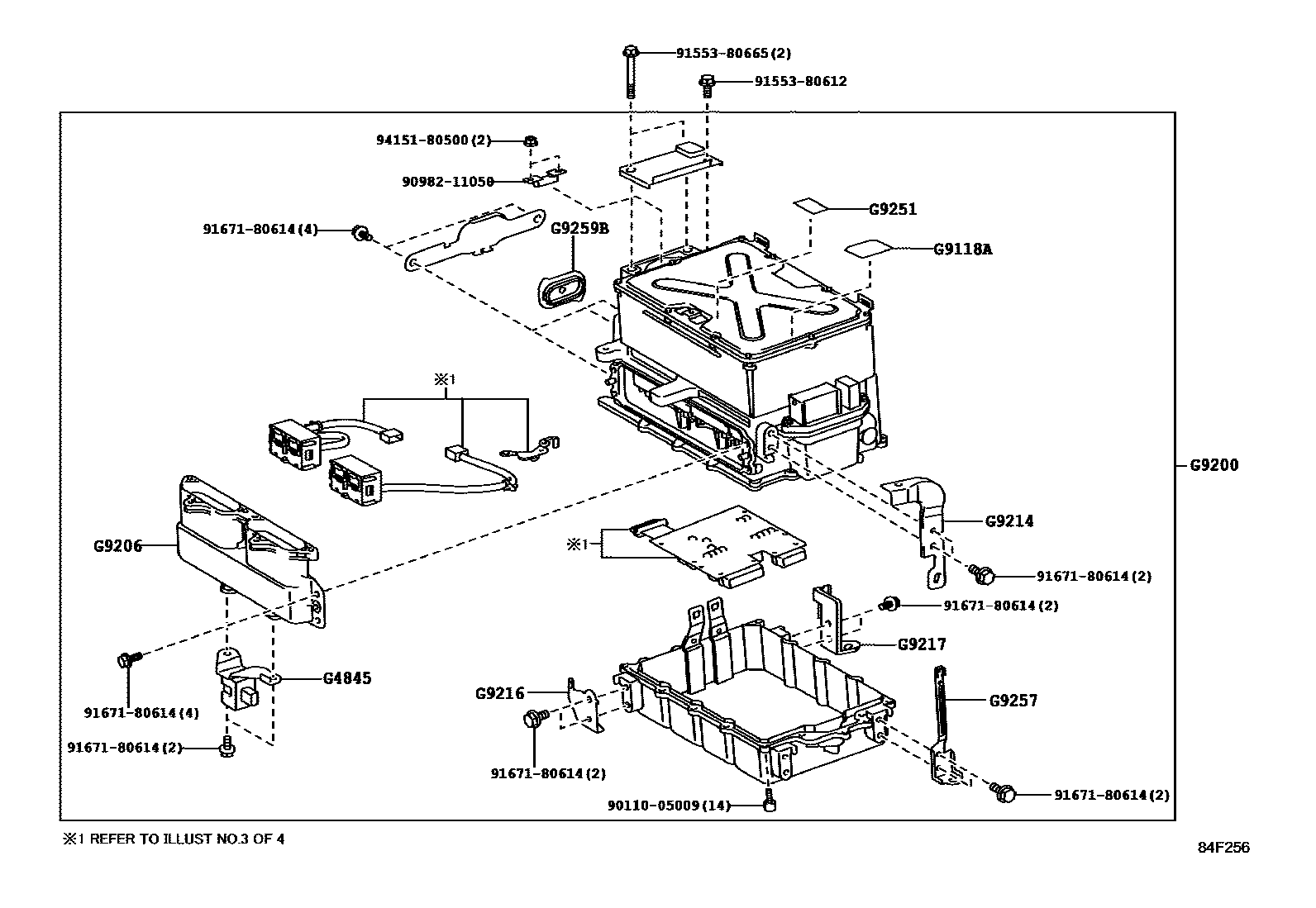

Toyota CAMRY EPC diagram 8431, HV逆变器, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899D | KIT CAPTEUR, INVERSEUR DE COURRANT (IPM AVANT) | 04899-33020 |
| 53796B | No. 2 engine room left side cover | 51470-33010 |
| G4845 | No. 1 circuit breaker sensor | G4845-33010 |
| G9118A | No. 1 Electric Vehicle Device Controller Warning Label | G9118-30020 |
| G9200 | Inverter assembly with converter | G9200-33020 · G9200-33050 · G9200-33100 |
| G9206 | SOUS-ENS. CONNECTEUR, INVERSEUR AVEC CAPTEUR | G9206-33010 |
| G9209 | Inverter liquid tank sub-assembly | G9209-33010 |
| G920H | SOUS-ENS. ORDINATEUR, COMMANDE GENERATEUR MOTEUR | 89807-33010 |
| G9214 | No. 1 inverter bracket | G9214-33010 |
| G9215 | No. 2 inverter bracket | G9215-33010 |
| G9216 | No. 3 inverter bracket | G9216-33010 |
| G9217 | No. 4 inverter bracket | G9217-33010 |
| G9219A | Inverter tray bracket | G9219-33010 |
| G9251 | Inverter nameplate | G9251-47010 |
| G9257 | No. 5 inverter bracket | G9257-33010 · G9257-33011 |
| G9259B | BOUCHON, VIDANGE INVERSEUR | G9259-33010 |
| G925B | No. 6 inverter bracket | G925B-33010 |
| G92D0 | HV inverter protection device assembly | G92D0-33010 |
