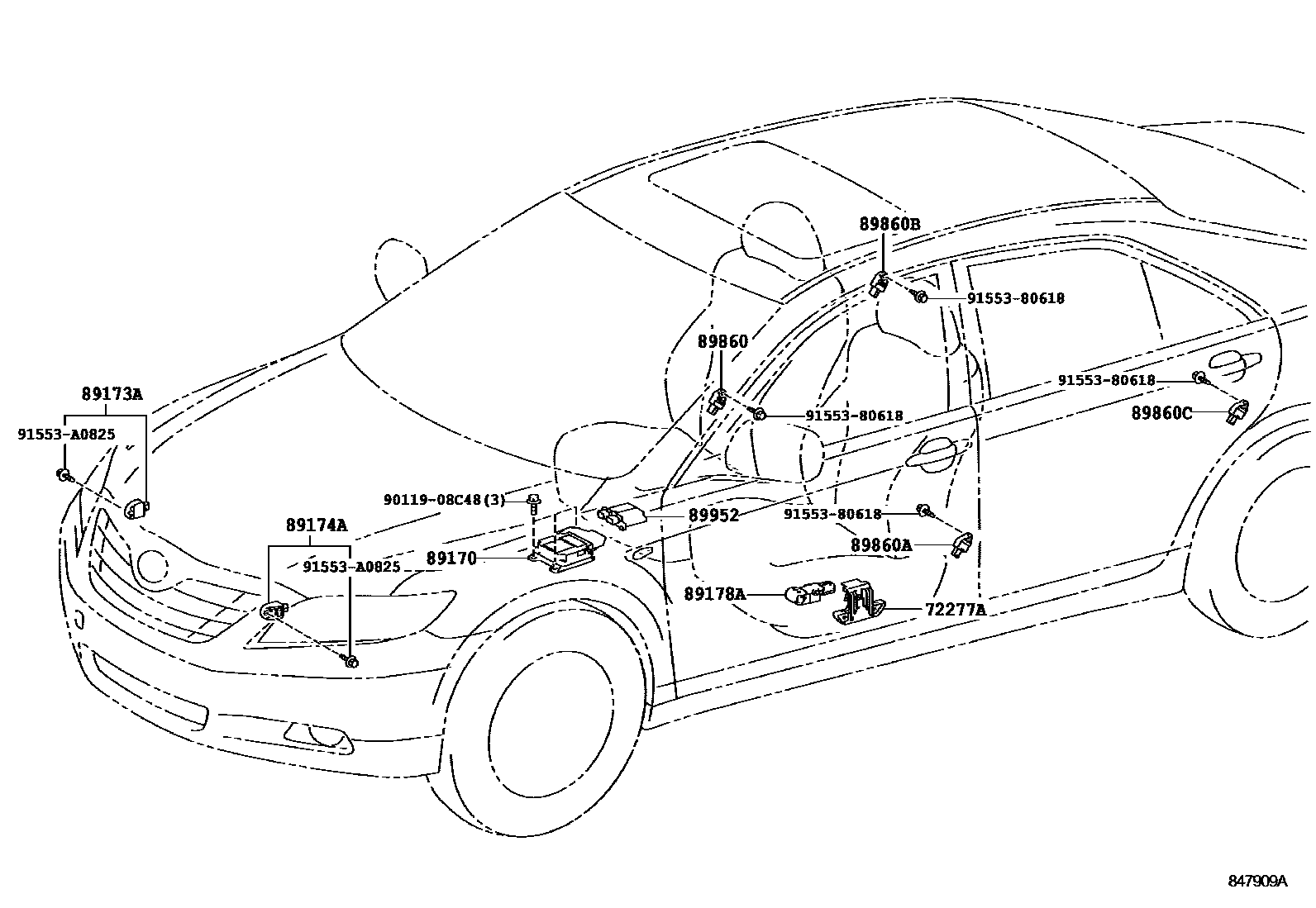

Toyota CAMRY 空气囊 — Figure 8421
Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-33021 |
| 89170 | air bag sensor assembly | 89170-33490 · 89170-33491 |
| 89173A | Right front air bag sensor | 89173-39365 |
| 89174A | Left front air bag sensor | 89173-39365 |
| 89178A | Seat position air bag sensor | 89178-33050 |
| 89860 | Right side airbag sensor assembly | 89831-42010 |
| 89860A | Left side air bag sensor assembly | 89831-42010 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-33030 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-33030 |
| 89952 | Occupant detection ECU | 89952-35011 |
