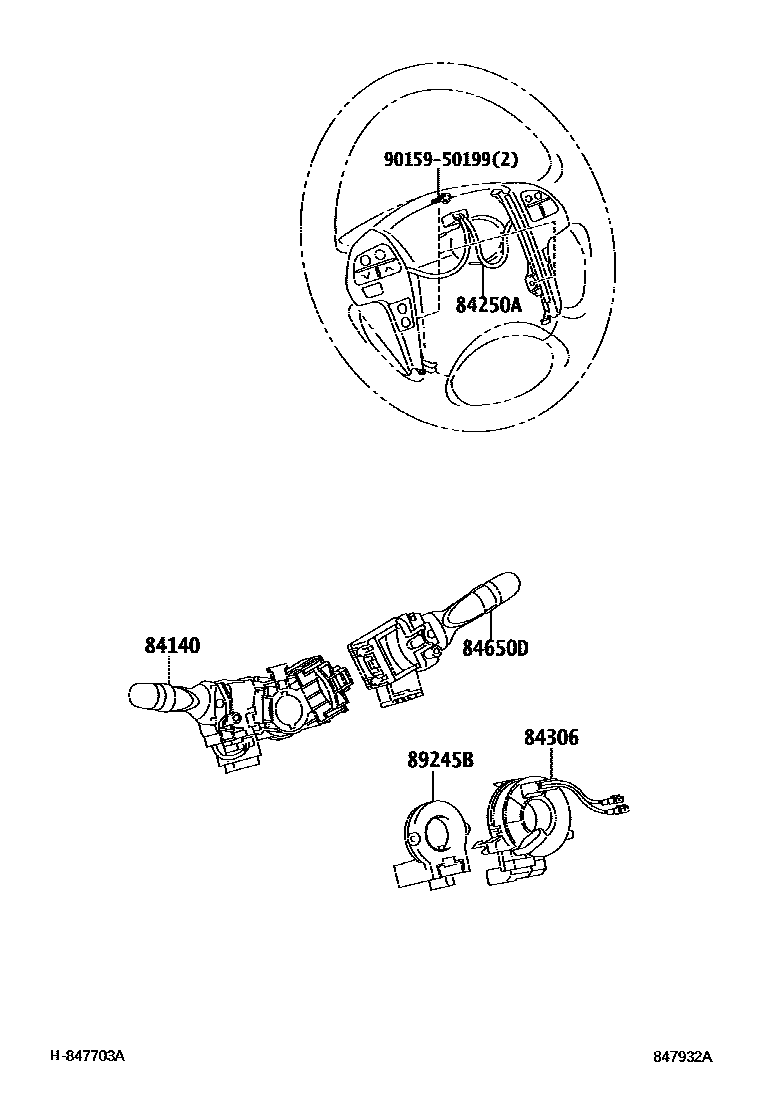

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 9 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02028 |
| 28371 | No. 1 ignition relay | 90987-02025 · 90987-02030 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 81980 | Turn signal flasher relay assembly | 81980-30170 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-07050 |
| 82620B | Fuse box assembly | 82620-33030 |
| 82620D | Fuse box assembly | 82620-33040 |
| 82660B | Relay assembly | 82660-07010 |
| 82660F | Relay assembly | 82660-33010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-33170 |
| 82662B | No. 2 relay box upper cover | 82662-33190 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82663A | No. 2 relay box lower cover | 82663-33090 |
| 82672A | Junction box cover | 82672-33320 |
| 82673A | Junction box bracket | 82673-33020 |
| 82675B | Terminal block | 82675-44010 |
| 82715 | Wire harness clamp bracket | 82715-33C20 |
| 82720 | Engine room junction box assembly | 82720-33070 · 82720-33071 · 82720-33110 |

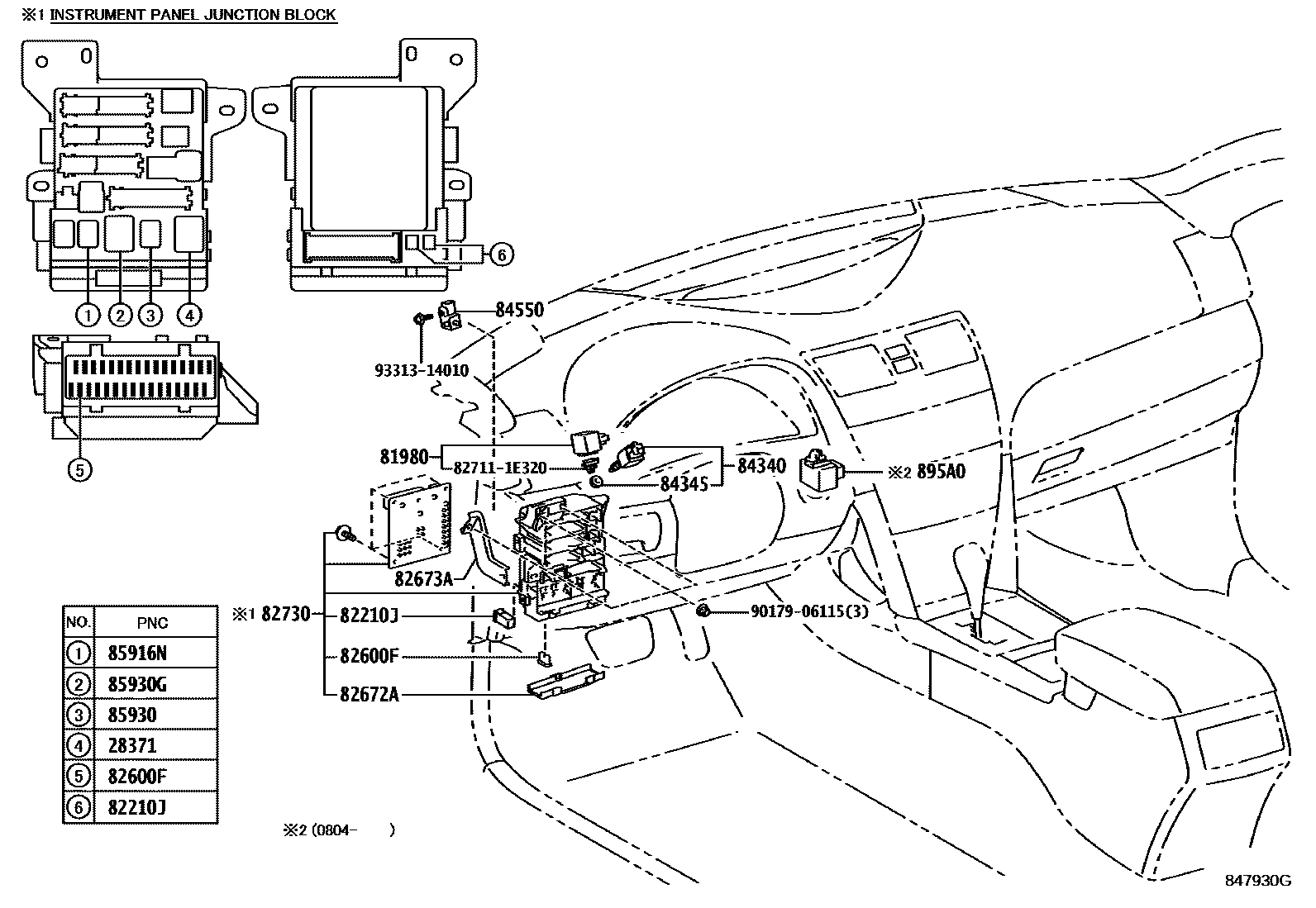

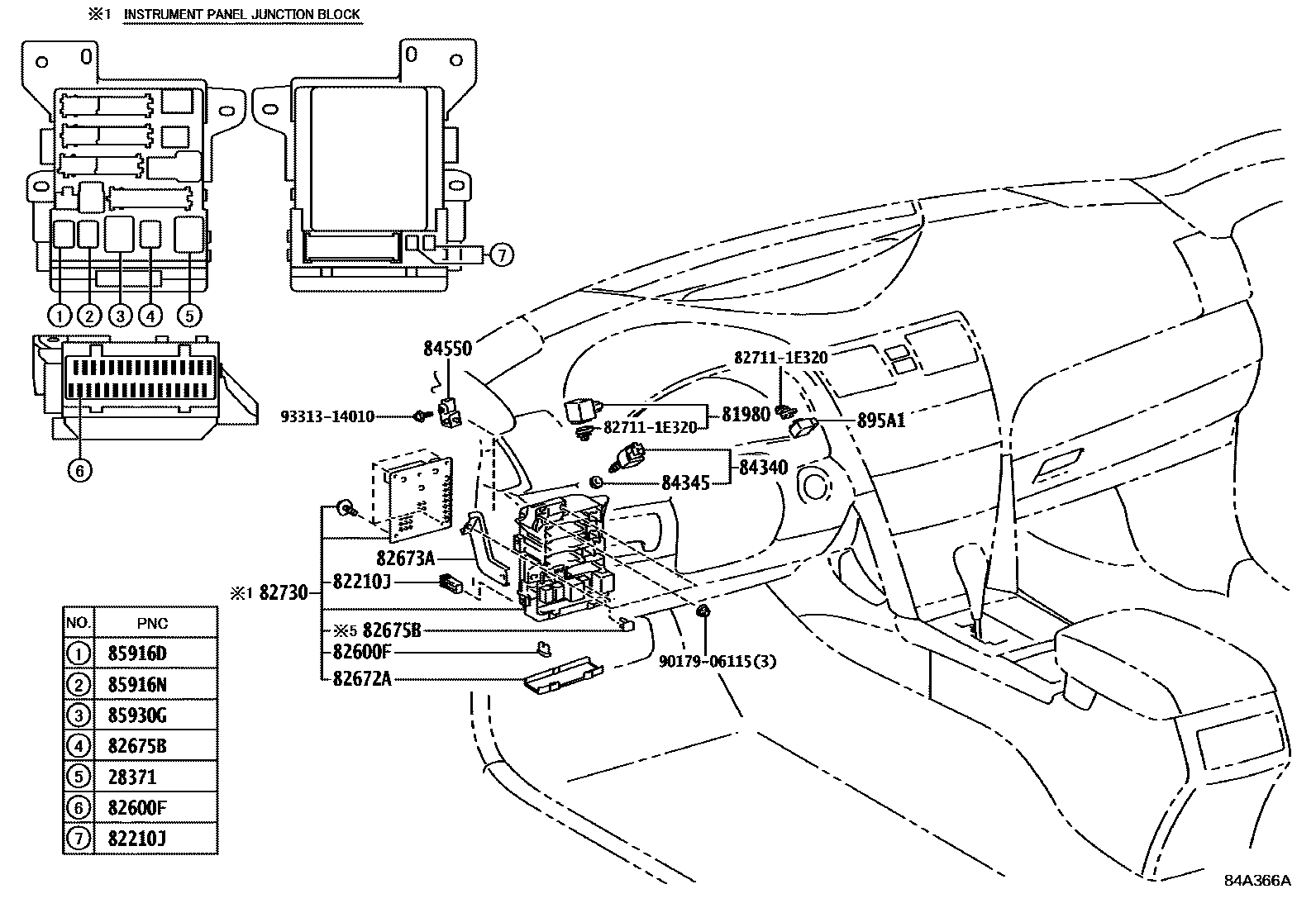

| 82730 | Instrument panel junction box assembly | 82730-33760 · 82730-33761 · 82730-33770 · 82730-33771 · 82730-33D30 · 82730-33D40 · 82730-33D90 |

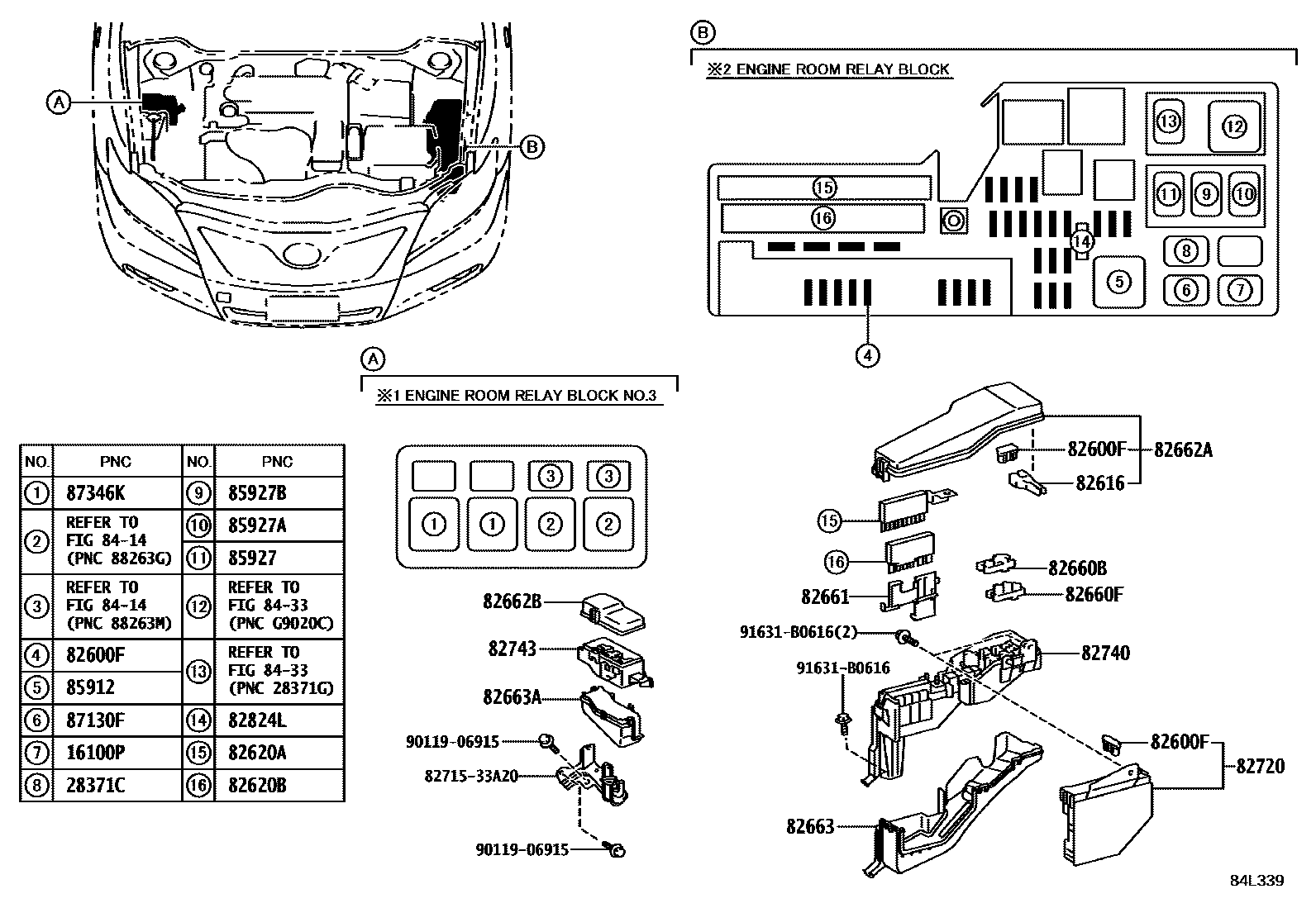

| 82740 | Engine room relay box assembly | 82740-33010 |
| 82743 | Engine room No. 3 relay box | 82743-33030 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-33120 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 · 83530-AA011 |
| 84140 | Headlight dimmer switch assembly | 84140-33201 · 84140-33210 · 84140-33211 · 84140-47071 · 84140-47120 · 84140-48200 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-33130 |
| 84306 | Spiral cable sub-assembly | 84306-48030 |
| 84340 | brake light switch assembly | 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-12A20 · 84652-47031 |

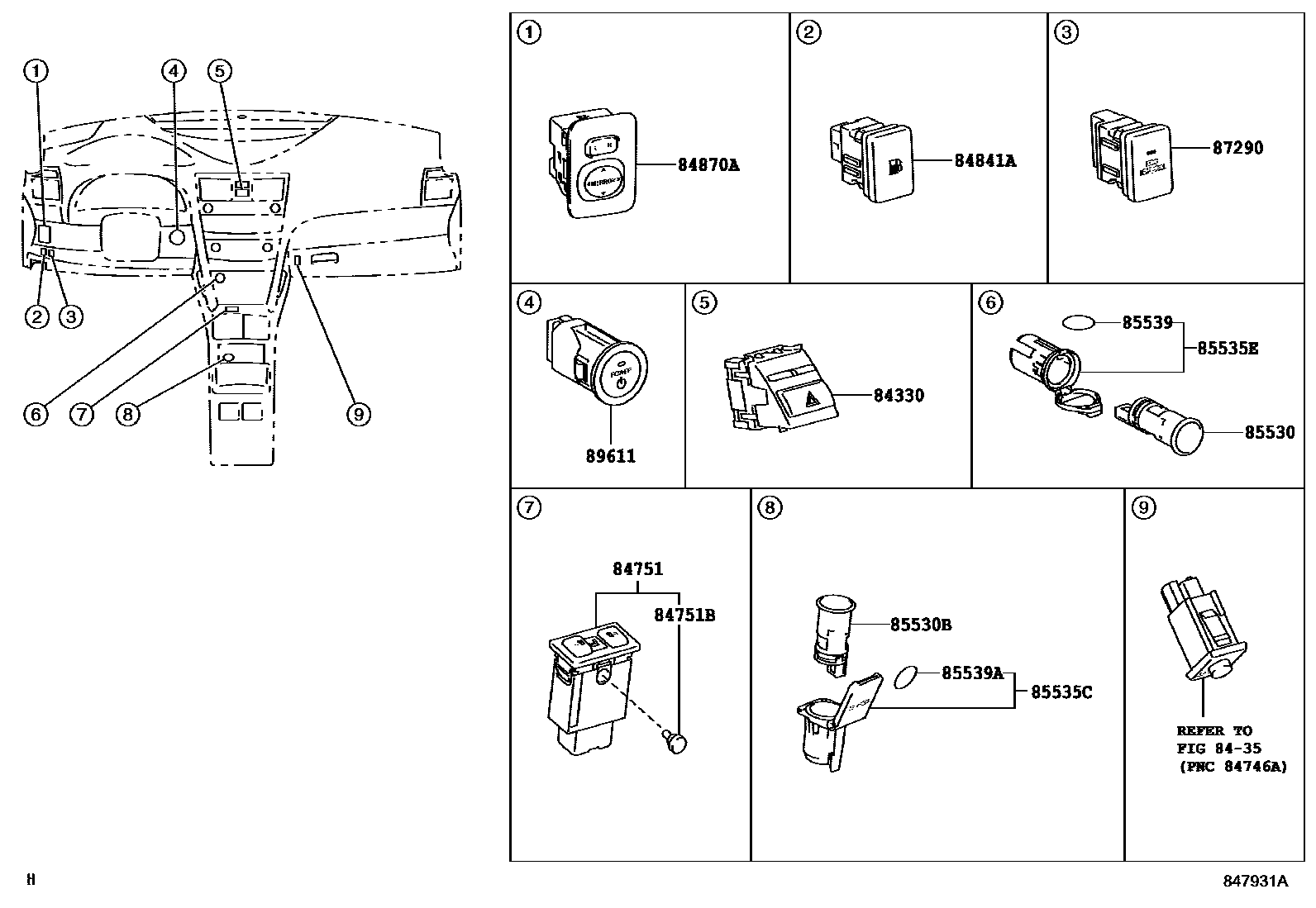

| 84751 | Seat heater switch | 84751-33050 |
| 84751B | Seat heater switch light bulb | 90011-01002 |

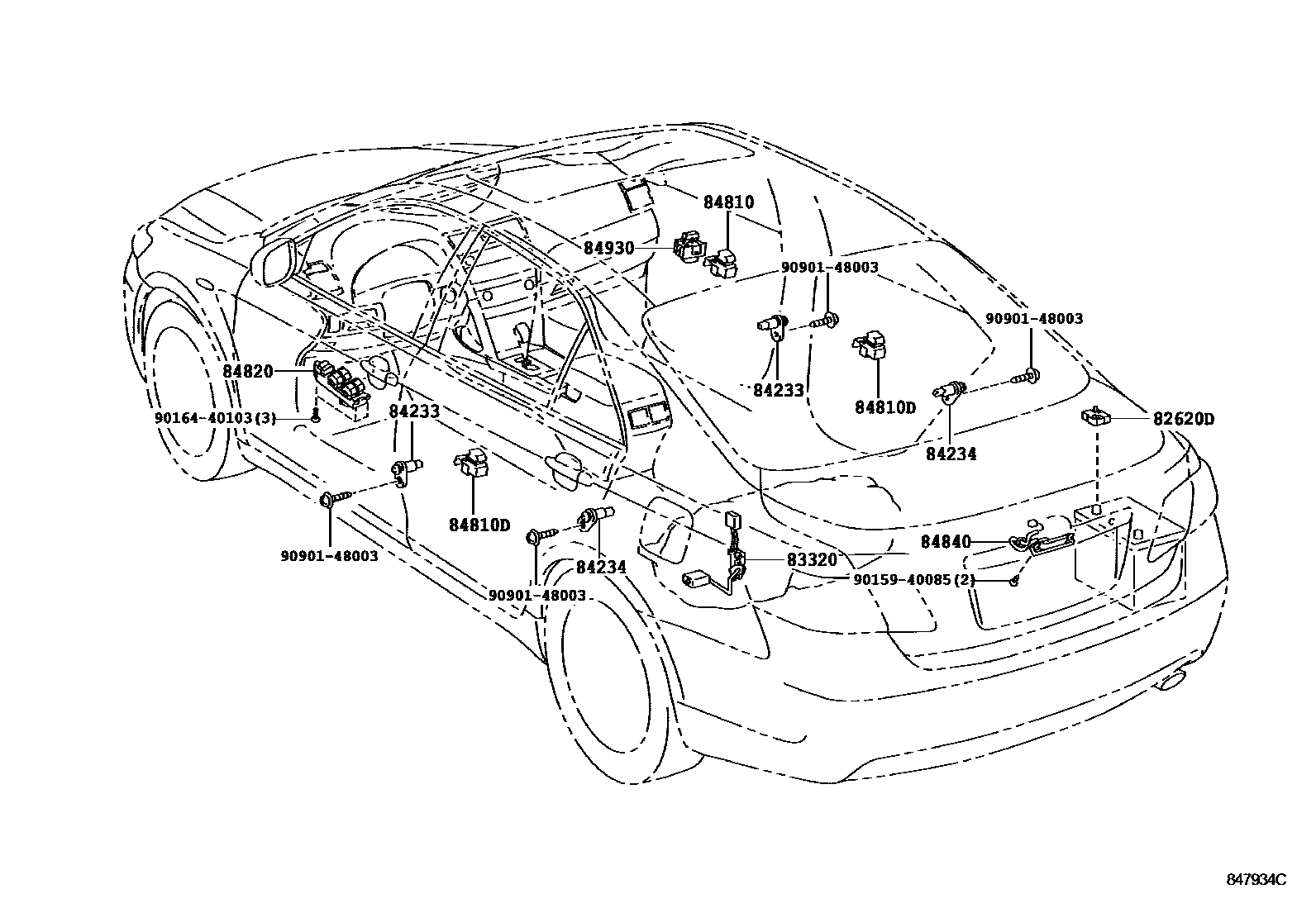

| 84810 | Electric window lift switch assembly | 84810-33120 · 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-33120 · 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84040-33100 · 84820-33270 · 84820-52250 |
| 84840 | Trunk door opening switch assembly | 84840-20010 · 84840-33090 · 84905-33010 |
| 84841A | Fuel filler cap opener switch | 84841-33010 |

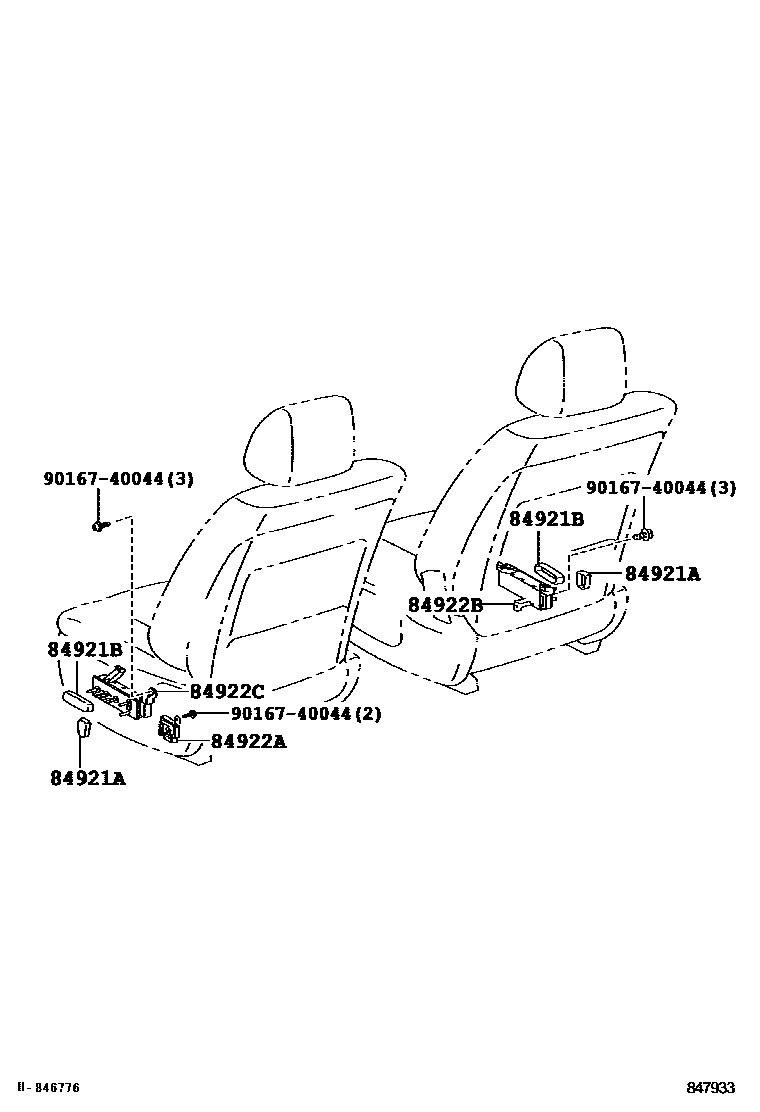

| 84922B | Front right electric seat switch | 84922-60130 |
| 84922C | Front left electric seat switch | 84922-60120 |
| 84930 | Door control switch assembly | 84930-12250 · 84930-42030 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85535C | Rear power outlet cover | 85535-33060 |
| 85535E | No. 2 power outlet cover | 85535-60100 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85912 | defogger relay | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916N | Tail light relay | 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02027 |
| 85930G | ACC relay | 90987-02025 · 90987-02030 |
| 87130F | No. 1 battery blower relay | 90987-02027 |
| 87290 | Heater switch assembly | 87290-33020 |
| 87346K | PTC heater relay | 90987-02025 |
| 89245B | steering sensor | 89245-33050 |

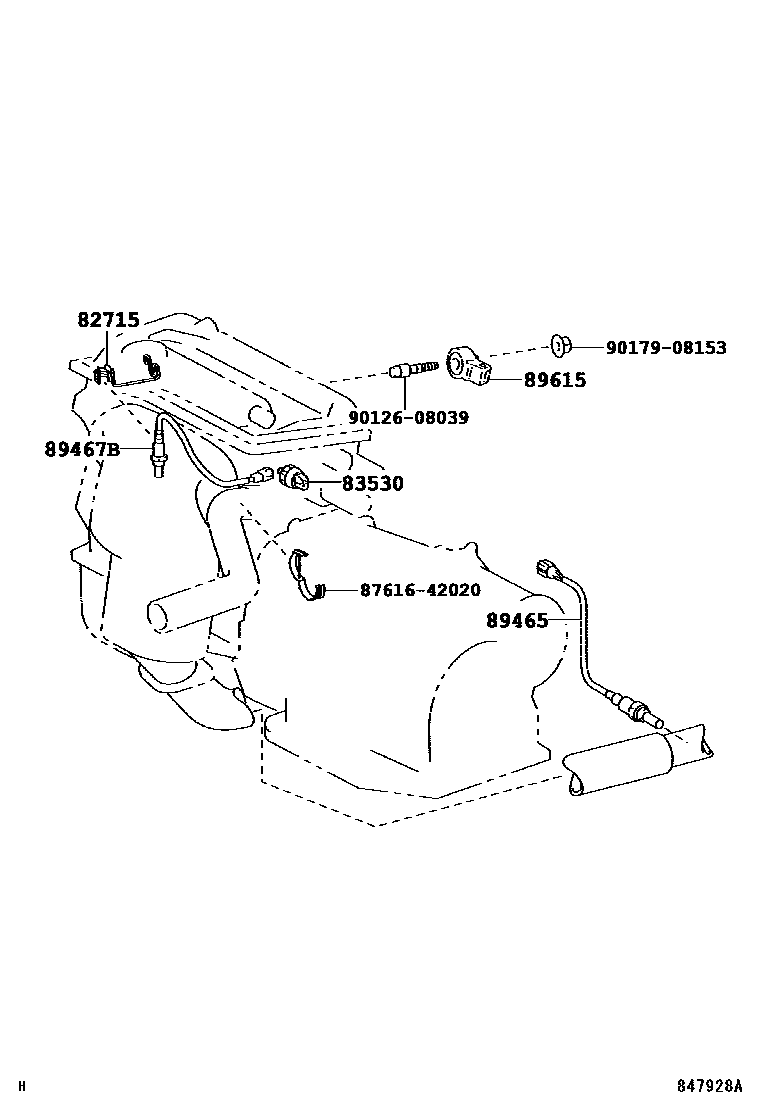

| 89465 | oxygen sensor | 89465-33440 |
| 89467B | air fuel ratio sensor | 89467-33140 · 89467-33190 |
| 895A0 | Brake light control relay assembly | 895A0-33010 |
| 895A1 | brake light control relay | 895A1-12010 |
| 89611 | push button start switch | 89611-33010 · 89611-33011 · 89611-33012 |
| 89615 | knock control sensor | 89615-20090 |

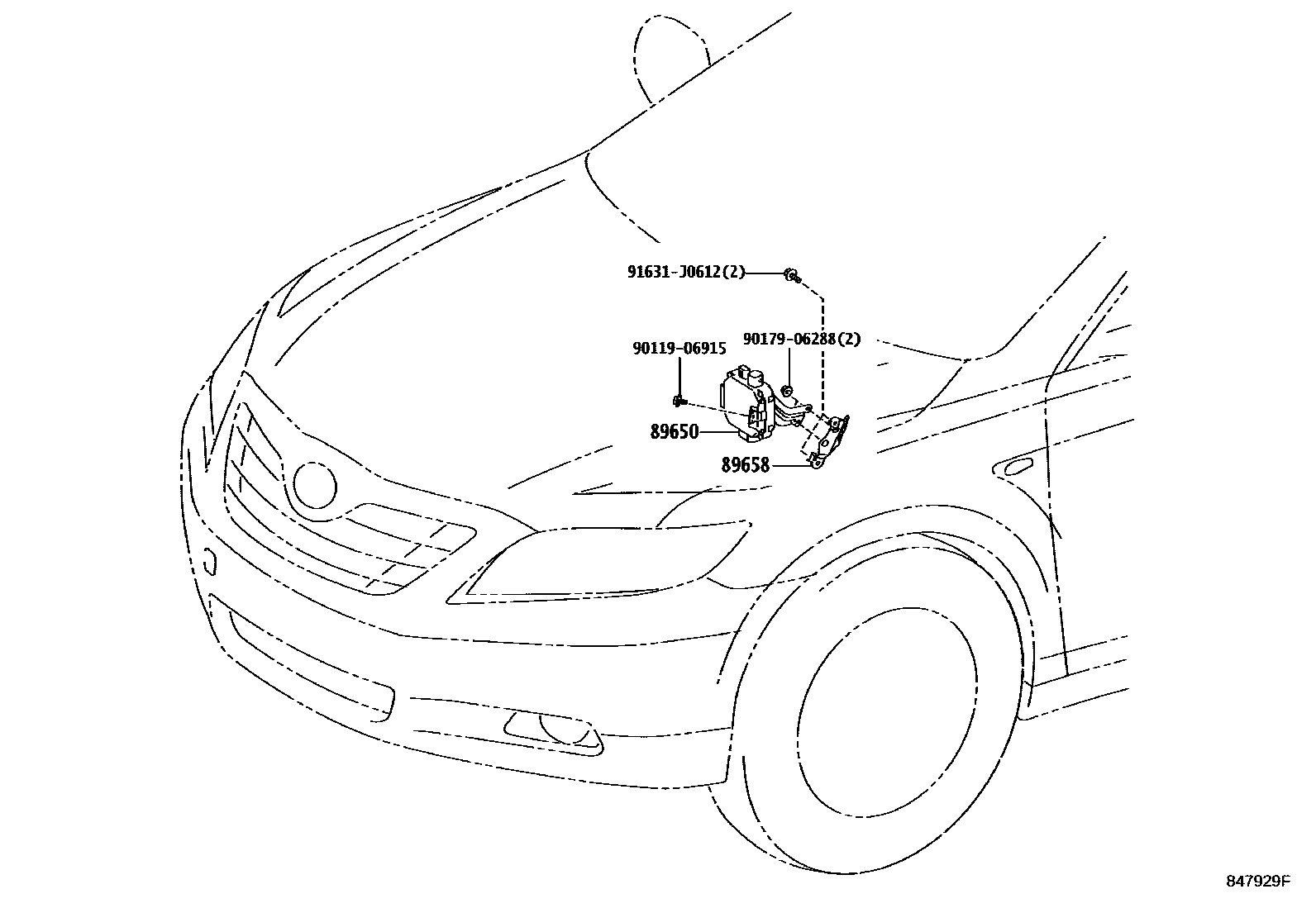

| 89650 | Power steering ECU assembly | 89650-33060 · 89650-33061 · 89650-33070 |
| 89658 | Power steering ECU bracket | 89658-33010 |
