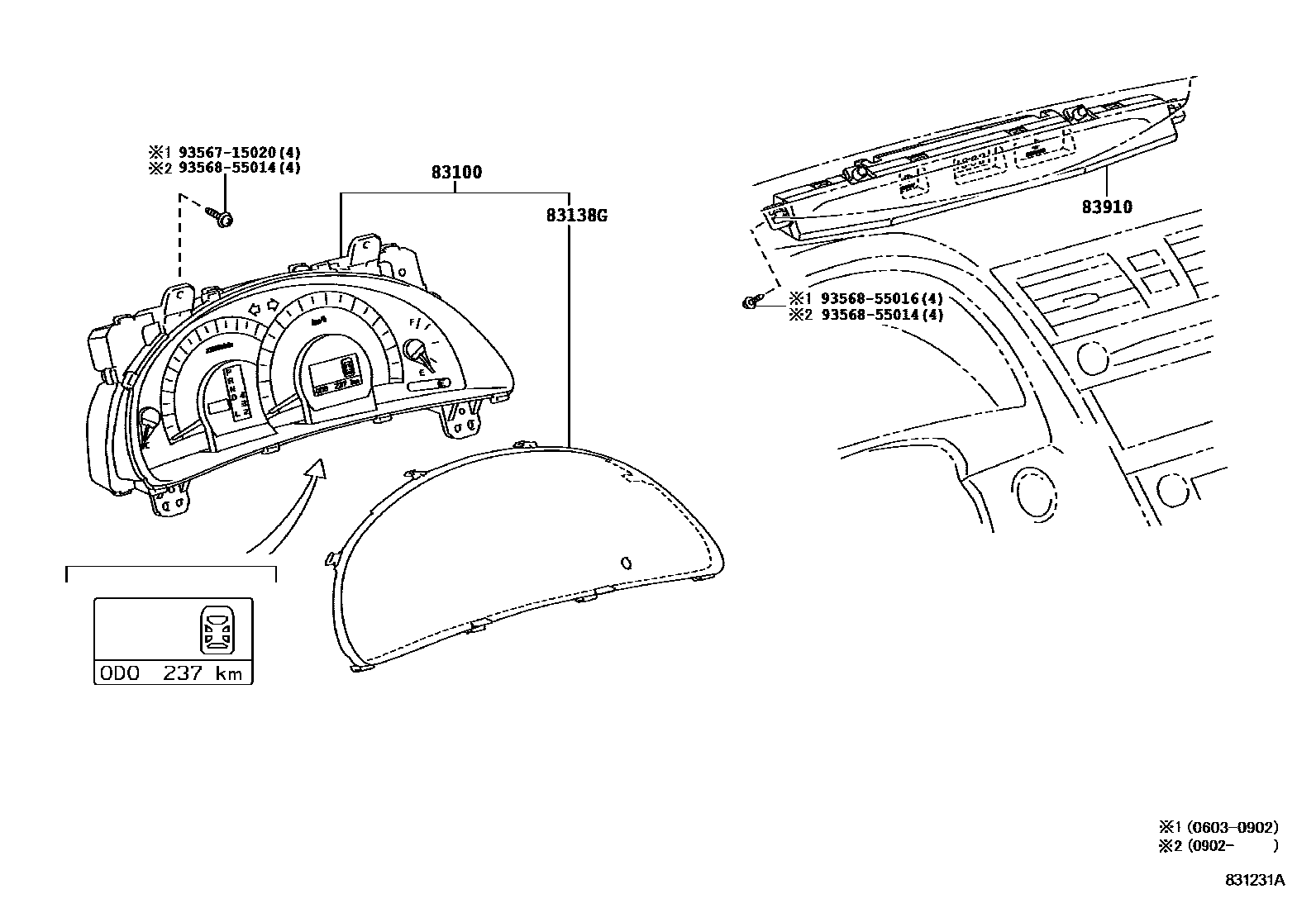

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-33B50 · 83800-33B60 · 83800-33C60 · 83800-33C70 · 83800-33G20 · 83800-33G30 · 83800-33G31 · 83800-33G50 |
| 83138G | Instrument cluster glass | 83852-33870 |
| 83910 | clock assembly | 83910-33170 |
