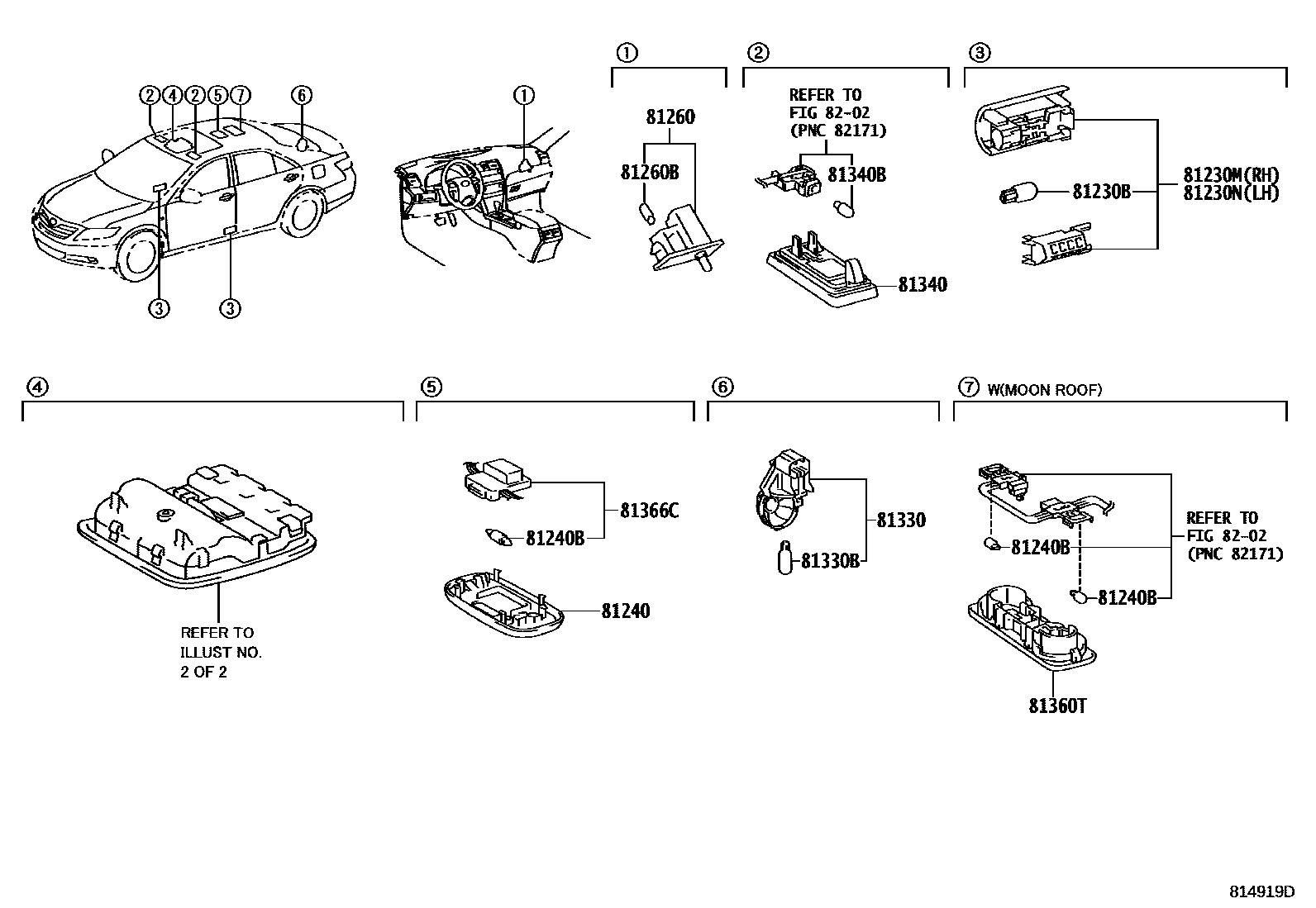

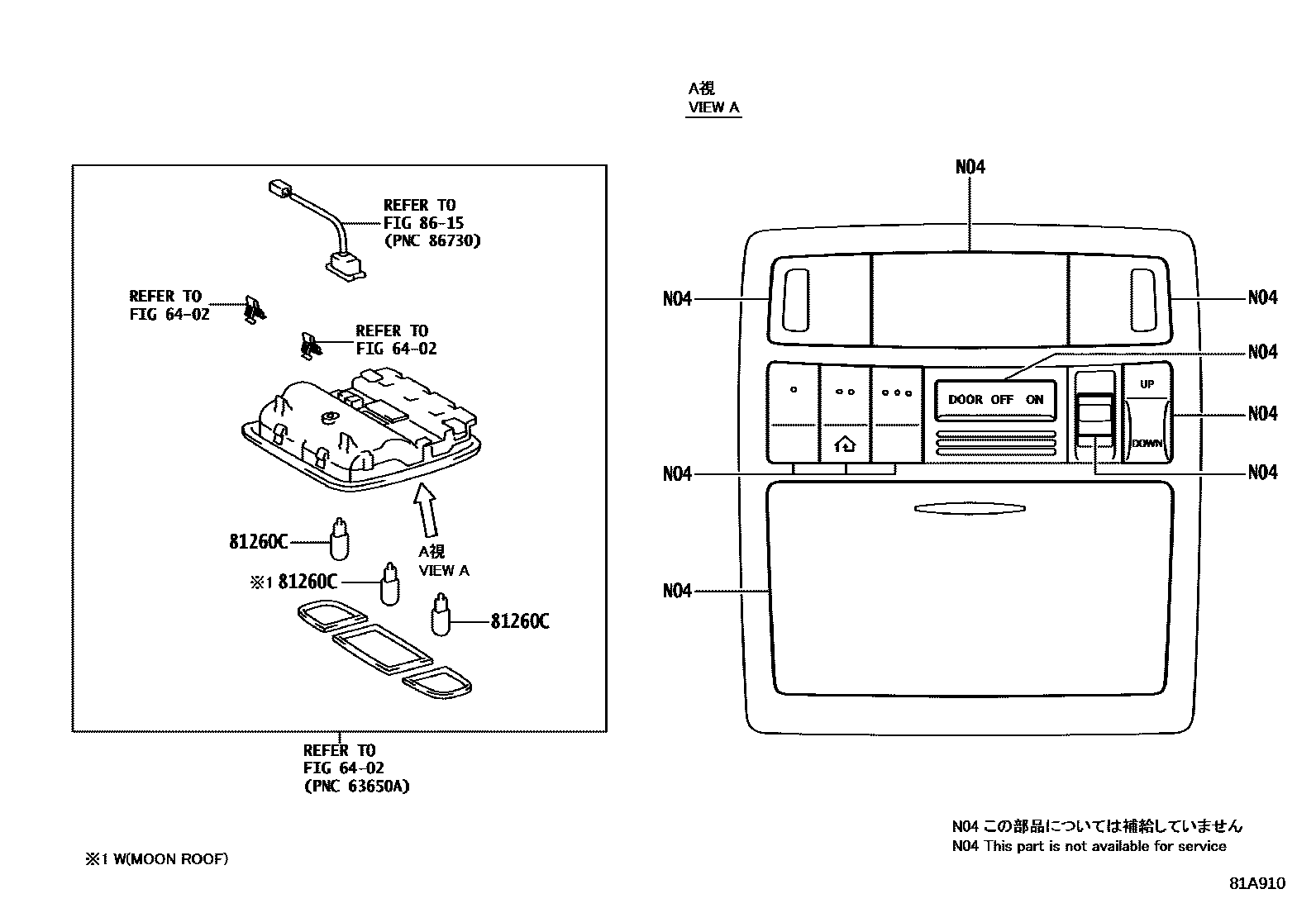

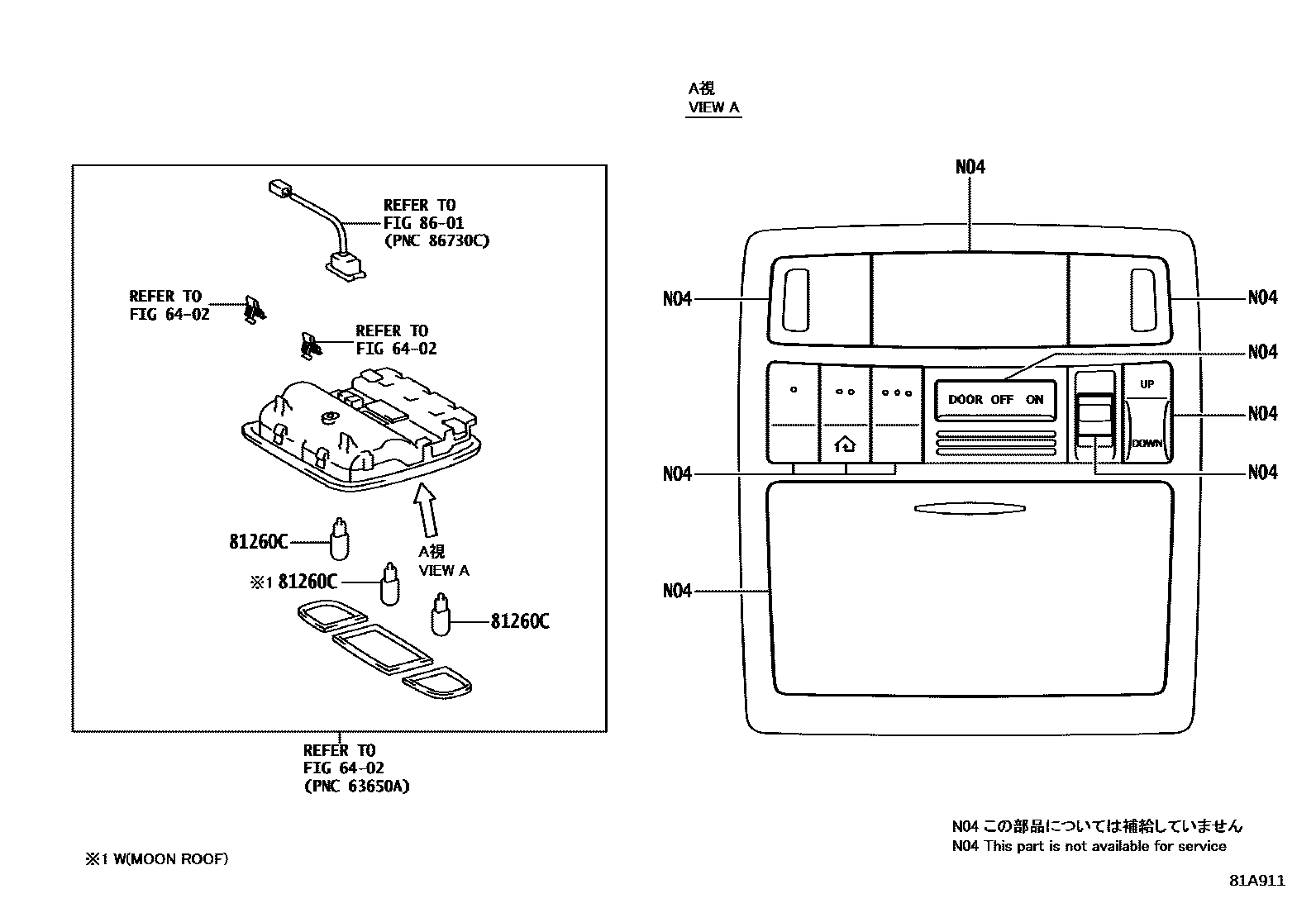

Toyota CAMRY 车内灯 — Figure 8121
Toyota CAMRY EPC diagram 8121, 车内灯, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81230B | Bulb (for gated lights) | 90981-12010 |
| 81230M | Right door control light assembly | 81230-47010 |
| 81230N | Left door control light assembly | 81230-47010 |
| 81240B | Interior light bulb No. 1 | 90981-11062 · 90981-14011 |
| 81260 | Glove box light assembly | 81260-33030 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90084-81002 |
| 81330 | No. 1 trunk light assembly | 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 90981-11062 |
| 81366C | Interior light switch base | 81366-68010 |
