Toyota CAMRY 燃油箱和燃油管 — Figure 7701

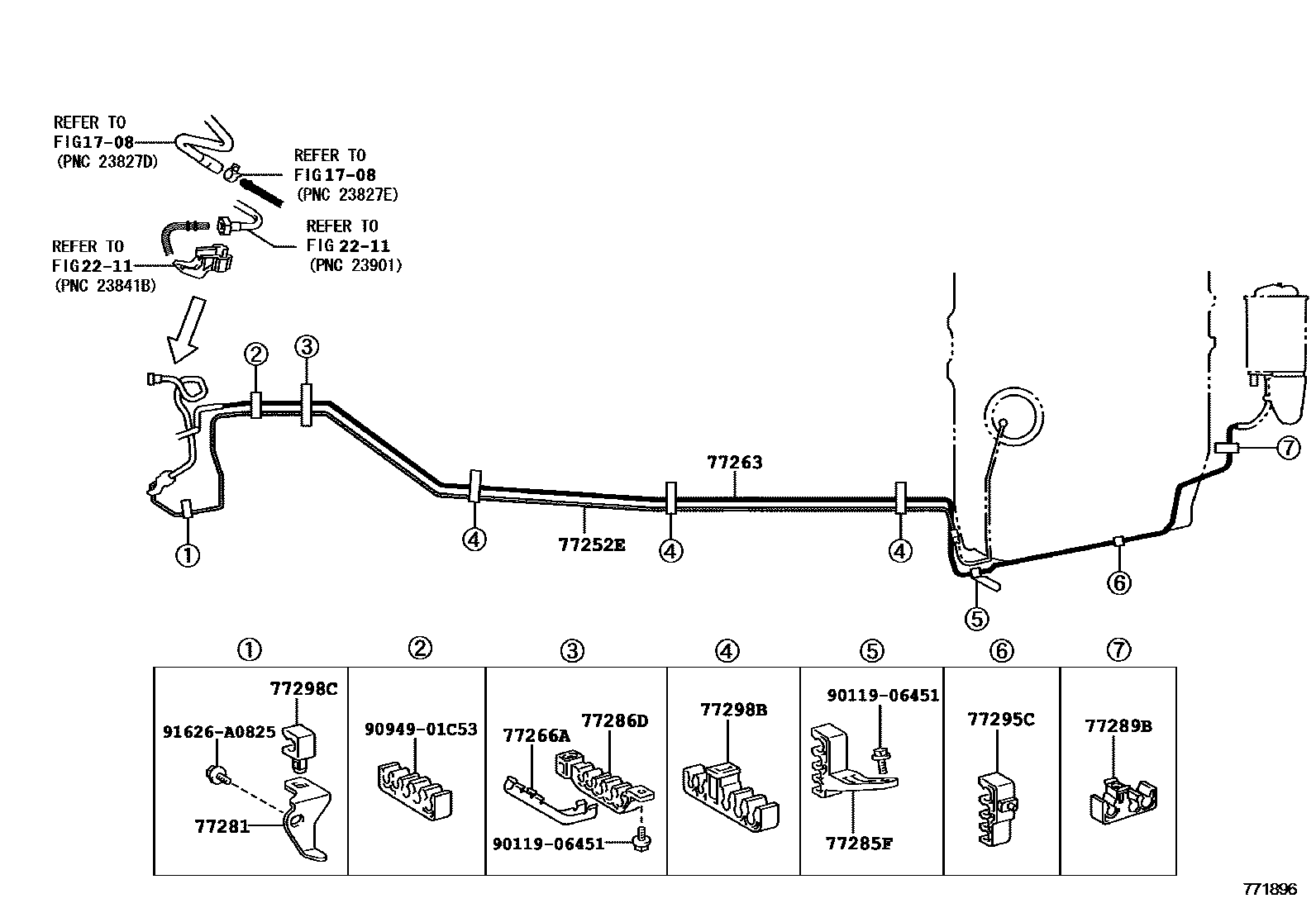

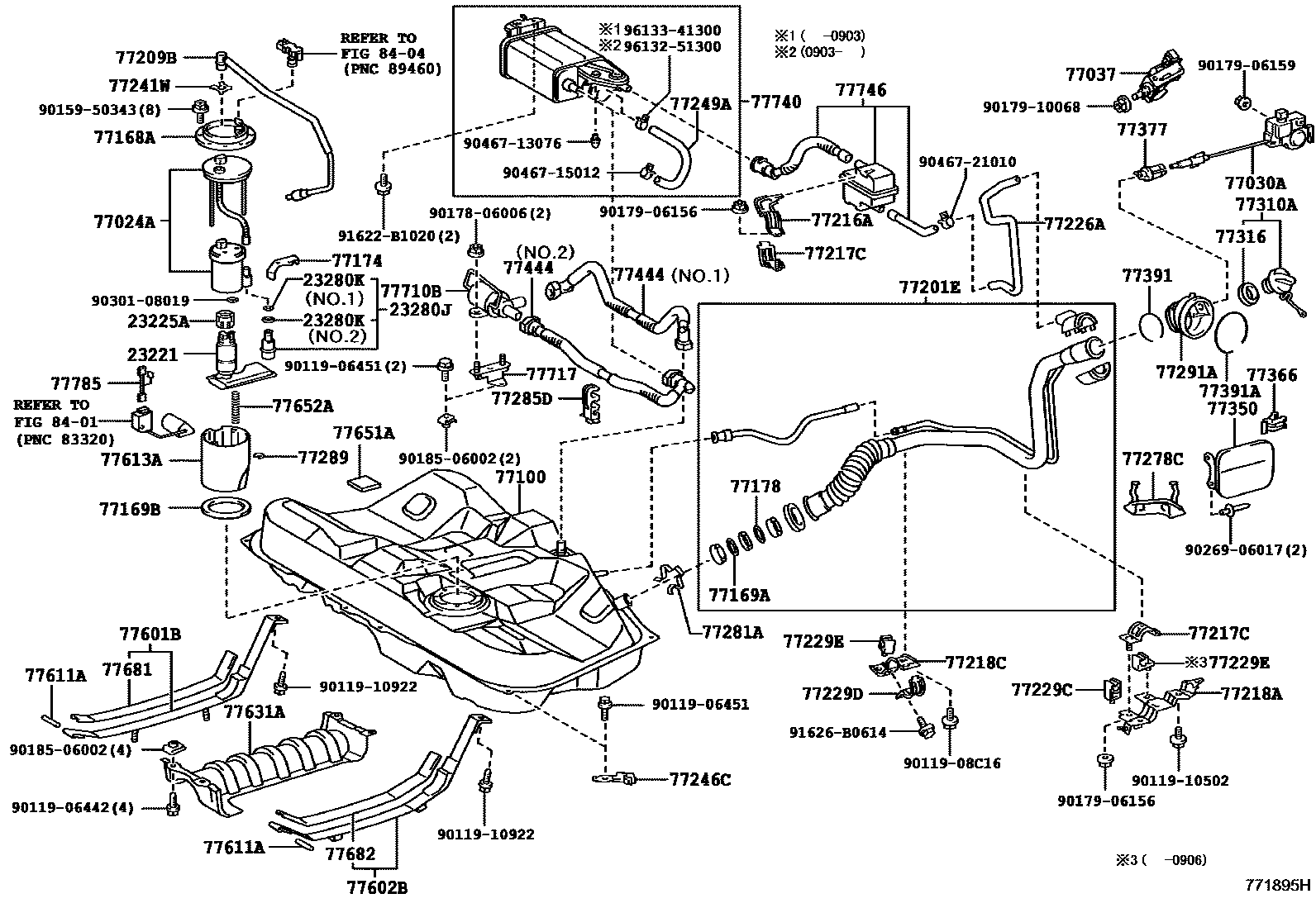

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 2 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-28220 |
| 23225A | fuel pump septum | 23225-23010 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77024A | Fuel absorber sub-assembly | 77024-33070 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-33060 · 77030-33061 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-33020 |
| 77100 | fuel tank assembly | 77001-33210 · 77001-33211 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33060 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33050 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-33030 |
| 77174 | No. 1 oil suction pipe bracket | 77174-33030 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-33260 · 77201-33261 |
| 77209B | Fuel pump pipe sub-assembly | 77209-33070 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33070 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-33020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77216-33100 |
| 77218C | No. 5 fuel tank filler pipe bracket | 77218-33051 · 77218-33052 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33030 |
| 77229C | Snorkel clamp | 77229-33070 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77217-33030 |
| 77229E | Snorkel clamp | 77229-33060 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77246C | Main fuel pipe bracket | 77246-33020 |
| 77249A | fuel drain hose | 77249-33080 |
| 77252E | No. 2 fuel pipe (for front main fuel pipe) | 77251-33150 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77261-33160 |
| 77266A | No. 1 fuel line protection device | 77266-33041 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-33020 |
| 77281 | No. 1 main fuel pipe bracket | 77281-33030 |
| 77281A | Fuel filler pipe clamp | 77281-33020 |
| 77285D | No. 1 fuel pipe clamp | 77285-33080 |
| 77285F | No. 1 fuel pipe clamp | 77299-33040 |
| 77286D | No. 2 fuel pipe clamp | 77286-33040 |
| 77289 | Fuel tank pipe holder | 77289-52090 |
| 77289B | No. 3 fuel pipe clamp | 77289-33050 |
| 77291A | Fuel tank filler pipe cover | 77291-33070 |
| 77295C | Fuel pipe retaining ring | 77295-33020 |
| 77298B | No. 4 fuel pipe clamp | 77298-20110 |
| 77298C | No. 4 fuel pipe clamp | 77298-30170 |
| 77310A | Fuel tank cap assembly | 77300-48010 |
| 77316 | fuel tank cap gasket | 77316-47020 · 77316-48010 |
| 77350 | Fuel filler cap assembly | 77350-33180 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-33030 |
| 77444 | fuel tank vent hose | 77404-33110 · 77404-33120 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-33080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-33090 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77613A | No. 1 fuel tank strap bracket | 77613-33040 |
| 77631A | Fuel tank center lower protective shell | 77631-33060 |
| 77651A | No. 1 fuel tank liner | 77651-12070 · 77651-20090 |
| 77652A | No. 2 fuel tank liner | 77652-33050 |
| 77681 | Fuel tank right side strap seat | 77681-33020 |
| 77682 | Fuel tank left side strap seat | 77682-33020 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-33010 |
| 77717 | Fuel return solenoid valve bracket | 77717-33010 |
| 77740 | Carbon canister assembly | 77740-33190 |
| 77746 | No.2 carbon canister filter | 77706-33050 |
| 77785 | fuel pump wiring harness | 77785-33050 |
