Toyota CAMRY 前门锁和车门把手 — Figure 6703

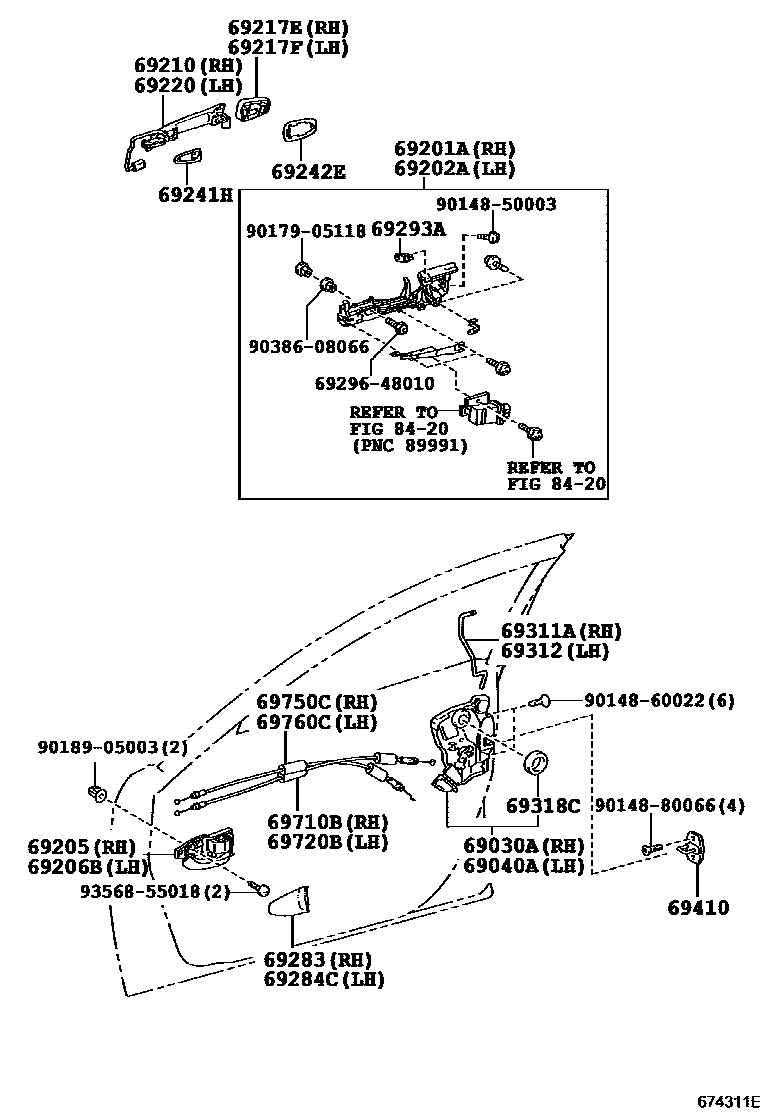

Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-42230 |
| 69040A | Left front door door lock assembly with motor | 69040-42250 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-33040 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-33040 |
| 69241H | Front door exterior handle pad | 69241-28060 |
| 69242E | Front door rear outer handle pad | 69242-33030 · 69242-60030 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69311A | Right front door lock opening lever | 69311-33070 |
| 69312 | Left front door lock opening lever | 69312-33070 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710B | Right front door lock remote control cable assembly | 69710-33060 |
| 69720B | Left front door lock remote control cable assembly | 69710-33060 |
| 69750C | Right front door inner lock cable assembly | 69750-33040 |
| 69760C | Left front door inner lock cable assembly | 69750-33040 |
