Toyota CAMRY 仪表板和手套箱 — Figure 5501

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 11 PNC and OE references.

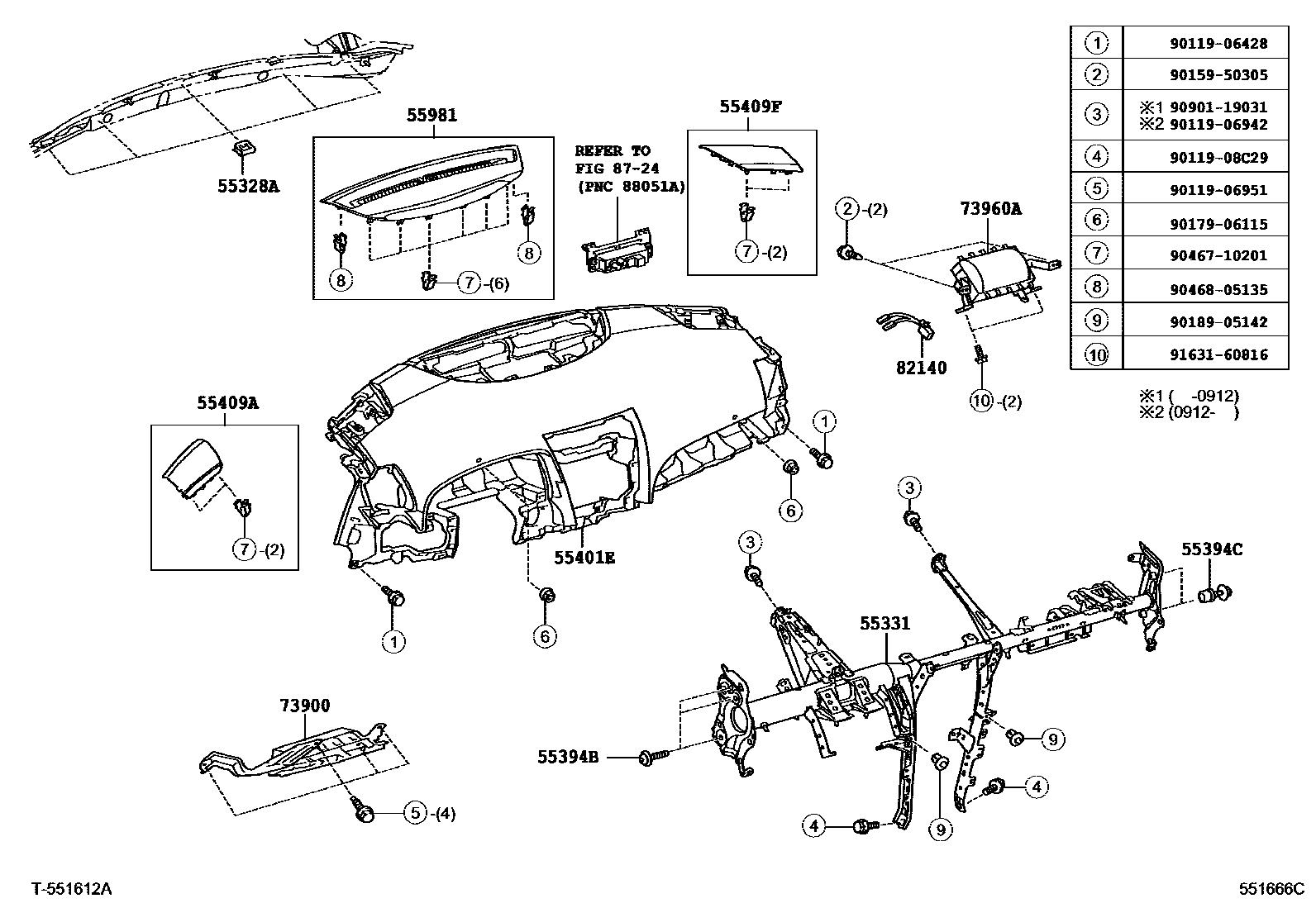

Toyota CAMRY 仪表板和手套箱 EPC diagram — 551666C
仪表板和手套箱 — 551666C (200603 – 999999)

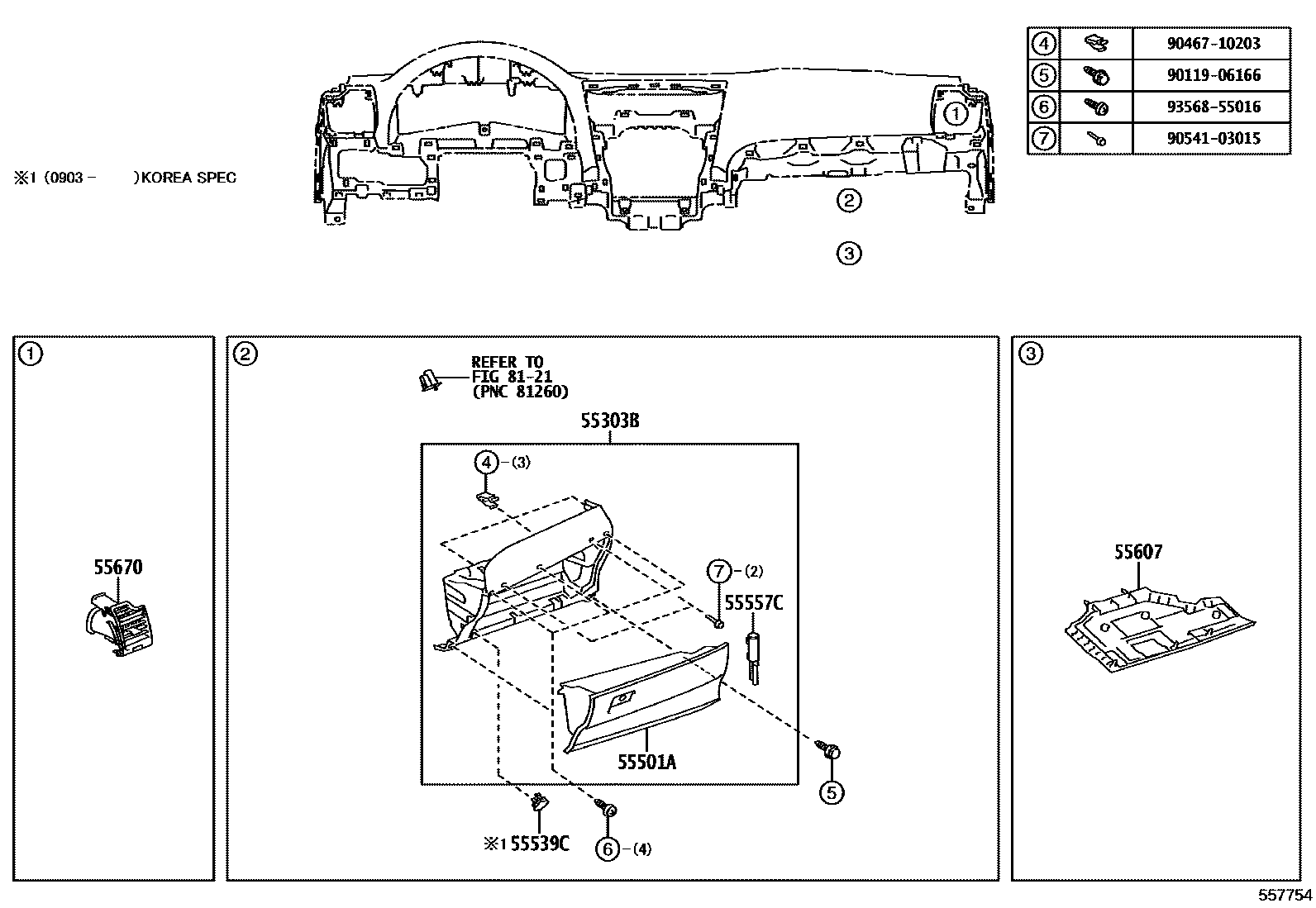

Toyota CAMRY 仪表板和手套箱 EPC diagram — 557754
仪表板和手套箱 — 557754 (200603 – 999999)

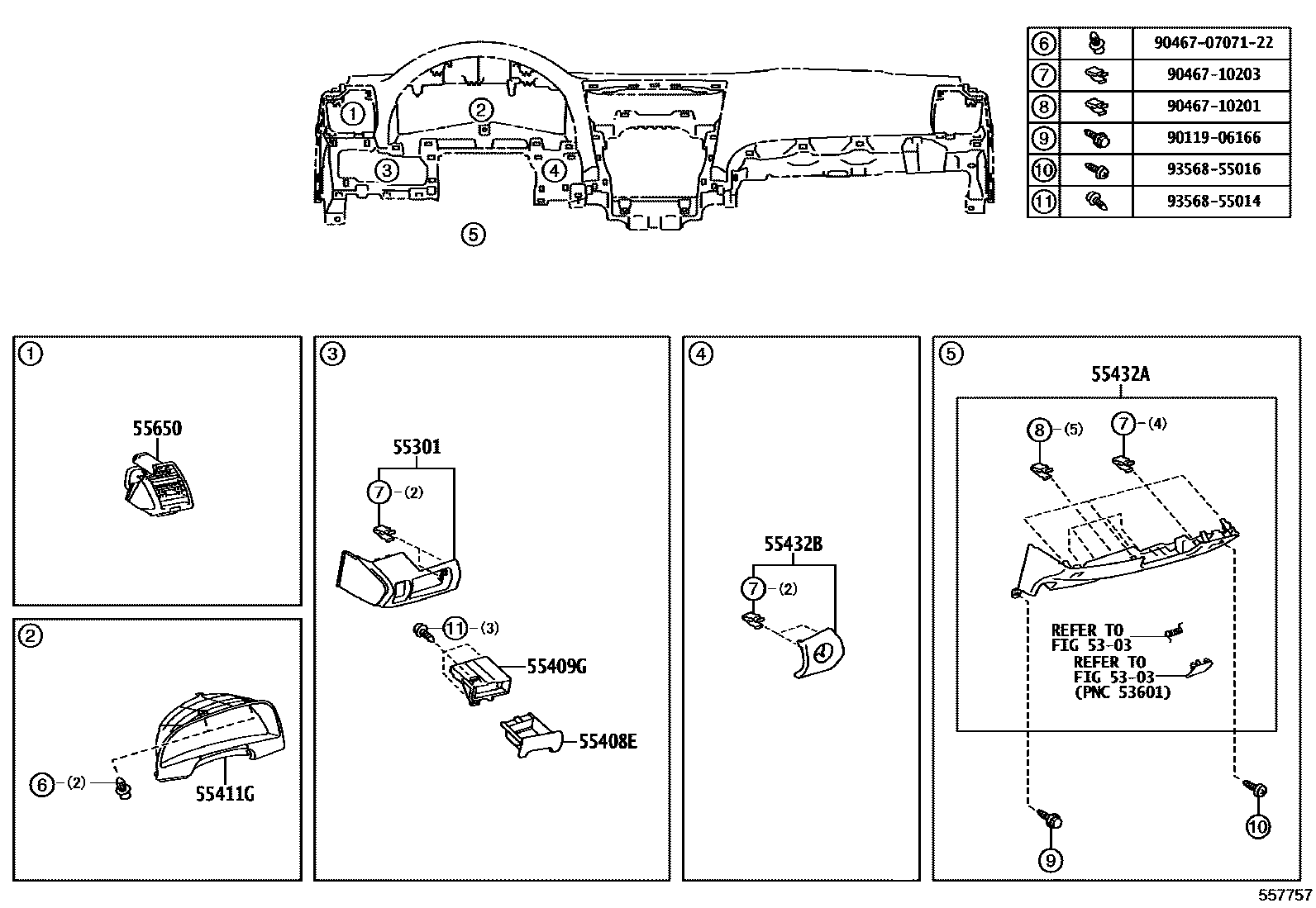

Toyota CAMRY 仪表板和手套箱 EPC diagram — 557757
仪表板和手套箱 — 557757 (200603 – 999999)

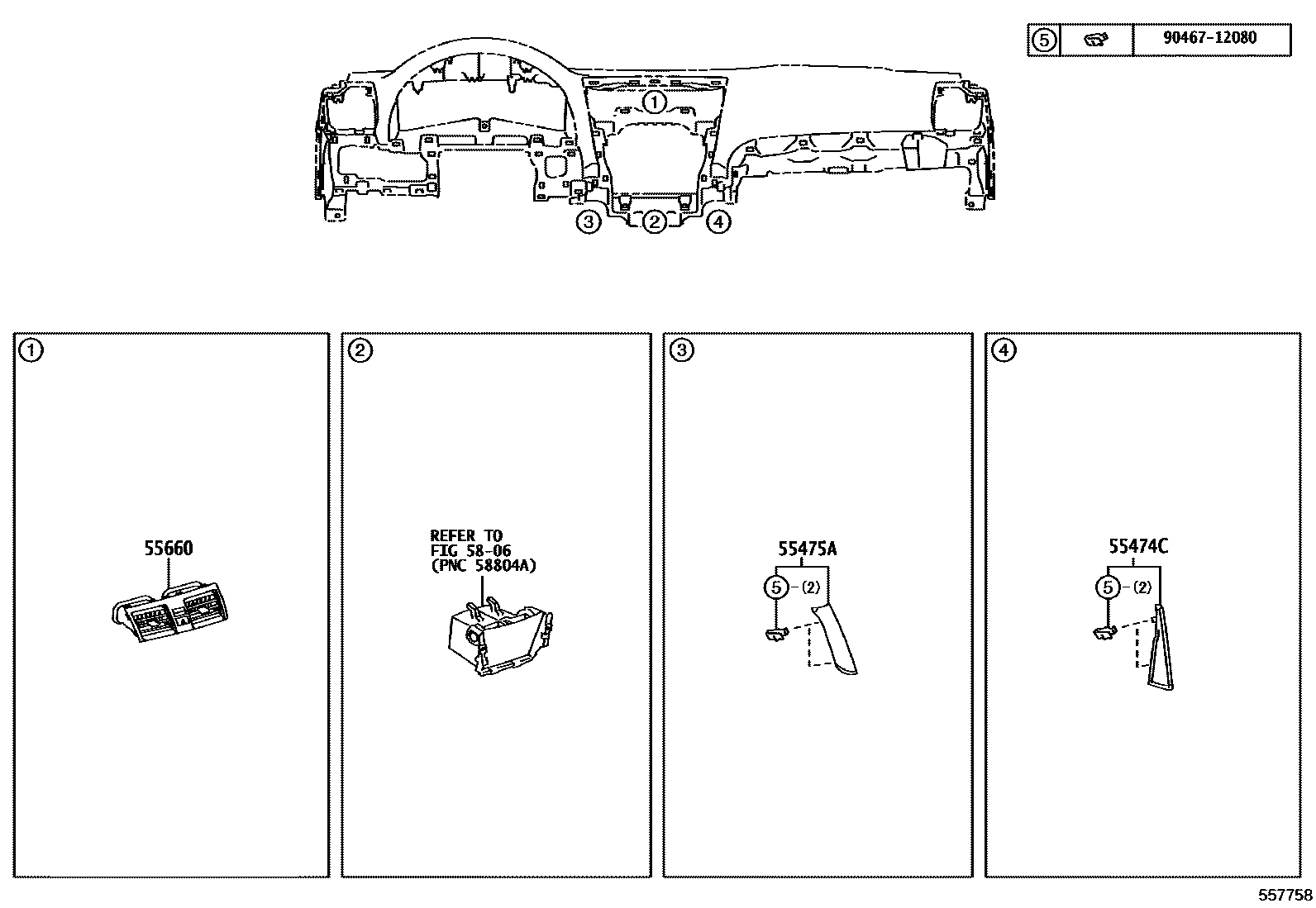

Toyota CAMRY 仪表板和手套箱 EPC diagram — 557758
仪表板和手套箱 — 557758 (200603 – 999999)

PNC and OE references

PNCPart nameOE numbers
55328ADashboard No. 3 stay55328-30160 · 55328-33120 · 55328-50170
55331Dashboard reinforcement55330-33330 · 55330-33331 · 55330-33360
55394BDashboard bolts55394-30021
55394CDashboard bolts55394-33040 · 55394-33041
55409GCoin box fixing part sub-assembly55409-33030
55411GInstrument cluster No. 1 decorative panel55404-33130 · 55404-33131
55539CSpare switch hole cover55539-48020
55557CGlovebox lid damper55557-33030
55607Instrument panel No. 2 bottom cover sub-assembly55607-33100
73960ADashboard passenger air bag assembly without cover73960-33090 · 73960-33120
82140Instrument panel wiring harness assembly82140-33010
