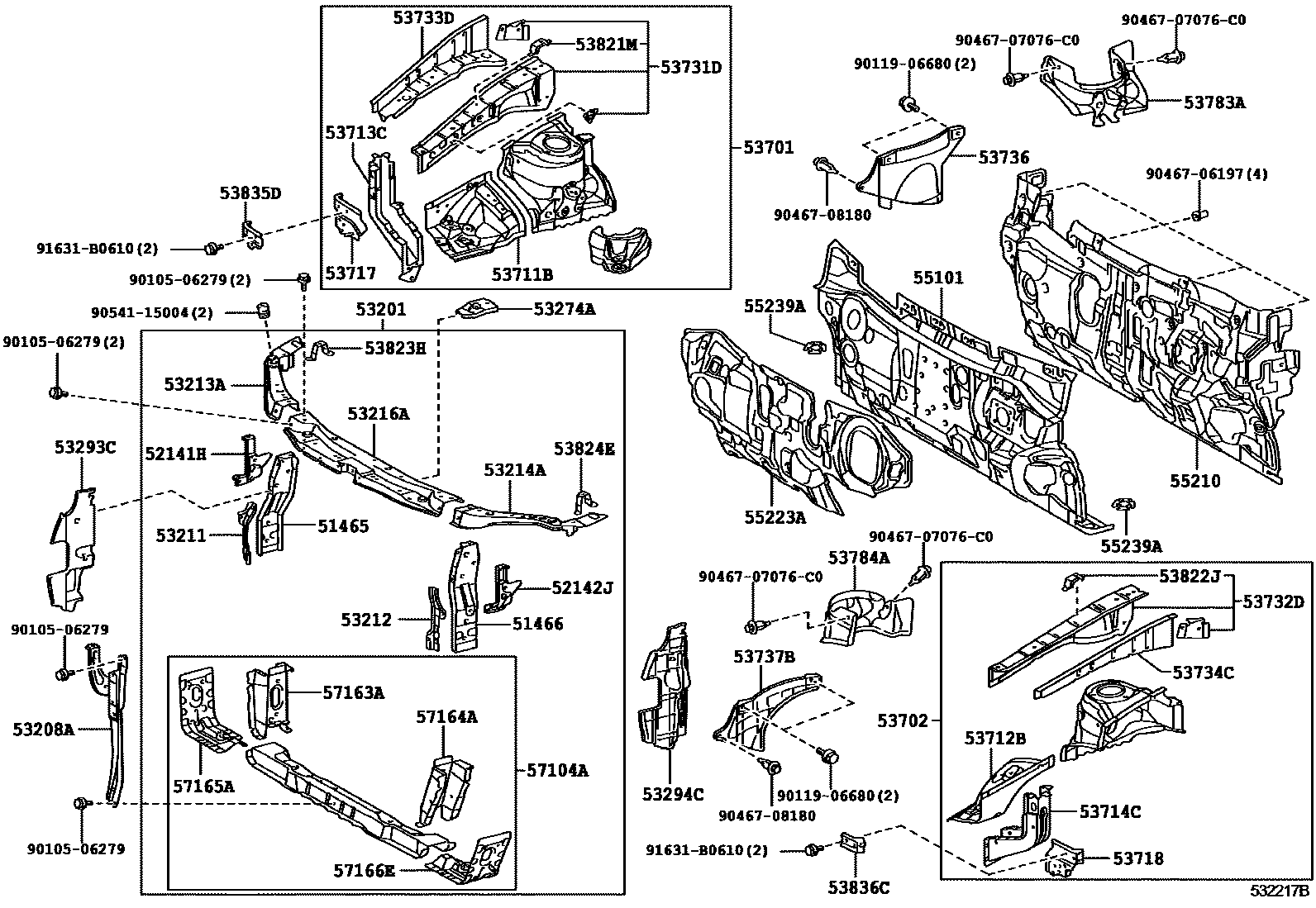

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51465 | Radiator upper right bracket | 51465-33050 |
| 51466 | Radiator upper left bracket | 51466-33050 |
| 52141H | Front bumper right upper arm | 52141-33090 |
| 52142J | Front bumper left upper arm | 52142-33070 |
| 53201 | Radiator bracket sub-assembly | 53201-33160 · 53201-33161 · 53201-33162 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-33030 |
| 53211 | Radiator right side support | 53211-33080 · 53211-33081 |
| 53212 | Radiator left support | 53212-33080 · 53212-33081 |
| 53213A | Radiator upper right bracket | 53213-33030 |
| 53214A | Radiator upper left bracket | 53214-33030 |
| 53216A | Radiator upper bracket | 53216-33130 |
| 53274A | Radiator left bracket reinforcement | 53274-33030 |
| 53293C | Radiator right baffle | 53293-33030 · 53293-33060 |
| 53294C | Radiator left baffle | 53294-33030 · 53294-33060 |
| 53701 | Right front fender fender sub-assembly | 53701-33150 |
| 53702 | Left front fender fender sub-assembly | 53702-33110 |
| 53711B | Right front fender front fender | 53711-33070 |
| 53712B | Left front fender front fender | 53712-33040 |
| 53713C | Right front fender fender front extension | 53713-33020 |
| 53714C | Left front fender fender front extension | 53714-33020 |
| 53717 | Right fender fender side panel | 53717-33050 |
| 53718 | Left fender fender side panel | 53718-33040 |
| 53731D | Right front fender to cowl side upper beam | 53731-33901 |
| 53732D | Left front fender to cowl side upper beam | 53732-33901 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33040 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33040 |
| 53736 | Right front fender fender seal | 53736-33040 |
| 53737B | Left front fender fender seal | 53737-33020 |
| 53783A | Right front fender fender vibration isolation pad | 53783-33020 |
| 53784A | Left front fender fender vibration isolation pad | 53784-33030 |
| 53821M | No. 1 right front fender rear bracket | 53821-33030 |
| 53822J | No. 1 left front fender rear bracket | 53822-33020 |
| 53823H | Right front fender corner panel | 53823-33010 |
| 53824E | Left front fender corner panel | 53824-33010 |
| 53835D | Right front side panel bracket | 53835-33060 |
| 53836C | Left front side panel bracket | 53836-33040 |
| 55101 | Front apron sub-assembly | 55101-33270 |
| 55210 | Front wall insulation pad assembly | 55210-33180 · 55210-33181 |
| 55223A | Front wall outer heat insulation pad | 55223-33180 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-33020 |
| 57104A | Front cross member sub-assembly | 57104-33050 · 57104-33051 |
| 57163A | No. 1 front cross member right reinforcement | 57163-33040 |
| 57164A | No. 1 front cross member left reinforcement | 57164-33040 |
| 57165A | No. 2 front cross member reinforcement | 57165-33020 · 57165-33021 |
| 57166E | No. 2 front cross member left reinforcement | 57166-33020 · 57166-33021 |
