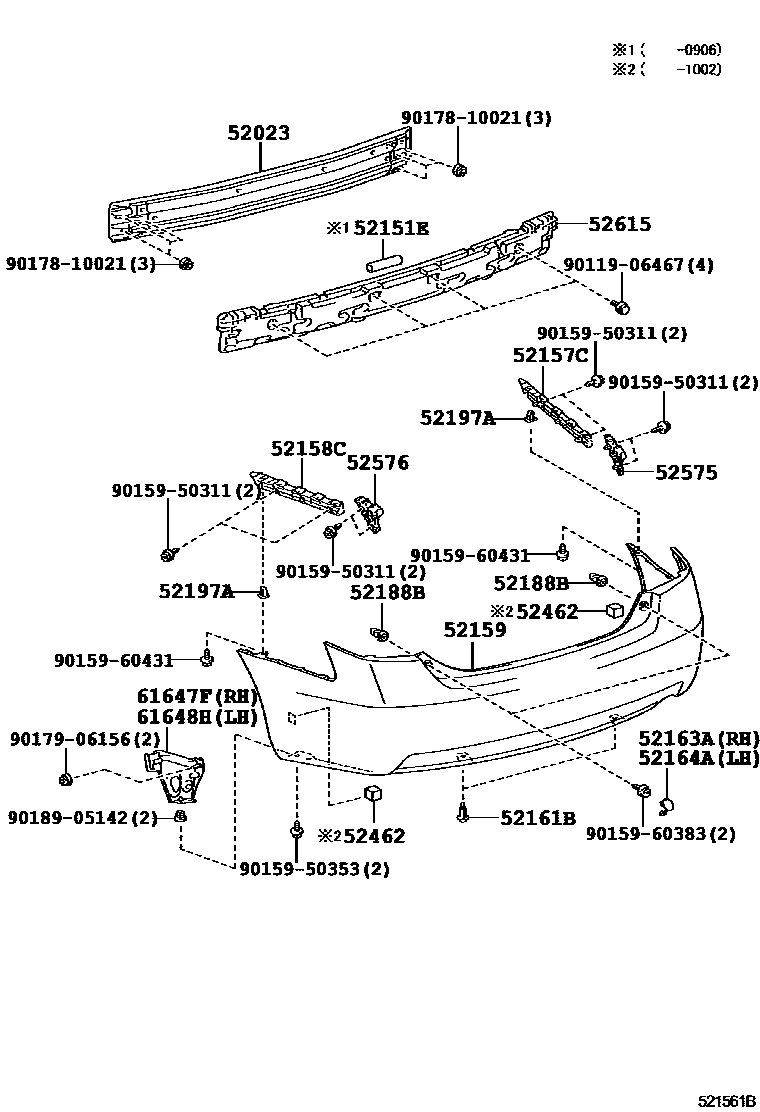

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52171-33120 · 52171-33130 |
| 52151E | rear bumper | 52151-33030 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-33010 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-33010 |
| 52159 | rear bumper cover | 52159-33924 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-33900 |
| 52164A | Rear bumper left fender | 52164-33900 |
| 52188B | Rear bumper installation spacer | 52188-33030 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52462 | Rear bumper right side lining | 52462-33010 |
| 52575 | Rear bumper right side fixing bracket | 52575-33110 |
| 52576 | Rear bumper left side fixing bracket | 52576-33080 |
| 52615 | Rear bumper energy absorber | 52615-33110 |
| 61647F | Right wheel arch reinforcement | 61647-33040 |
| 61648H | Left wheel arch reinforcement | 61648-33040 |
