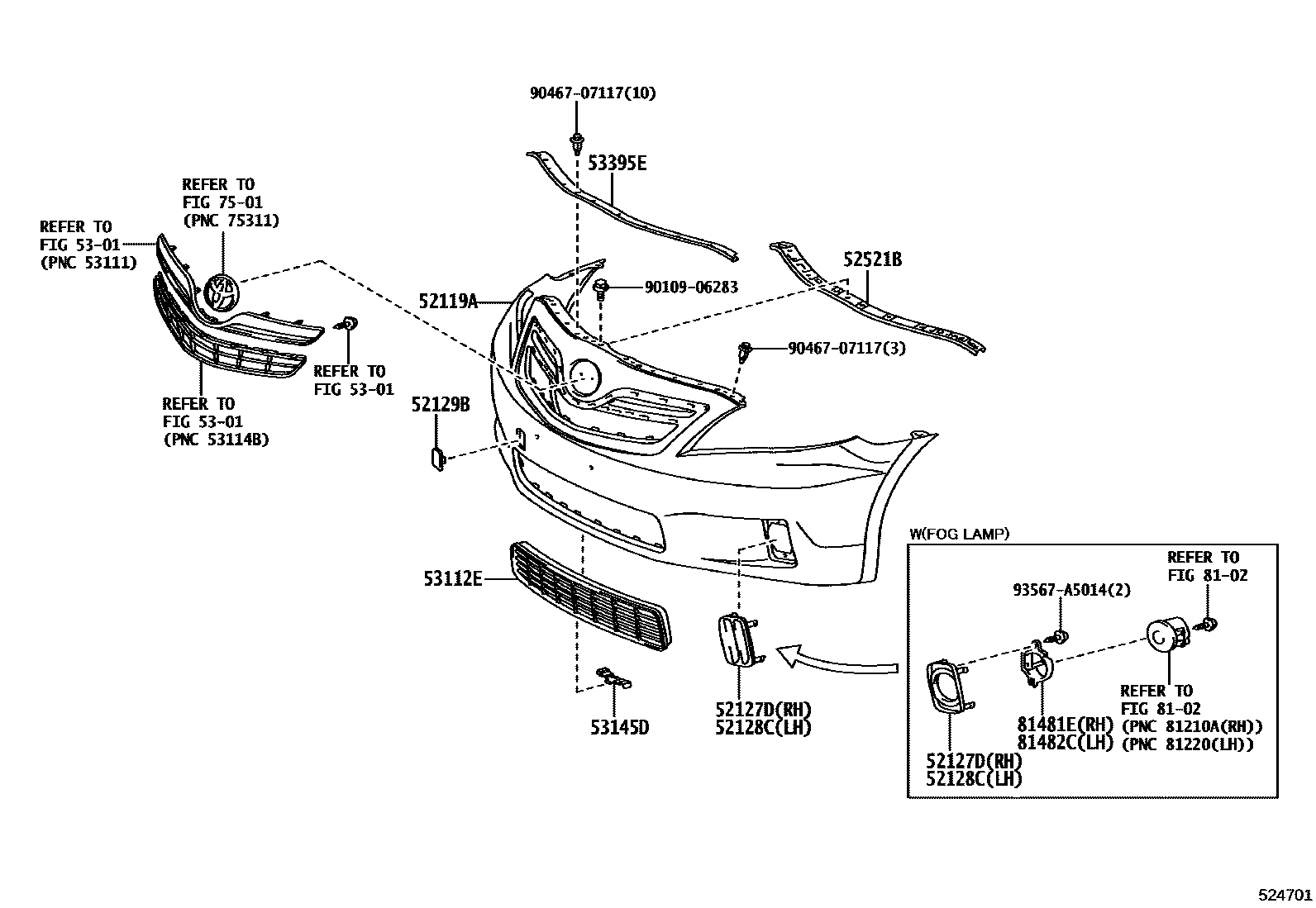

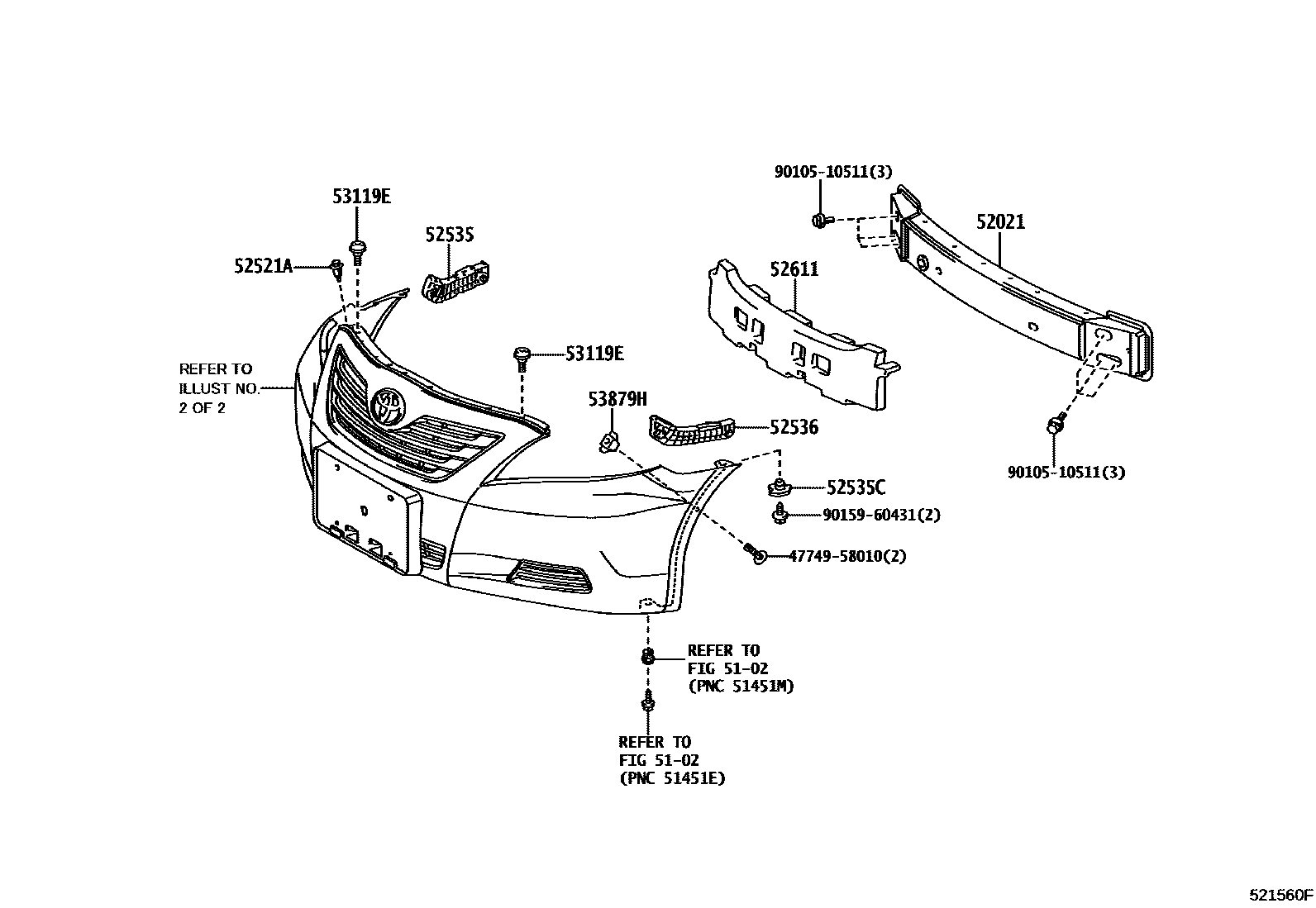

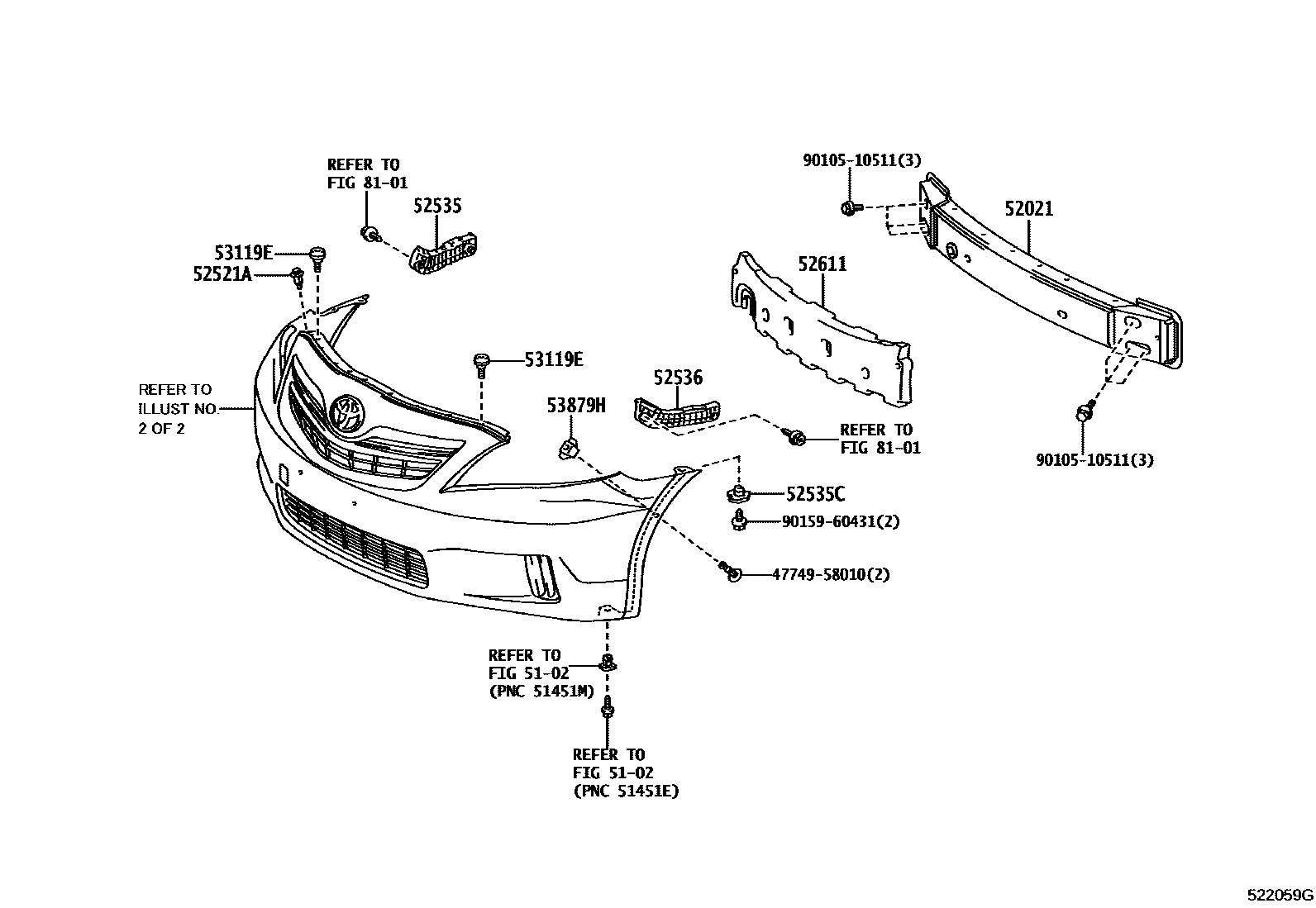

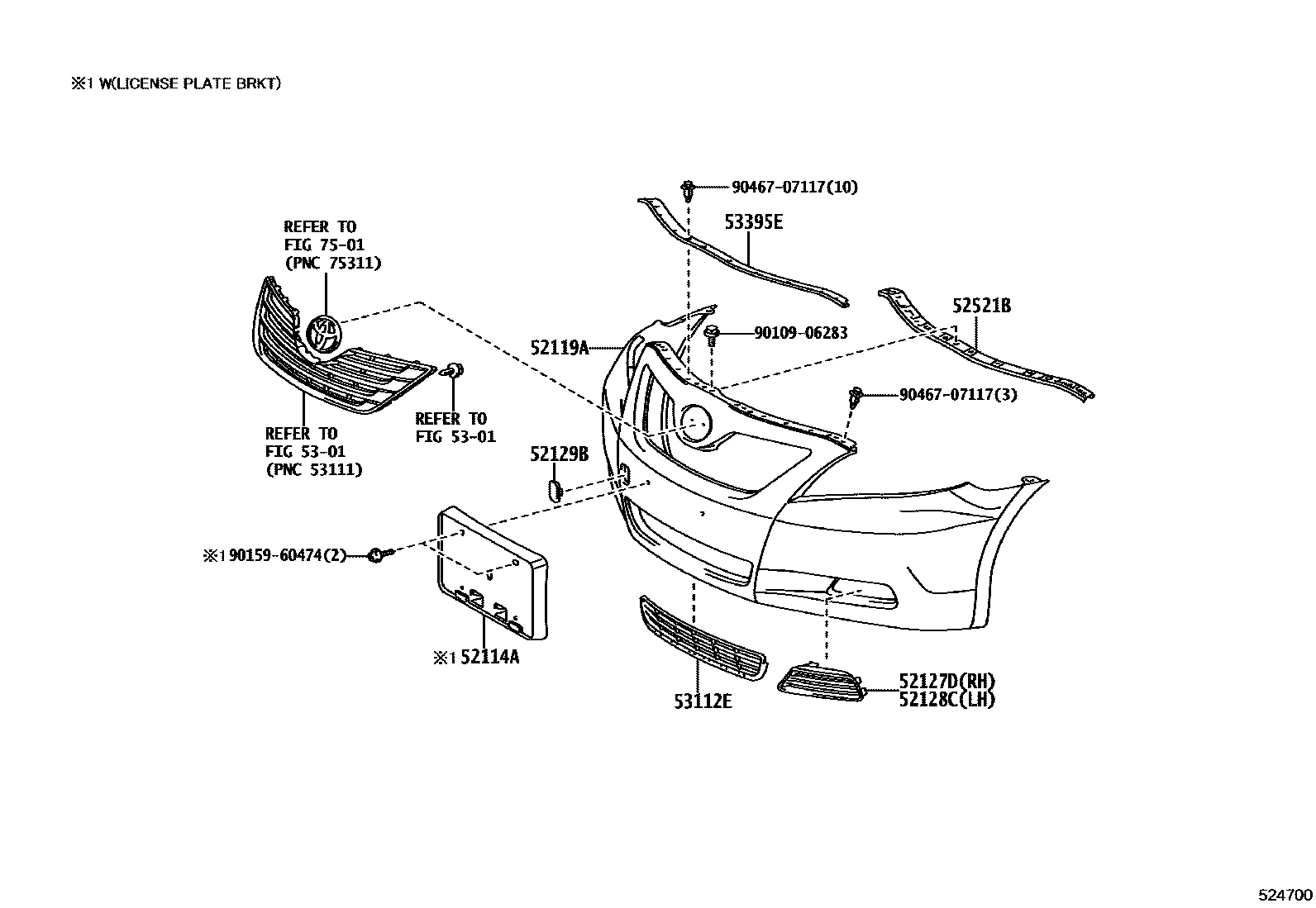

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-33140 · 52021-33150 |
| 52114A | Front bumper extension mounting bracket | 52114-33170 |
| 52119A | front bumper cover | 52119-33943 · 52119-33967 |
| 52127D | Front bumper right hole cover | 52030-33020 · 52127-33050 · 52127-33100 |
| 52128C | Front bumper left hole cover | 52040-33020 · 52128-33060 · 52128-33100 |
| 52129B | Front bumper lower cover | 52129-33903 |
| 52521A | Clip (for front bumper mount) | 90467-08180 |
| 52521B | Front bumper upper fixing bracket | 52521-33070 · 52521-33080 |
| 52535 | Front bumper right side fixing bracket | 52535-33040 |
| 52535C | Front bumper side fixing bracket | 52535-50060 |
| 52536 | Front bumper left fixed bracket | 52536-33040 |
| 52611 | front bumper energy absorber | 52611-33160 · 52611-33180 |
| 53112E | No. 1 radiator lower grille | 53112-33030 · 53112-33050 |
| 53119E | Radiator grille protector | 53119-20120 |
| 53145D | Radiator grille clip | 53145-33010 |
| 53395E | Engine cover to front end plate seal | 53395-33010 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 81481E | Right fog light cover | 81481-33010 |
| 81482C | Left fog light cover | 81482-33010 |
