Toyota CAMRY Front Axle Hub — Figure 4303

Toyota CAMRY EPC diagram 4303, Front Axle Hub, with 1 images and 13 PNC and OE references.

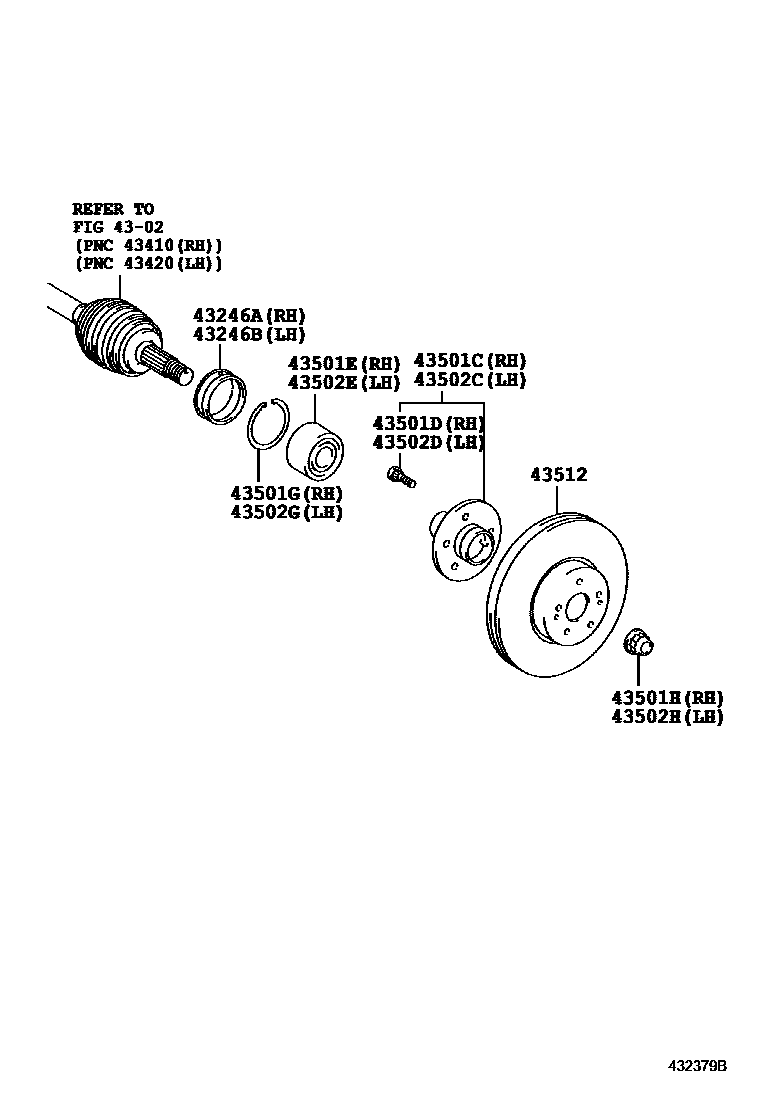

Toyota CAMRY Front Axle Hub EPC diagram — 432379B
Front Axle Hub — 432379B (200603 – 999999)

PNC and OE references

PNCPart nameOE numbers
43246ANo. 1 right front wheel bearing dust cover43246-28020
43246BNo. 1 left front wheel bearing dust cover43246-28020
43501CRight front axle hub sub-assembly43502-28090
43501DHub bolt (for right front axle)90942-02049
43501EBearing (for right front axle hub)90369-45003
43501GHole snap ring (for right front axle hub)90520-77001
43501HNut (for front axle right half shaft)90177-22001
43502CLeft front axle wheel hub sub-assembly43502-28090
43502DHub bolt (for left front axle)90942-02049
43502EBearing (for left front axle hub)90369-45003
43502GHole snap ring (for left front axle hub)90520-77001
43502HNut (for front axle left half shaft)90177-22001
43512front brake disc43512-33130 · 43512-33140
