Toyota CAMRY 车轮和车轮盖 — Figure 4103

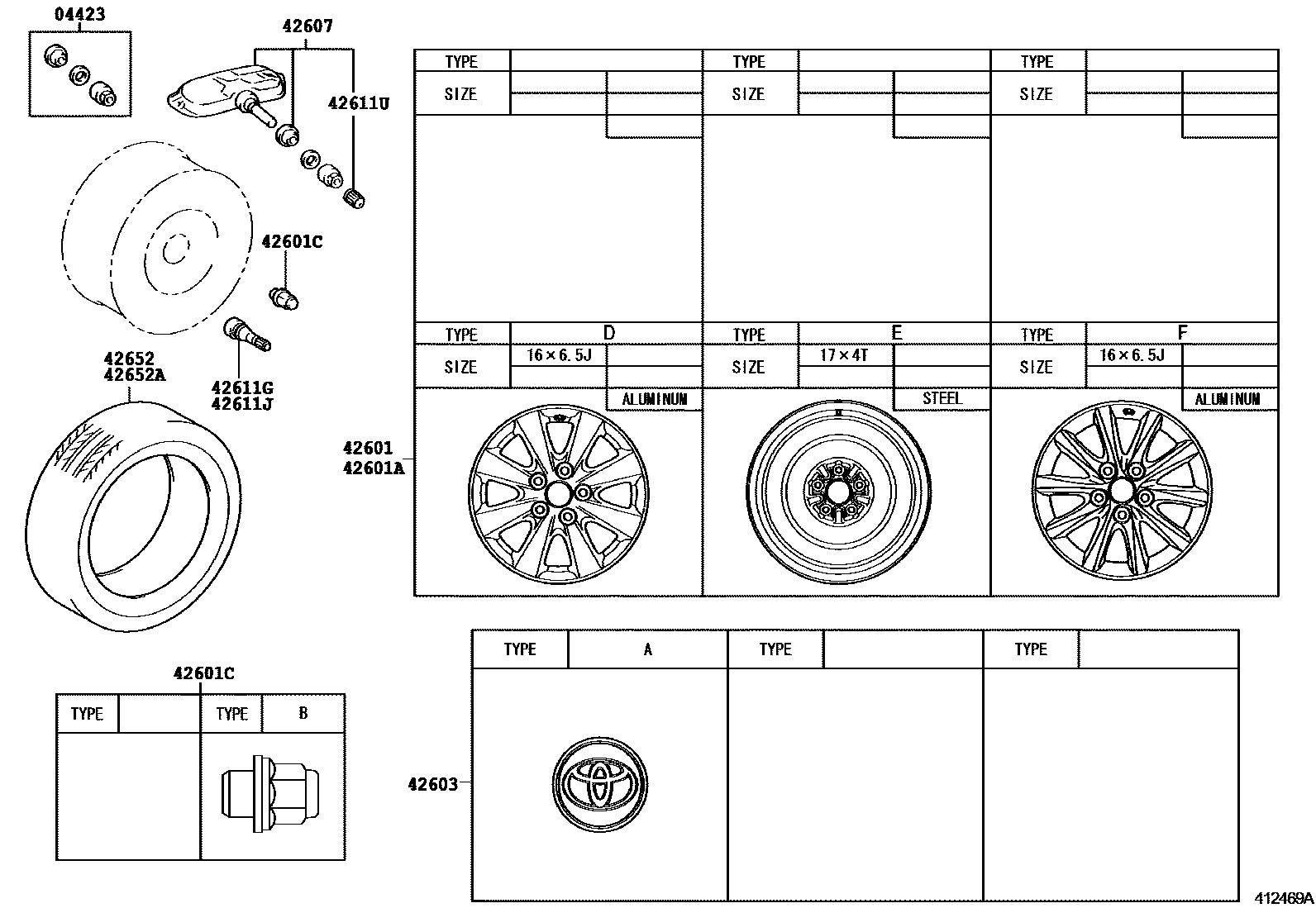

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33030 |
| 42601 | spoke wheel | 42611-33531 · 4261A-33040 |
| 42601A | Spoke wheel (for spare tire) | 42611-33510 |
| 42601C | Hub nut (for axle) | 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-44070 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-33011 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42652 | tires | 42652-06680 · 42652-06730 |
| 42652A | Tire (for Spare Wheel) | 42652-30C00 · 42652-58050 · 42652-58060 |
