Toyota CAMRY HV或FCV传动桥总成 — Figure 3901

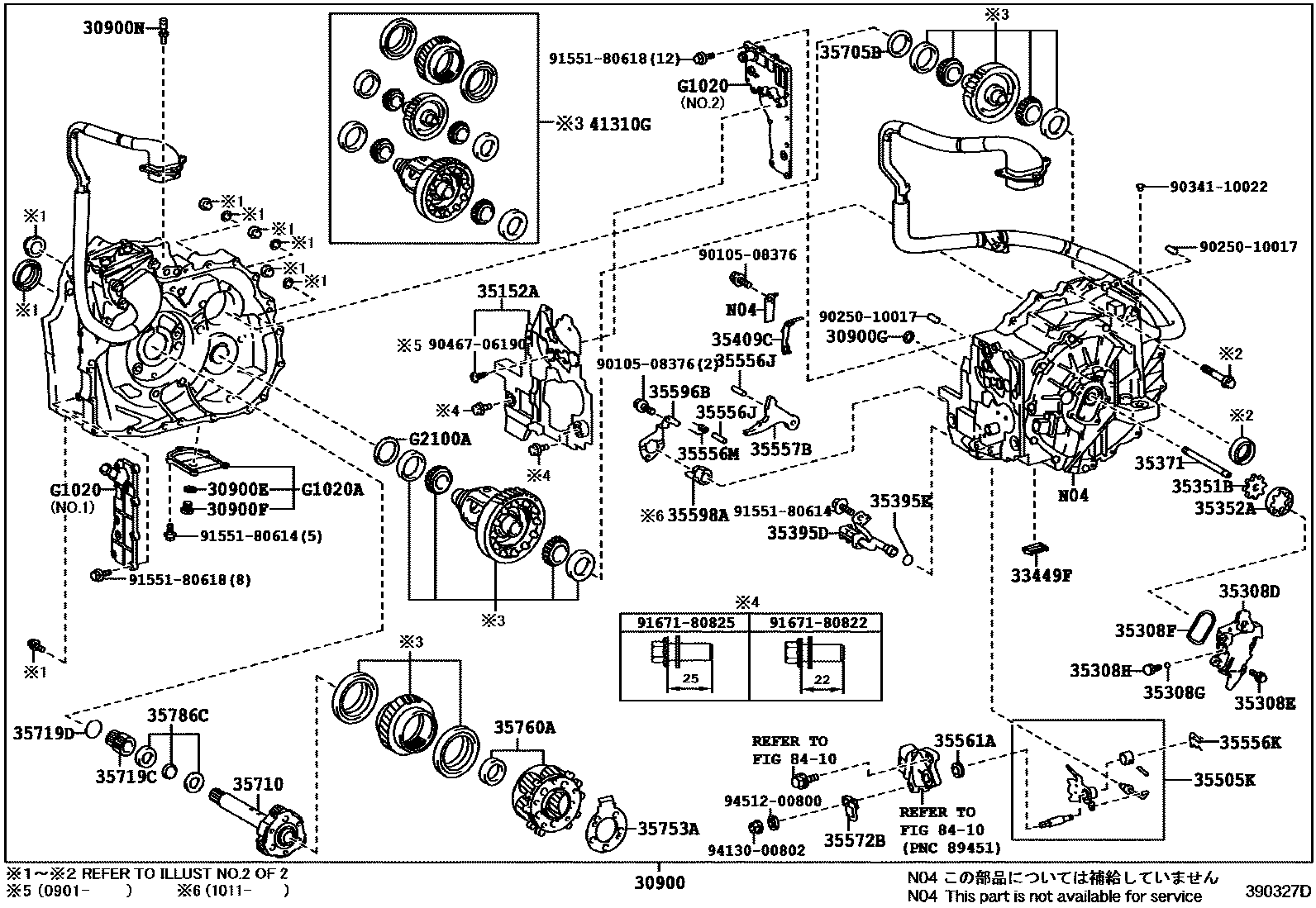

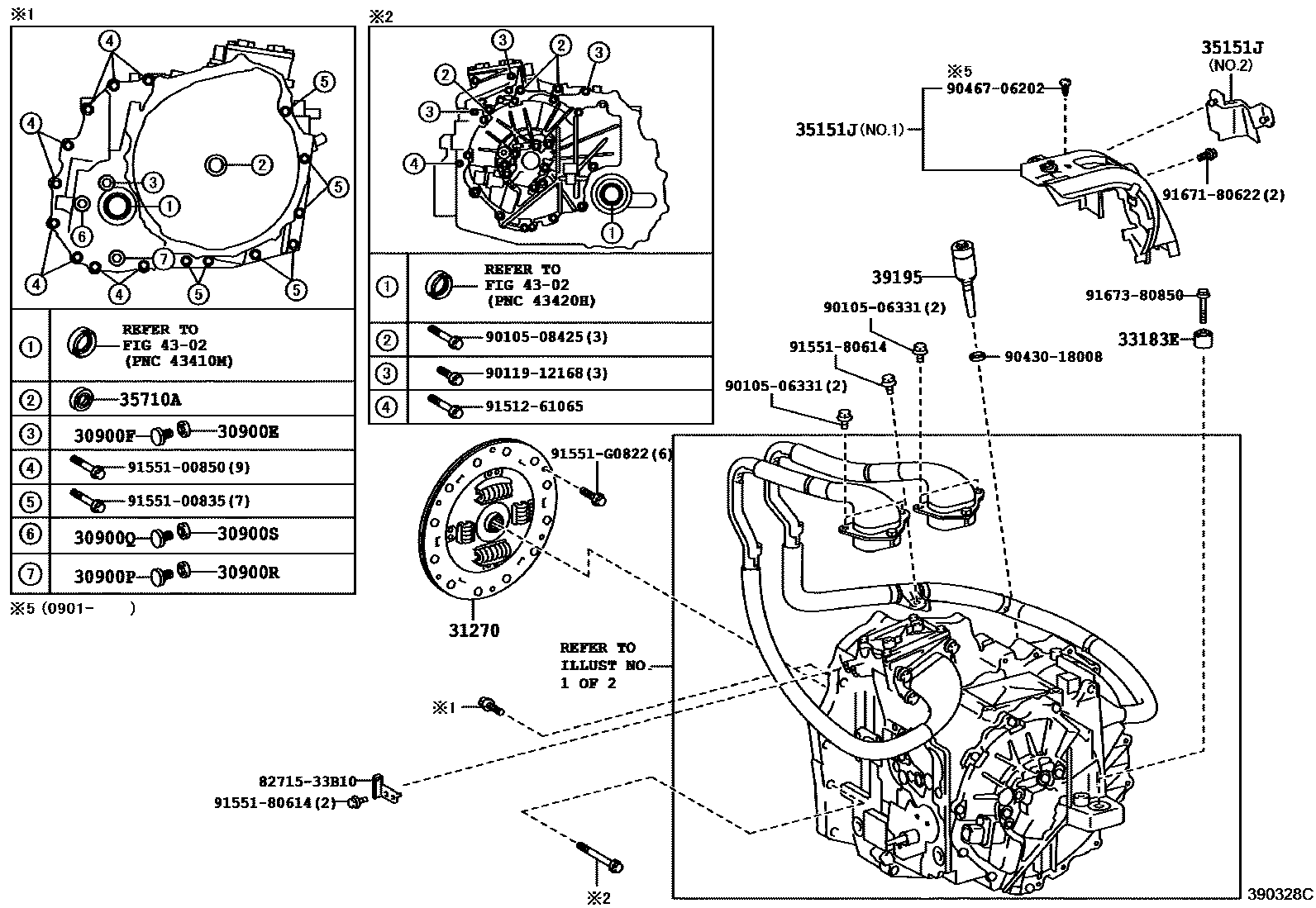

Toyota CAMRY EPC diagram 3901, HV或FCV传动桥总成, with 2 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-33010 · 30900-33011 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900F | No. 2 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 |
| 30900G | Gasket No. 2 (for transaxle housing and transaxle housing) | 35145-48010 |
| 30900N | Breather plug (for transaxle) | 90930-03179 |
| 30900P | BOUCHON, VIDANGE(HEV) | 90341-18016 |
| 30900Q | BOUCHON, REMPLISSAGE(HEV) | 90341-18016 |
| 30900R | JOINT ETANCHEITE, BOUCHON VIDANGE(HEV) | 90430-18008 |
| 30900S | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-33010 |
| 33183E | dynamic damper | 33183-33040 |
| 33449F | No. 1 transmission magnet | 33449-12020 |
| 35151J | automatic transmission cover | 35151-33080 · 35151-33090 |
| 35152A | No. 2 automatic transmission cover | 35151-33100 |
| 35308D | Transmission oil pump cover sub-assembly | 35308-33010 · 35308-33011 |
| 35308E | Bolt with washer (for transmission oil pump cover) | 90105-06300 |
| 35308F | No. 1 O-ring (for transmission oil pump cover) | 90903-01009 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35351B | Transaxle oil pump active rotor | 35351-47030 |
| 35352A | Transmission oil pump driven rotor | 35352-47020 |
| 35371 | oil pump drive shaft | 35371-33050 · 35371-33060 |
| 35395D | Transmission oil filter | 35395-33010 · 35395-48010 |
| 35395E | O-ring (for transmission axle oil filter) | 90301-11019 |
| 35409C | Manual lock spring sub-assembly | 35409-48011 · 35409-48030 |
| 35505K | SS-ENS. LEVIER, STATIONNEMENT,NO.1 | 35505-49005 |
| 35556J | ARBRE, ARRETOIR DE MECANISME DE STATIONNEMENT | 35556-48010 |
| 35556K | RESSORT, ARRETOIR | 90524-09001 |
| 35556M | RESSORT, TORSION | 90949-03134 |
| 35557B | ARRETOIR, STATIONNEMENT | 35557-33030 · 35557-48010 |
| 35561A | T-type oil seal (for parking lock axle) | 90311-12002 |
| 35572B | Transmission outer lever | 35572-33030 |
| 35596B | PLAQUE, ARRET D'ARRETOIR | 35596-48010 |
| 35598A | MANCHON, MECANISME DE STATIONNEMENT | 35598-47020 |
| 35705B | Spacer (for countershaft driven gear) | 90564-60100 · 90564-60101 · 90564-60102 · 90564-60103 · 90564-60104 · 90564-60105 · 90564-60106 · 90564-60107 · 90564-60108 · 90564-60109 · 90564-60110 · 90564-60111 · 90564-60112 · 90564-60113 · 90564-60114 · 90564-60115 · 90564-60116 · 90564-60117 · 90564-60118 · 90564-60119 · 90564-60120 · 90564-60121 · 90564-60122 · 90564-60123 · 90564-60124 · 90564-60125 · 90564-60126 · 90564-60127 · 90564-60128 · 90564-60129 · 90564-60130 · 90564-60131 · 90564-60132 · 90564-60133 · 90564-60134 · 90564-60135 · 90564-60136 · 90564-60137 · 90564-60138 · 90564-60139 · 90564-60140 · 90564-60141 · 90564-60142 · 90564-60143 · 90564-60144 · 90564-60145 · 90564-60146 · 90564-60147 · 90564-60148 · 90564-60149 · 90564-60150 · 90564-60151 · 90564-60152 · 90564-60153 · 90564-63001 · 90564-63002 · 90564-63003 · 90564-63004 · 90564-63005 · 90564-63006 · 90564-63007 · 90564-63008 · 90564-63009 · 90564-63010 · 90564-63011 · 90564-63012 · 90564-63013 · 90564-63014 · 90564-63015 · 90564-63016 · 90564-63017 · 90564-63018 · 90564-63019 · 90564-63020 · 90564-63021 · 90564-63022 · 90564-63023 · 90564-63024 · 90564-63025 · 90564-63026 · 90564-63027 · 90564-63028 · 90564-63029 · 90564-63030 · 90564-63031 · 90564-63032 · 90564-63033 · 90564-63034 · 90564-63035 · 90564-63036 · 90564-63037 · 90564-63038 · 90564-63039 · 90564-63040 · 90564-63041 · 90564-63042 · 90564-63043 · 90564-63044 · 90564-63045 · 90564-63046 · 90564-63047 · 90564-63048 · 90564-63049 · 90564-63050 · 90564-63051 · 90564-63052 · 90564-63053 · 90564-63054 |
| 35710 | Input shaft assembly | 35710-33030 · 35710-33040 |
| 35710A | T-type oil seal (for input shaft) | 90311-25027 |
| 35719C | planetary gear system sun gear | 35719-48010 |
| 35719D | Snap ring (for planetary gear train sun gear) | 90520-37017 · 90520-37018 · 90520-37019 · 90520-37020 · 90520-37021 · 90520-37022 · 90520-37023 · 90520-37024 · 90520-37025 · 90520-37026 · 90520-37027 · 90520-37028 · 90520-37029 · 90520-37030 · 90520-37031 · 90520-37033 · 90520-37034 · 90520-37035 · 90520-37036 · 90520-37037 · 90520-37038 · 90520-37039 · 90520-37040 · 90520-37041 · 90520-37042 · 90520-37043 · 90520-37044 · 90520-37045 · 90520-37046 |
| 35753A | RESERVOIR, HUILE PLANETAIRE | 35753-48021 |
| 35760A | No. 1 rear planetary gear assembly | 35760-48030 |
| 35786C | No. 1 thrust bearing race | 35786-49015 |
| 39195 | HV transaxle mass damper | 39195-33010 |
| 41310G | KIT D'ENGRENAGES, DIFFERENTIEL & PIGNON RECEPTEUR | 41310-33901 |
| G1020 | No. 1 motor water jacket cover assembly | G1020-33010 · G1020-48040 |
| G1020A | No. 2 motor water jacket cover assembly | G1020-48030 |
| G2100A | Gasket (for right side of differential case) | 90564-74001 · 90564-74002 · 90564-74003 · 90564-74004 · 90564-74005 · 90564-74006 · 90564-74007 · 90564-74008 · 90564-74009 · 90564-74010 · 90564-74011 · 90564-74012 · 90564-74013 · 90564-74014 · 90564-74015 · 90564-74016 · 90564-74017 · 90564-74018 · 90564-74019 · 90564-74020 · 90564-74021 · 90564-74022 · 90564-74023 · 90564-74024 · 90564-74025 · 90564-74026 · 90564-74027 · 90564-74028 · 90564-74029 · 90564-74030 · 90564-74031 · 90564-74032 · 90564-74033 · 90564-74034 · 90564-74035 · 90564-74036 · 90564-74037 · 90564-74038 · 90564-74039 · 90564-74040 · 90564-74041 · 90564-74042 · 90564-74043 · 90564-74044 |
